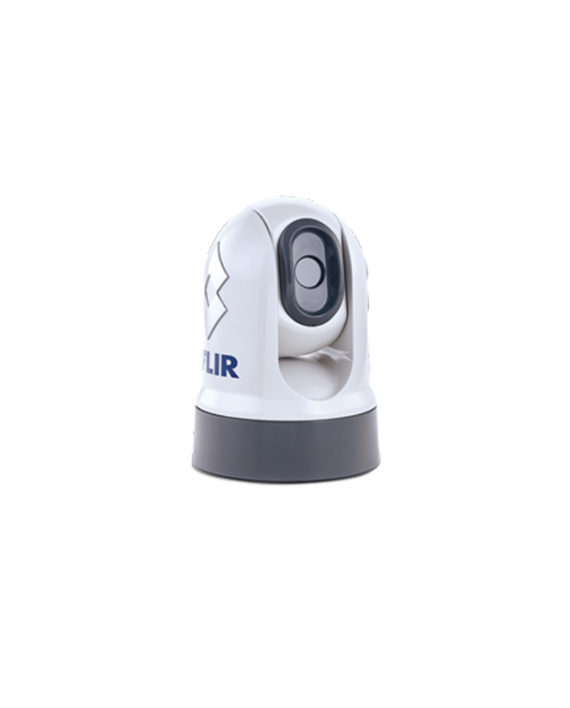

M300C Stabilized Pan & Tilt Visible IP Camera with 30X Optical Zoom

€6,495.00 ex. VAT 19%

Combining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to monitor targets or hazards over long distances continuously. Exceptional low light performance from the M300C gives captains enhanced awareness once the sun dips below the horizon.



THE NEW STANDARD
When danger lies between swells or on the horizon, FLIR helps first responders, commercial mariners, and serious boaters achieve a new level of awareness on the water. FLIR is committed to driving innovation of thermal imaging and sensing technologies, further establishing the quality and availability of advanced vision systems. The M300 Series sets a new standard for safe marine navigation and situational awareness.

HIGH DEFINITION NAVIGATION
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.

• Better than binoculars, the M300C with 30x optical zoom and image stabilization delivers superior long-range imaging and positive             target identification
• Ultra-low light camera technology provides visible imagery in the most challenging lighting conditions
• Overlay AIS targets, chart objects, and waypoints in real time when combined with Raymarine Axiom and award-winning ClearCruise™     augmented reality technology

A STEADY VIEW IN ROUGH SEAS
Stable viewing in heavy seas keeps eyes on-target.

• Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw
• Electronic stabilization minimizes low frequency rumble and vibration
• Integrated AHRS (Attitude Heading Reference Sensor)
• Horizontal stabilization automatically keeps the camera on scene as you maneuver

SEAMLESS INTEGRATION
Exceptional connectivity with navigation and security systems.

• Optional joystick control unit and integration with multifunction navigation displays
• ONVIF-compliant for PTZ security camera functionality
• H.264 IP video stream and HD-SDI lossless digital video interface
• Composite analog video (SD) for integration into legacy displays

Ordering Information

FLIR M300 Series

Part No. Description Price ex. VAT 19%
E70605 M300C Stabilized Pan & Tilt Visible IP Camera with 30X Optical Zoom € 6.495,00

Specifications



Main Visible Camera
MODEL M300C
Detector Type High Definition up to 1080/30p
Minimum Illumination 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high
sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter
1/4s, high sensitivity on)
Zoom 30× Optical Zoom
E-Zoom 12x
Focal Length 129 mm to 4.3 mm
Field of View Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
System Specifications
Gyro Stabilized Yes
ClearCruise AR Yes, with Raymarine Axiom
Pan/Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt
Analog Video Output NTSC
Analog Video Connector Types BNC
Network Video Output Single H.264 IP Network Video Stream
HD-SDI Lossless Video Output Yes
Power Requirements 12 to 24 VDC
Power Consumption 41 W typical, 56 W typical (with heaters on.) Note: FLIR
recommends using a 75 W power supply
Environmental
Operating Temperature Range -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range -30°F to +158°F (-30°C to +70°C)
Automatic Window Defrost Standard at Power-Up
Sand/Dust Ingress Mil-Std-810E or IP6X
Water Ingress IPX6 (heavy seas, power jets of water)
Shock 15g vertical, 9g horizontal
Vibration IEC60945
Lightning Protection Standard
Salt Mist IEC60945
Wind 100 knots (115.2 MPH)
EMI IEC60945
Physical
Weight 6.3 kg (13.9 lb ) without mounting riser; 6.75 kg (14.9 lb)
with mounting riser
Size Camera: Base diameter: 222.2 mm (8.7 in.) Height: 328.3mm (12.9 in.) Camera attached to mounting riser: Base diameter (with seal): 254.0 mm (10.0 in.) Height: 365.5mm (14.4 in.)
