CAM220 Eyeball CCTV Day and Night Video Camera (IP Connected)

€575.00 ex. VAT 19%

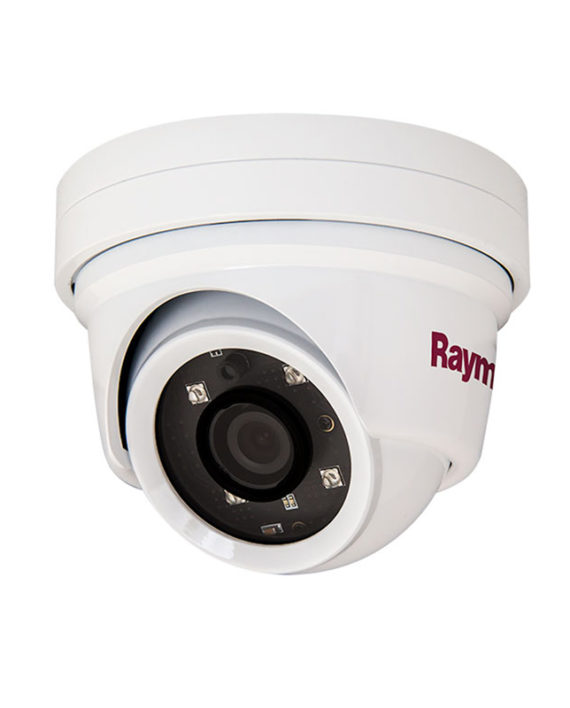

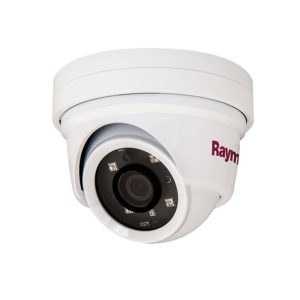

NEW CAM220
Day & Night Marine Camera
Ruggedised, High Definition, Day and Night network dome video camera suitable for above or below deck applications. Dome design provides all round selected viability whilst the small frame size allows rapid installation. Stylised to blend in with your boat’s aesthetic design.

Video Output: IP

Raymarine Visible Light Marine Cameras

Visible light marine cameras offer an affordable marine CCTV solution. They perform well across a variety of lighting conditions and manage motion well. Simply plug and play with any compatible Raymarine multifunction display (analogue cameras require a BNC composite video input connector) to create your onboard video observation system.

Key Features
• Plug and play integration with Raymarine MFDs running Lighthouse II
• Power over Ethernet (PoE) or direct 12v DC power supply
• Simple mechanical frame allows the camera to be locked, rock steady, into position
• High bright IR LEDs for operation in total darkness

Ordering Information

CAM220 Eyeball CCTV Day and Night Video Camera (IP Connected)

Part No. Description Price ex. VAT 19%
E70347 CAM220 Eyeball CCTV Day and Night Video Camera (IP Connected) € 575.00

Specifications



General specifications
Description CAM220 IP Camera
System
CPU 32-bit ARM9 RISC CPU up to 432MHz
Flash / SDRAM 128MB / 128MB
Camera
Image Sensor 2.0 Megapixel 1/2.8″ SONY progressive scan CMOS(Exmor)
Total Pixels 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels 1944(H) x 1104(V) 2.15 Megapixel
S/N Ratio More than 50dB
Minimum Illumination 0Lux (IR On)
IR Distance 20m (4 Built-in High Power LED’s)
Day&Night ICR
Lens 3.6mm Wide angle Megapixel Board Lens
Field of view Horizontal = 93.0 deg +/- 3 deg | Vertical = 51.0 deg +/- 3 deg
Video
Video Compression H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps
Resolution Up to 1920 x 1080 (Full HD)
Frame Rate H.264 Up to 30fps with 1920×1080 | MJPEG Up to 30fps with VGA resolution
Video Streaming Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
Image Setting Day & Night | Auto White Balance | Shutter Speed (1/4~1/2,000) | DSS | BLC | Brightness, Contrast, Sharpness, Mirror
System Integration
Security Password protection, User access log, HTTPS encryption
Supported Protocol HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video Motion detection up to 1920×1080 with 12×12 blocks
Physical
Power Source DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power Consumption Max. 5.4W with IR
Net Weight 230g (camera only)
LED’s Power, Network Connection
Dimensions 100mm(D) x 80mm(H)
General Operation Temperature -10 degree~50 degree Celsius(14F~122F)
Storage Temperature -20 degree~60 degree Celsius(-4F~140F)
