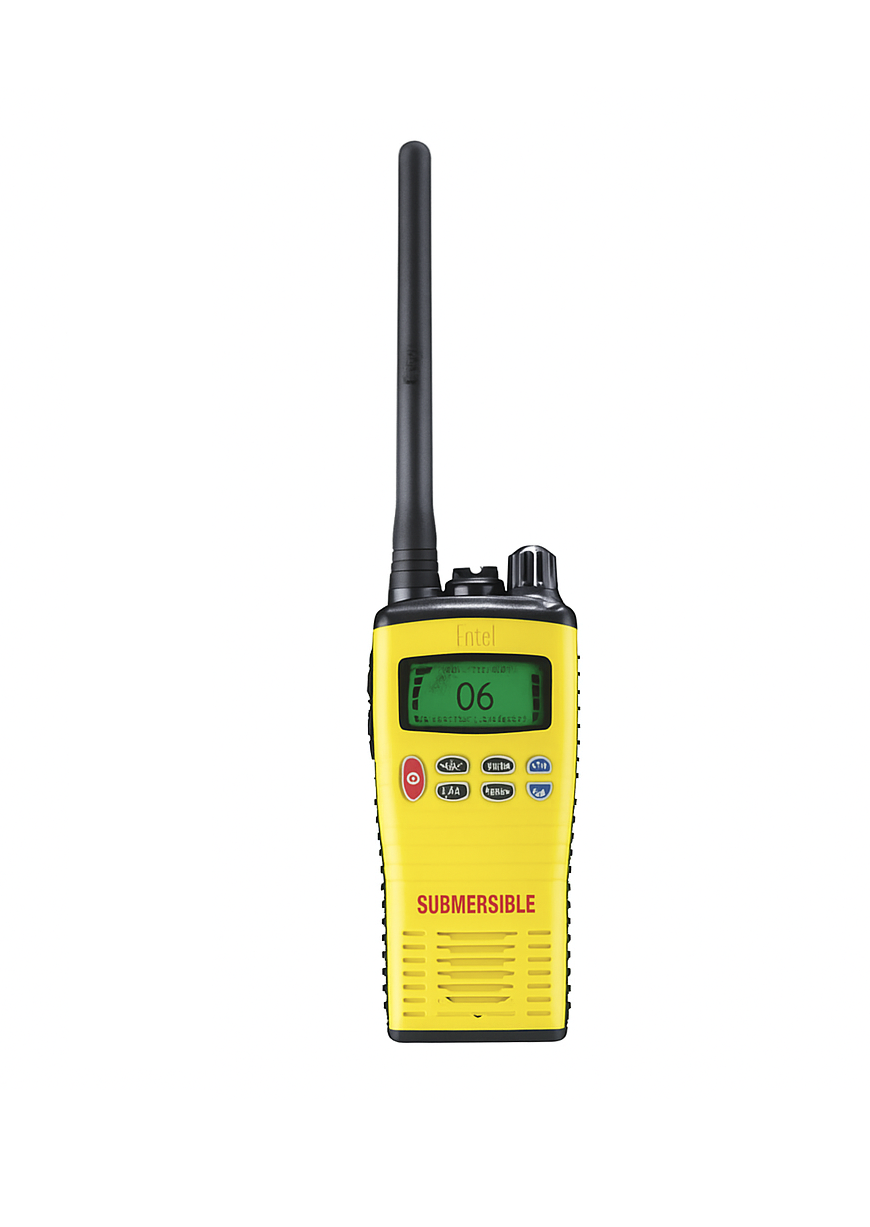

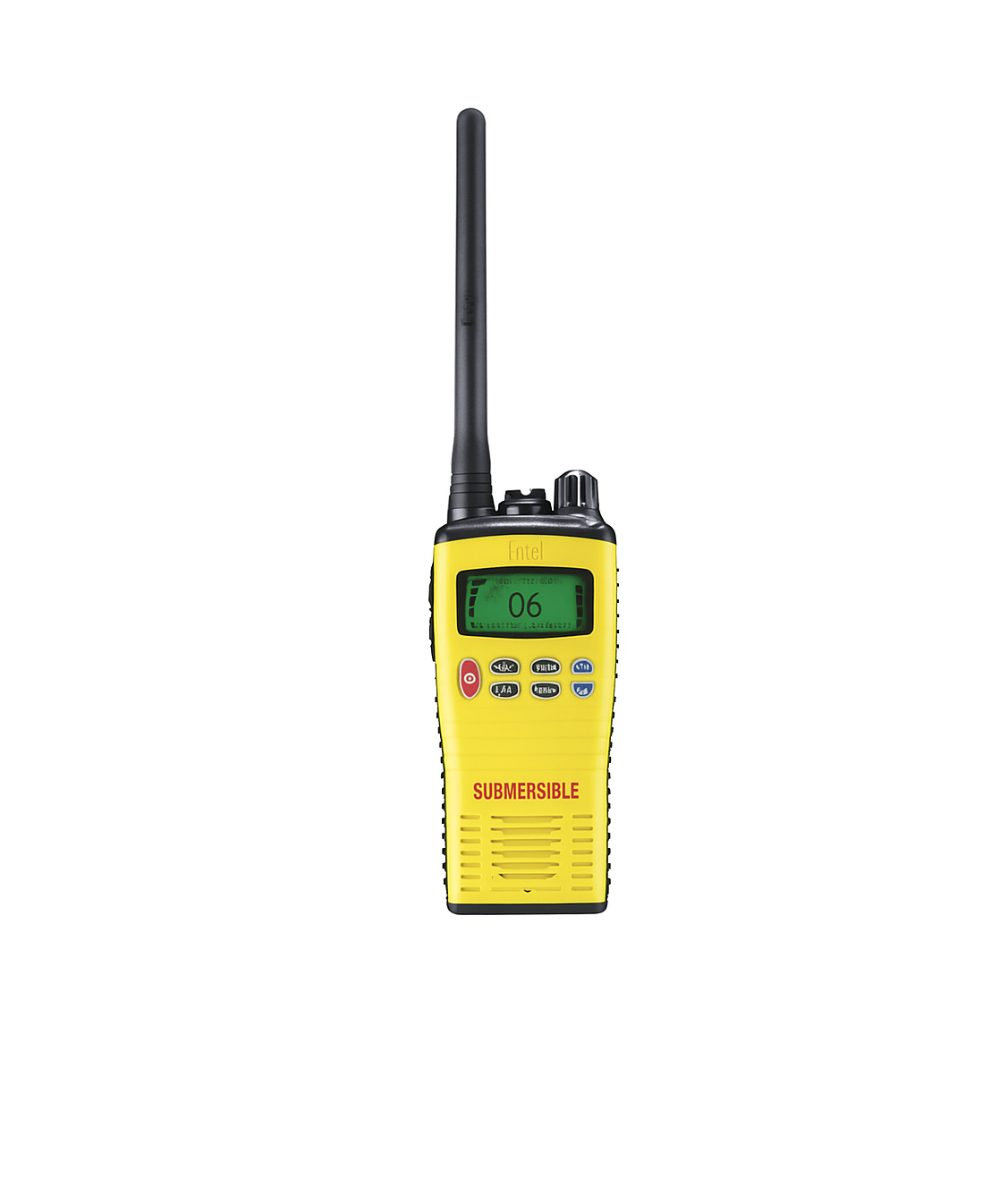

HT649 ENTEL – SUBMERSIBLE MARINE VHF GMDSS TRANSCEIVER WITH DISPLAY

535.00650.00 ex. VAT 19%

The HT649 GMDSS is MED certified and carries the essential Wheel Mark logo. For those requiring a, no compromise, fully featured GMDSS portable with high visibility back-lit LCD, the HT649 GMDSS will exceed the expectations of even the most experienced radio user.

The first time you handle Entel’s HT649 GMDSS Series 2.0 portable you will be impressed by its superior build quality. From the rugged ergonomic design that fits comfortably in your hand, to the exceptionally loud audio, the HT649 GMDSS Series 2 portable easily outclasses the competition.

The HT649 GMDSS Series 2 portable is built to MIL-STD 810C/D/E/F for tough enduring performance, is fully Submersible to IP68 (2 meters depth for 4 hours) and is available in two packages:

HT649 P1 –  Package of radio & Primary one-shot emergency battery
HT649 P2 –  Package of radio with Primary one-shot emergency battery, secondary Li-Ion rechargeable battery & charger

Clear

HT649

General

Environmental protection to IP68 (2 Meters for 4 hours)

The practical HT649 Series 2.0 GMDSS portable enjoys an IP68 (2 Meters for 4 hours) rated construction, which means that it is dust protected and fully Submersible.

MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel’s HT649 Series 2.0 GMDSS portable conforms to stringent standards, enabling it to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.

Primary Lithium one-shot Emergency battery
The HT649 Series 2.0 GMDSS portable is supplied with a Lithium battery as standard. With a 5-year shelf life you are assured of a full charge as and when you need to use Entel’s Primary Emergency battery.

2000mAh Secondary Li-Ion re-chargeable battery
Optionally the HT649 Series 2.0 GMDSS portable can also be supplied with the latest intelligent Lithium-Ion Secondary battery. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.

Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.

Channels
The HT649 portable provides all INT, USA & CAN Marine channels.

Convenience

Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.

VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your HT649 portable can operate totally hands free. All you need to do is talk and the HT649 portable will automatically transmit for you.

Scan
The HT649 Series portable has the facility to scan for an active channel. When the channel is found, the radio will automatically select the channel for you.

Ordering Information

HT649 Entel GMDSS Radio (P2)

Part No. Description Price ex. VAT 19%
HT649 P1 Package 1 – HT649 SUBMERSIBLE MARINE VHF GMDSS TRANSCEIVER WITH DISPLAY € 535.00
HT649 P2 Package 2 – HT649 GMDSS LCD VHF TRANSCEIVER WITH PRIMARY BATTERY, SECONDARY BATTERY AND TRICKLE CHARGER CCAHT-230/ED, CAT40 € 650.00

Specifications



General specifications
Frequency Range 156 – 163.275MHz
Channels 19 international, USA & CAN Marine Channels
Channel Spacing 25 kHz
Communication Method Simplex / semi duplex
Antenna Impedance 50 ohm
Antenna Whip / stubby
Battery type Primary – Lithium
Secondary – 2000 mAh Li-Ion
Power Supply Voltage 7.4V DC
Current Drain (nominal) 40mA
Primary Duty Cycle (10/10/80) Secondary Duty Cycle (5/5/90) > 8 Hours
14.5 hours
Microphone Internal condenser microphone
Operating Temperature -20° to +55°C
Construction MIL-STD 810C/D/E/F
IP Rating IP68 (2 meters depth for 4 hours)
Size (mm) 59.5(W) x 130(H) x 37(D)
Weight 277g with battery and aerial
Transmitter
Power Output 1.3W
Modulation 8K0G3E/16K0G3E
Oscillator Method PLL
Frequency Stability 2.5PPM
Maximum Deviation ±5 kHz
Audio Distortion < 5% (1 kHz 60%)
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver
Receiver Type Double Super Heterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability 2.5PPM
Spurious Rejection -60 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
Distortion < 5% (1 kHz 60%)
Hum & Noise -40 dB
Audio Output 1W
