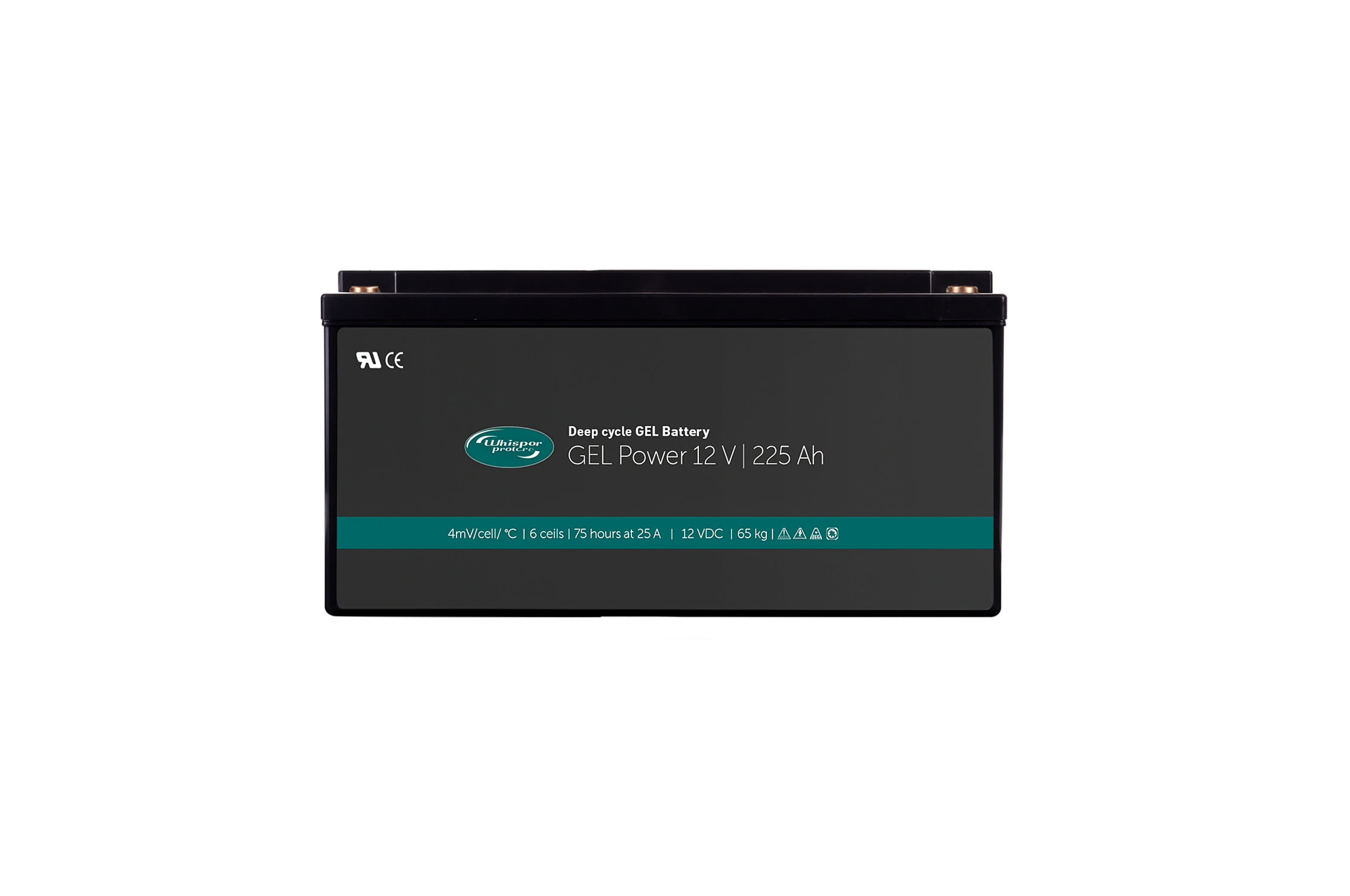

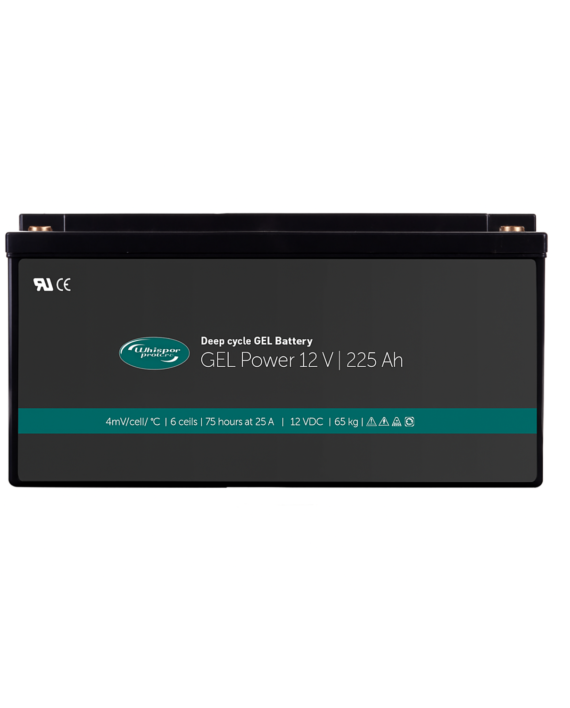

GEL-Power 12V Deep Cycle 100 Ah – 225 Ah

413.00920.00 ex. VAT 19%

In a WhisperPower system the battery has a central role: it is the energy tank, dictating when power sources (battery charging devices) should start to refill “the tank”. The selection of the right battery capacity and technology determines the functionality and durability of such systems. WhisperPower has been a supplier of premium batteries for over the past 20 years.

Clear

Batteries

Power storage – batteries as “energy storage”

What all Whisper Power batteries have in common:

• They are all sealed and maintenance free
• They are safe – no danger of electrolyte spill or gassing
• They can be installed at different angles
• They are non-hazardous and can be transported in airplanes
• They are shockproof, if the battery is damaged no liquid will come out
• They are designed for a large number of charge/ discharge cycles
• They are built to last for 5 – 10 years
• They are supplied through the WhisperPower network with appropriate charging devices
• Self discharge is limited, batteries can be stored for many months without charging
• Minor ventilation is needed in the location of instalment.

Ordering Information

GEL-Power 12V Deep Cycle

40290070 Gel-Power 12V 100Ah Deep Cycle € 413,00
40290071 Gel-Power 12V 145Ah Deep Cycle € 590,00
40290072 Gel-Power 12V 180Ah Deep Cycle € 756,00
40290073 Gel-Power 12V 225Ah Deep Cycle € 920,00

Specifications

CHARGE / DISCHARGE PARAMETERS
Constant voltage Charging (IU, float) 13.60 to 13.80 VDC @ 25C
Cyclic Charging ( IUU, absorption) 14.25 to 14.60 VDC @ 25 C
Recommended charging current limit (higher possible) 29.0 A
Temperature cut-off ratio 4mv/cell/°C
Discharge cut off voltage 100% depth of discharge d.o.d. 1.75 VDC @ (A) <= 0.2 C1.70 VDC @ 0.2 C (A) <= 1.0 C1.65 VDC @ (A) >= 1.0 C
