Chain counter panel QNC CHC – On-board mounting

504.00 ex. VAT 19%

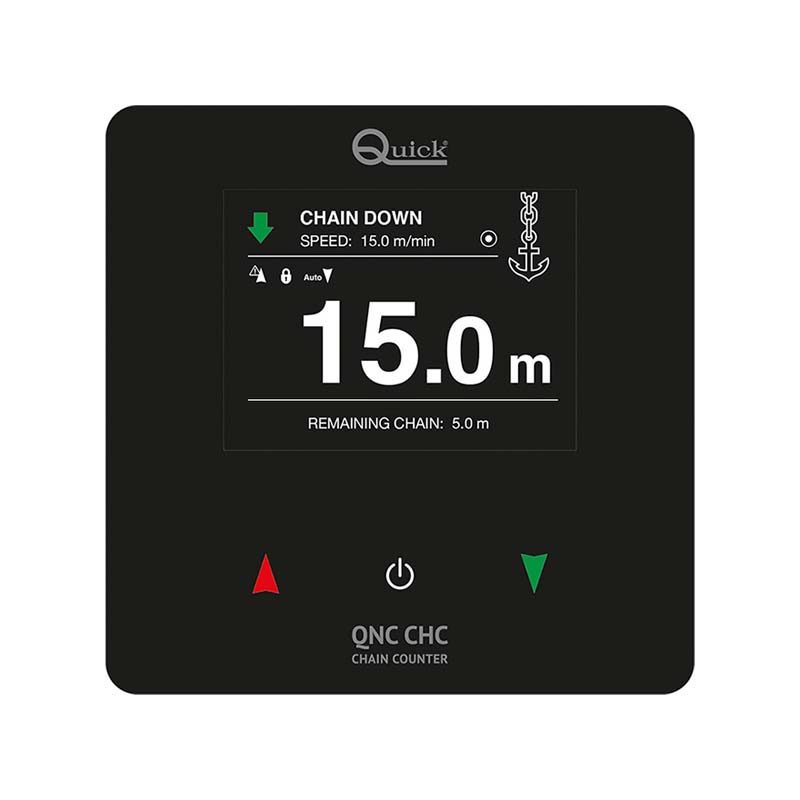

QNC CHC is a complete and reliable tool to remotely operate the windlass and check the length of the lowered chain by means of the colour graphic display.
The panel surface is completely black tempered glass.

General characteristics

  • Automatic descent function
  • Up alarm function
  • Anchor weighing function in case of sensor failure.
  • Windlass management with auto free fall.

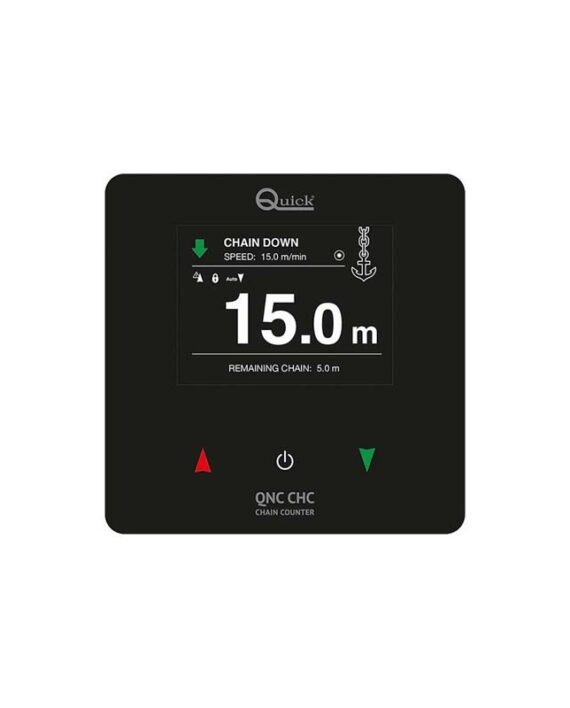

  • Display of the lowered chain length, in meters, feet and fathom.
  • Glass front
  • Extremely thin profile
  • Capacitive keys
  • High brightness 3.5” color graphic display

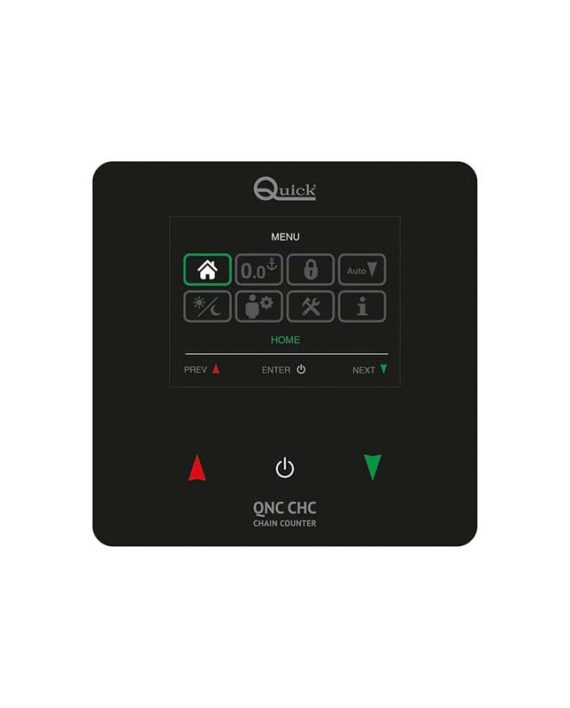

  • Multilingual user interface
  • Power supply 12/24 Vdc
  • Functioning over a wide range of environmental temperatures
  • Protection rating IP67
  • CAN bus Communication Interface

Ordering Information

Chain counter panel – On-board mounting ​

Part No. Description Price ex. VAT 19%
QNC_CHC Chain counter panel – 3.5″ high brightness colour graphic display € 504.00

Specifications

General specifications
Supply Voltage 12 ÷ 24 Vdc
Current absorbed when idling 160 mA
Operating temperature -20°C ÷ +70°C (-4°F ÷ +158°F)
Degree of protection IP67
