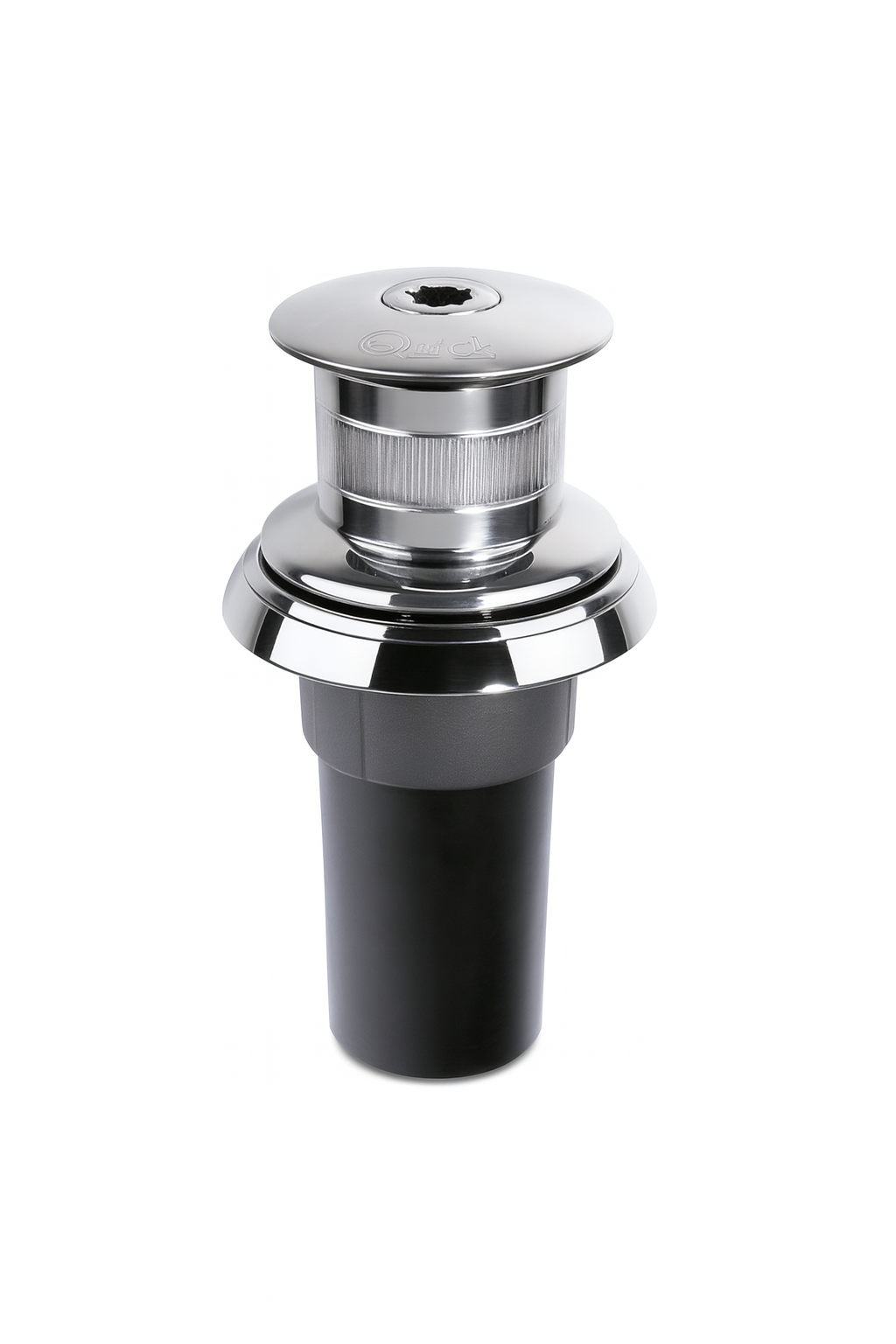

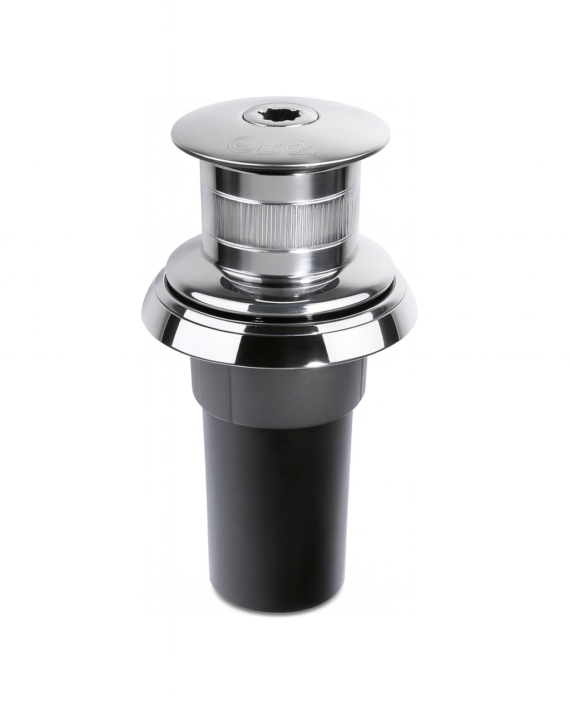

Totem TM3
• Warping Winches
• AISI Stainless steel 316 base
• Vertical watertight motor for easy and fast drop-in installation
• Anodized aluminium gearbox
Drum
Ø 130 mm / 5″ 1/8
TOTEM TM3 – 12/24V 800W for boats from 11 to 18 meters (36 – 59 ft)
€1,204.50–€1,212.00 ex. VAT 19%
The TM3 warping winch is equipped with an epicyclical gearbox, that provides much higher efficiency than the equivalent traditional gearboxes (40% compared to equivalent traditional gearboxes).
Ordering Information
TOTEM TM3 – 12/24V 800W for boats from 11 to 18 meters (36 – 59 ft)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| TM3 1000 | 800 W – 12 V – Drum Ø 130 mm | € 1,204.50 |
| TM3 1100 | 800 W – 24 V – Drum Ø 130 mm | € 1,212.00 |
Specifications
| General specifications | |
|---|---|
| Motor Power | 800 W |
| Motor Supply Voltage | 12 V |
| Maximum pull | 820Kg/1808lbs |
| Maximum working load | 290Kg/639lbs |
| Working load | 95 Kg / 209 lbs |
| Current absorption at working load (after an initial period of use) | 80 A |
| Maximum chain speed (measurements taken considering drum diameter) | 25,8 m/min 84.6 ft/min |
| Maximum chain speed at working load (measurements taken considering drum diameter) | 16,8 m/min 55.1 ft/min |
| Drum Ø | 130 mm 5” 1/8 |
| Weight | 8,1Kg/17.8 lbs |
