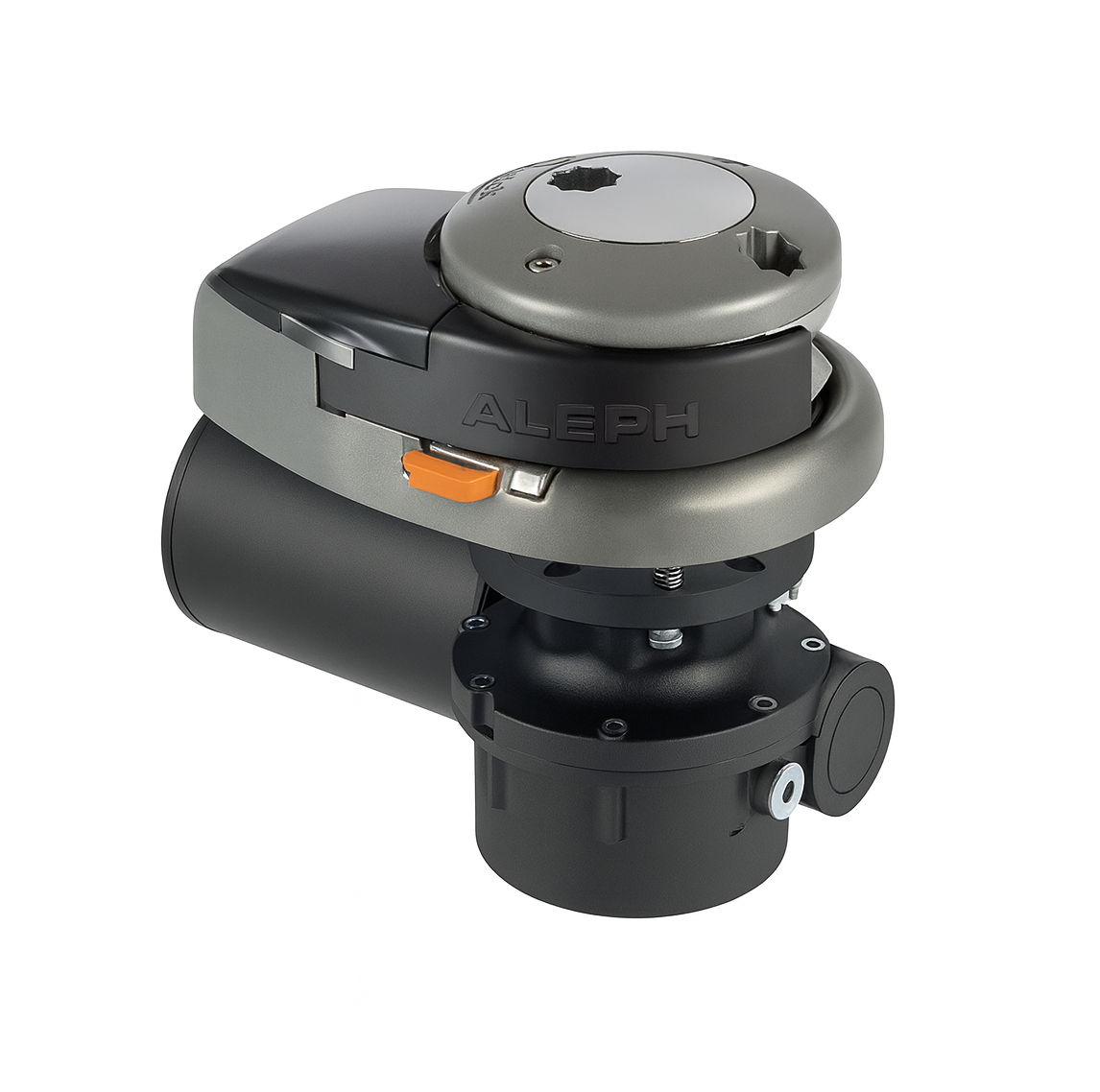

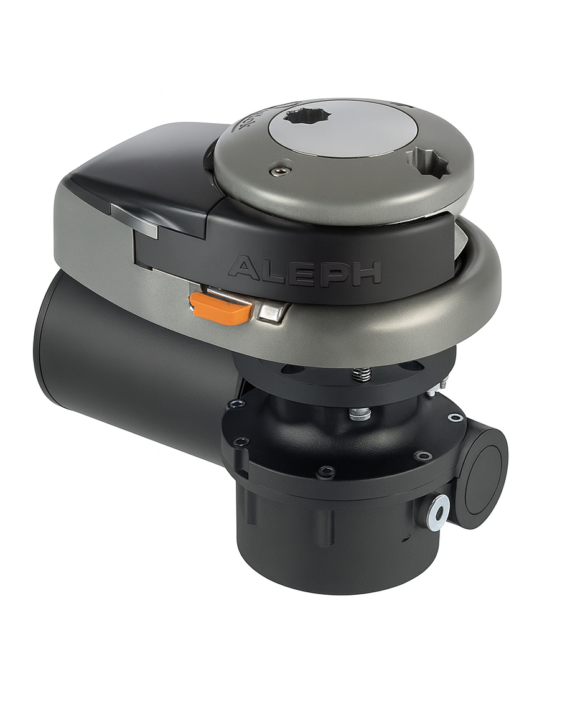

Aleph – AL3 12/24V for boats from 12 to 15 meters (39 – 49 ft)

€2,208.50–€2,407.00 ex. VAT 19%

Clear





  • Vertical windlasses
  • Base in anodized aluminium in hard oxide
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor
  • Anodized aluminium gearbox



Gypsy and Drum
Ø 130 mm / 5″1/8

Ordering Information

Aleph – AL3 12/24V for boats from 12 to 15 meters (39 – 49 ft)

Part No. .

Description

 Price ex. VAT 19%
AL3_1512

AL3 1512 WINDLASS 1500W 12V 08/10mm

€ 2,208.50
AL3_1524

AL3 1524 WINDLASS 1500W 24V 08/10mm

€ 2,267.00
AL3_1512D

AL3 1512D WINDLASS 1500W 12V 08/10mm D

€ 2,346.00
AL3_1524D

1AL3 1524D WINDLASS 1500W 24V 08/10mm D

€ 2,407.00



Specifications

General specifications
Models AL3 1500 AL3 1500 D
Motor Power 700 W 700 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 1100Kg/2425lbs 1100Kg/2425lbs
Maximum Working Load 470Kg/1036lbs 540Kg/1190lbs
Working Load 160Kg/353lbs 180Kg/397lbs
Current absorption at working load (after an initial period of use) 155 A 85 A
Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) 29,2 m/min
95.8 ft/min		 29,7 m/min
97.4 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) 16,3 m/min
53.5 ft/min		 19,0 m/min
62.3 ft/min
Weight (without drum) 20,8 Kg / 45.9 lb 20,8 Kg / 45.9 lb
Weight (with drum) 22,2 Kg / 48.9 lb 22,2 Kg / 48.9 lb
