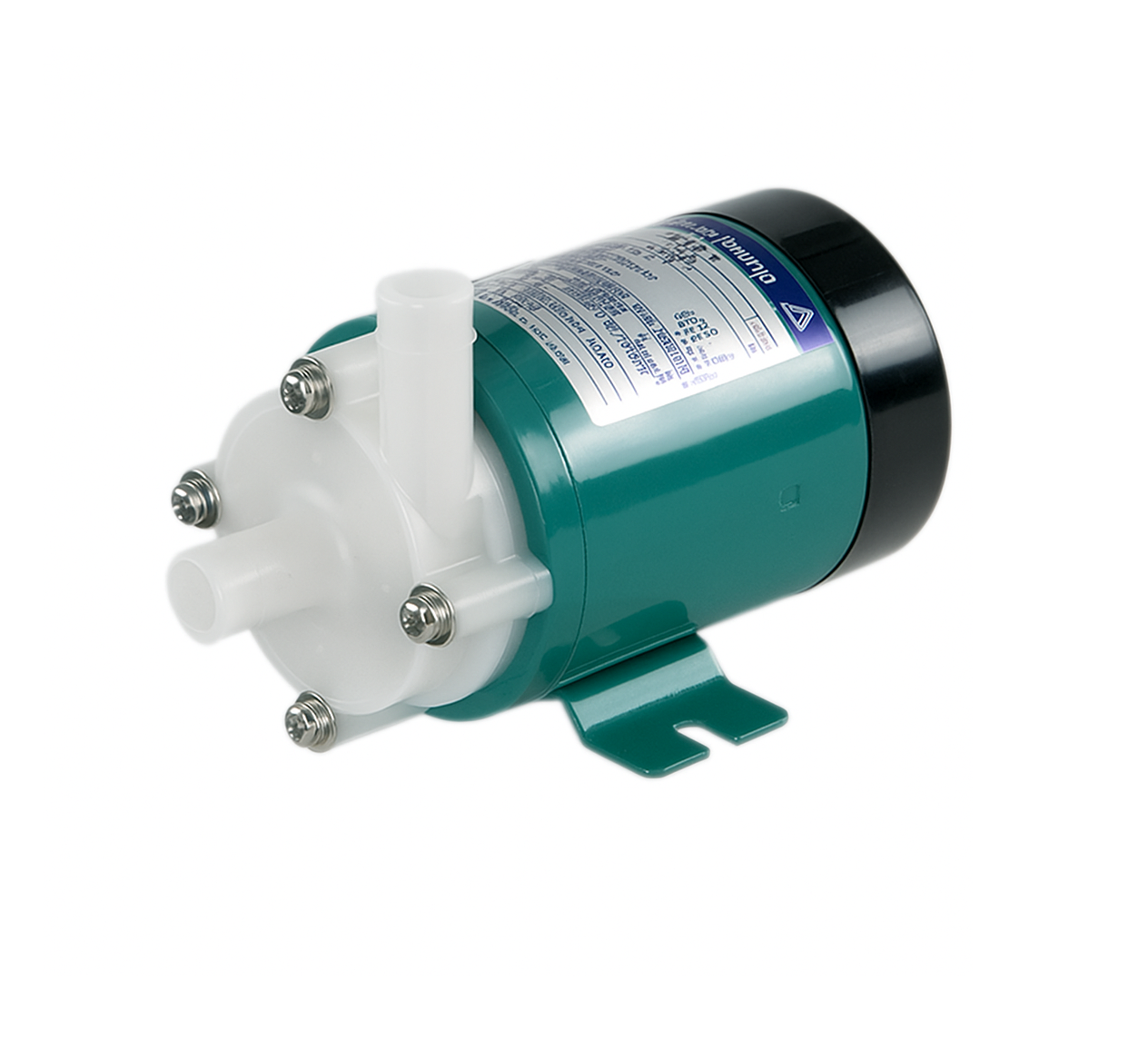

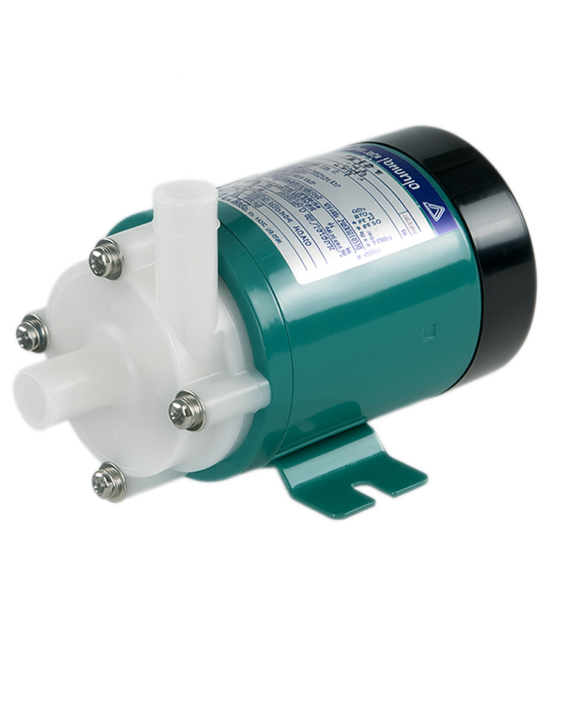

MAGNET PUMP WB350

279.00 ex. VAT 19%

Excellent performance and an extensive lineup of leading magnetic drive pump designs. Maximum flow range 350 L/min.

Magnet drive designs have become the standard for applications requiring corrosion resistant pumps. Our magnet drive pump designs offer a wide range of capabilities from compact OEM configurations to our large chemical process pump series. This broad range of magnet drive pump capabilities is unmatched in the industry making us the leader in magnet drive pump technology.

Magnetic drive pump features

  • Leak free, seal-less construction.
  • Simple, modular construction for yeas of maintenance.
  • Non-metallic chemically inert materials offer excellent resistance to corrosive fluids

Main applications

  • Surface treatment
  • Water treatment
  • Chemical processing
  • Food processing
  • Fluid handling needs in a variety of OEM equipment

Ordering Information

Air-Conditioning Accessories

In Stock Part No. Description Price ex. VAT 19%
1 ALM-AC-PUMP-01 MD20R-220N WB350 IWAKI Magnetic Pump (cap27//Min- H 3,1m- Ø 18 mm) €279,00

Specifications



General specifications
Model WB350
Dimensions
L x W x H
209 x 106 x 105 mm
Max output* 27 (l/m) / 7.1 (gpm)
Running power consumption
40W, 0.48amps (115V)
0.24amps (230V)
Connection in, out Ø18mm
Ø17mm
Weight
2Kg

* Effective water output varies with back pressure. Respect the pump curves on the next pages in order to ensure the minimum water flows required for your applications.
