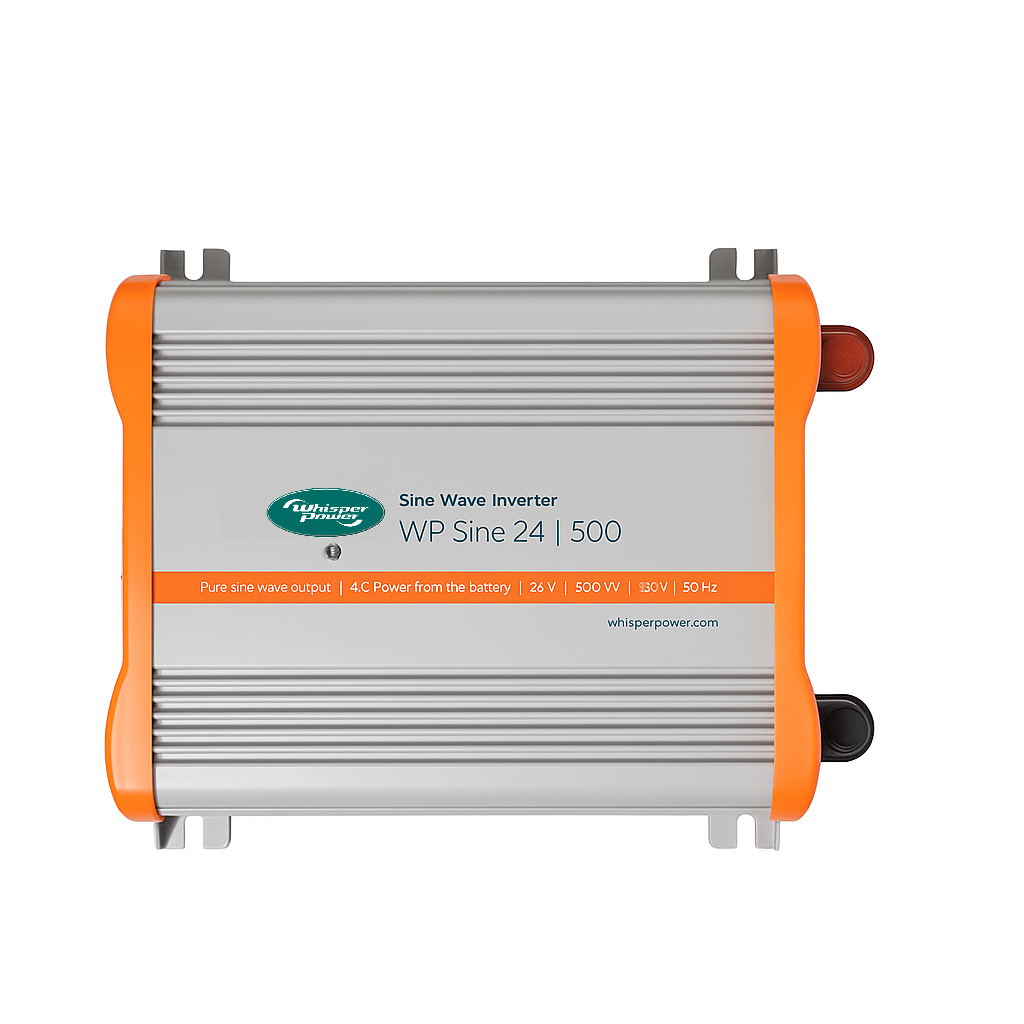

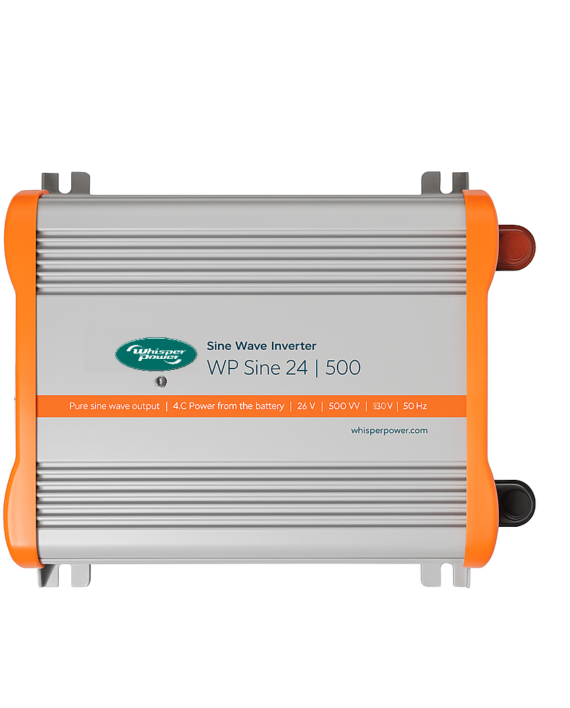

WP Sine Wave Inverter 24V / 500VA

237.00 ex. VAT 19%

Sine wave Inverters

WhisperPower’s sine wave inverters convert a 12 or 24 V battery voltage into high quality house hold electricity. Low power appliances such as vaccuum cleaners, computers, chargers for phones and tablets do not require a diesel or gasoline generator but can be operated by an inverter instead. On an inverter, any 230V / 50 Hz appliance can be used at any time, without the need of a running engine. WhisperPower inverters are often used in combination with DC BeltPower alternators, connected to the main engine.

WP-Sine series

AC Power from the battery without generator

The WP-Sine inverter opens up a world of opportunities as it enables the use of practical home appliances, such as coffee machines, microwaves and other kitchen equipment, to be used on board. WhisperPower’s sinewave inverters are completely silent ‘generators’, providing 230V/ 50Hz (120V/ 60Hz) from a battery. Modern inverters like the WP-Sine range are compact,light weight, efficient and robust.

Features

– Choice of 400, 1000 Watt or 2000 Watt models
– Can be connected to a 12 (24V) battery
– Plug and play: AC output socket (EU, UK, USA) and DC terminals
– Negligible power loss in conversion from battery to AC power
– USB connection at front to charge telephone etc. (no charger needed)
– Peak power capability of 200%
– Remote on/ off facility, built in LED display on front (DC and AC information)

Ordering Information

WP Sine Wave Inverter 24V / 500VA

61140500 WP Sine wave inverter 24V / 500VA  € 237,00



Specifications

General specifications
AC Output 1 x Schuko socket
Power (Continuous) 500 W
Power (Peak, 500 mSec) 800 W
Output voltage 230 V
Output frequency 50 Hz
Total harmonic distortion (THD) <3% true sine wave
DC Input
Nominal battery voltage 25 V
Operation Range 21 – 31V
Input current 40 A
No load consumption <0.5A
DC Output
5V USB 2.1A
Display
LED indicator no
Digital Display Input Voltage / Current, Output Power
Protections
Input Undervoltage Warning 22.4 V
Input Undervoltage Shutdown 21.0 V
Input Undervoltage Recovery 23.6 V
Input Overvoltage Shutdown 31.0 V
Output Power Warning Yes
Output Power Shutdown Yes
Output Short Circuit Yes
Temperature Warning Yes
Temperature Shutdown Yes
Conformity CE
Operating temperature range 0 – 40°C
Relative humidity in operation 5 – 90% non-condensing
Ventilation Forced cooling
Dimension hxwxl [mm] 82 x 175 x 200 mm
Weight 1.7kg
Battery Connection M6 studs
Ground Lug Connection M6 studs
