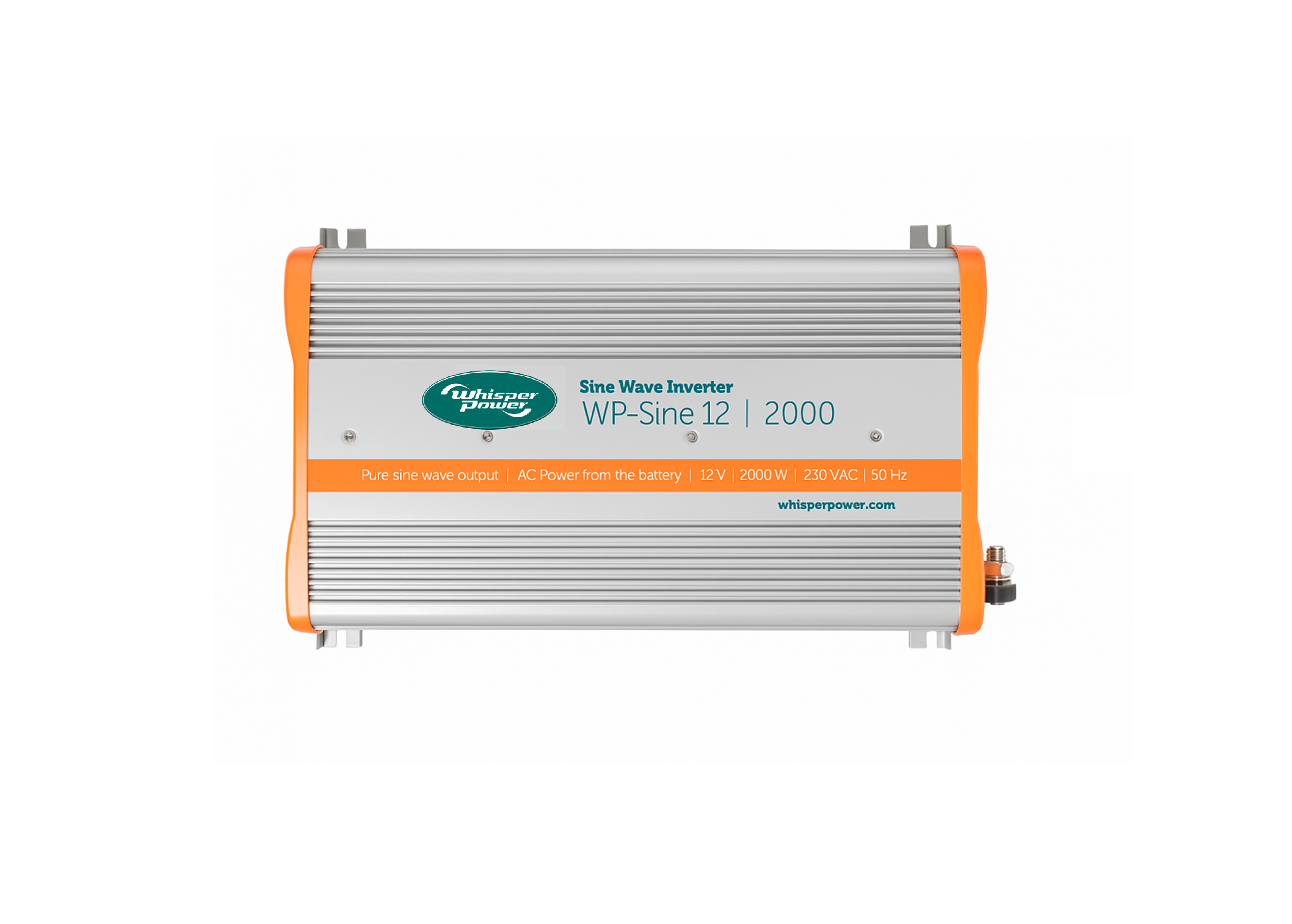

WP Sine Wave Inverter 12V / 2000VA

712.00 ex. VAT 19%

Sine wave Inverters

WhisperPower’s sine wave inverters convert a 12 or 24 V battery voltage into high quality house hold electricity. Low power appliances such as vaccuum cleaners, computers, chargers for phones and tablets do not require a diesel or gasoline generator but can be operated by an inverter instead. On an inverter, any 230V / 50 Hz appliance can be used at any time, without the need of a running engine. WhisperPower inverters are often used in combination with DC BeltPower alternators, connected to the main engine.

WP-Sine series

AC Power from the battery without generator

The WP-Sine inverter opens up a world of opportunities as it enables the use of practical home appliances, such as coffee machines, microwaves and other kitchen equipment, to be used on board. WhisperPower’s sinewave inverters are completely silent ‘generators’, providing 230V/ 50Hz (120V/ 60Hz) from a battery. Modern inverters like the WP-Sine range are compact,light weight, efficient and robust.

Features

– Choice of 400, 1000 Watt or 2000 Watt models
– Can be connected to a 12 (24V) battery
– Plug and play: AC output socket (EU, UK, USA) and DC terminals
– Negligible power loss in conversion from battery to AC power
– USB connection at front to charge telephone etc. (no charger needed)
– Peak power capability of 200%
– Remote on/ off facility, built in LED display on front (DC and AC information)

Ordering Information

WP Sine Wave Inverter 12V / 2000VA

61122500 WP Sine Wave Inverter 12V / 2000VA EU-SOCKET  € 712,00

Specifications

General specifications
AC Output 2 x Schuko sockets
Power (Continuous) 2000 W
Power (Peak, 500 mSec) 4000 W
Output voltage 230 V
Output frequency 50 Hz
Total harmonic distortion (THD) <5%
DC Input
Nominal battery voltage 12 V
Operation Range 10.5 – 15.5V
Input current 187 A
No load consumption 1.6 A
DC Output
5V USB 750 mA
Display
LED indicator yes
Digital Display Input Voltage / Current, Output Power
Protections
Input Undervoltage Warning 11.2 V
Input Undervoltage Shutdown 10.5 V
Input Undervoltage Recovery 11.8 V
Input Overvoltage Shutdown 15.5 V
Output Power Warning Yes
Output Power Shutdown Yes
Output Short Circuit Yes
Temperature Warning Yes
Temperature Shutdown Yes
Conformity Directive EMC 2004/108/EC Low voltage directive 2006/95/EC
Operating temperature range -20 – 55°C (derating above 40°C)
Relative humidity in operation 95% without condensation
Ventilation Forced cooling
Dimension hxwxl [mm] 240 x 420 x 115 mm
Weight 5.5 kg
Battery Connection M8 studs
Ground Lug Connection M6 studs
