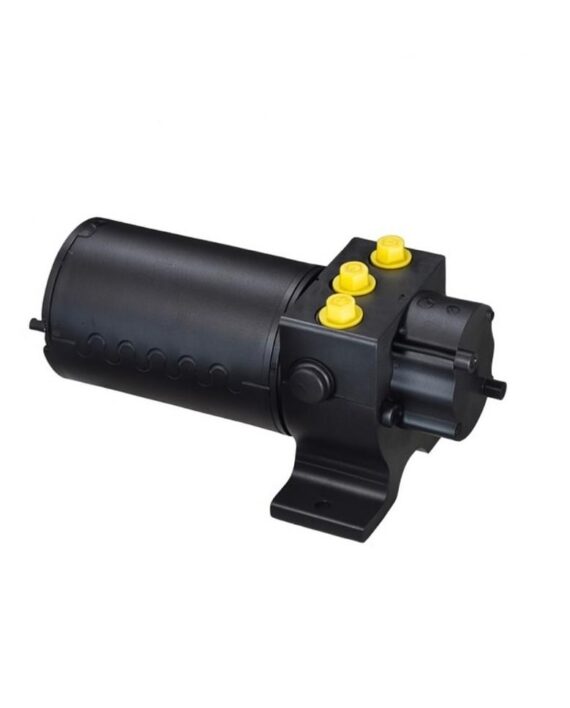

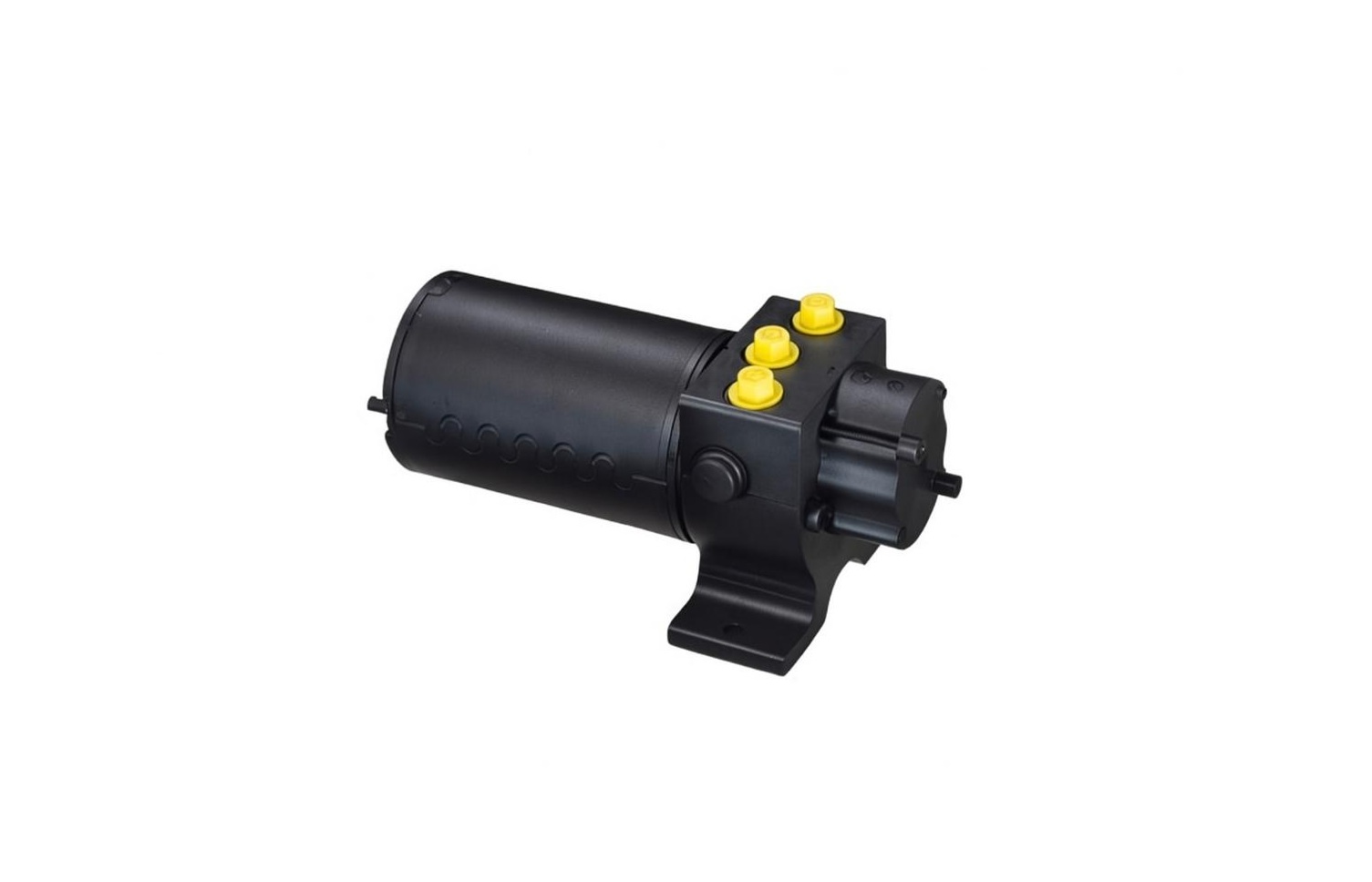

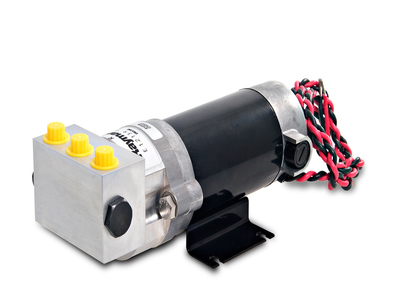

Type 0.5/12v Hydraulic Pump

600.00 ex. VAT 19%

Hydraulic Steering Systems

Hydraulic Steering Systems

Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.

If your system is hydraulic…
You’ll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engine boats, or to the drive unit on outboard engine boats. Your steering system documentation will have this information.

Notes:
• In some systems with dual steering rams in parallel, cylinder capacity is the total of both rams. Rams in series only require single capacity valve. Hydraulic steering systems with steering rams over 500cc require our larger constant running pump used in conjunction with the relevant ACU.
• Type 0.5 suitable for Volvo D4/D6 Sterndrive applications.

Ordering Information

Type 0.5/12v Hydraulic Pump

Part No. Description Price ex. VAT 19%
E12139 Type 0.5/12v Hydraulic Pump € 600.00

Specifications



General specifications
Drive Type Type 0.5 (12V)
Vessel Displacement Does not apply here. The drive unit is matched to the ram capacity of the steering system.
Ram Capacity 50cc-110cc (3.1in3–6.7in3)
Maximum Stall Pressure at 12V 50bar (750psi)
Peak Flow Rate (No Load) 650 cc/min (30.52in3/min)
ACU Used ACU-100
