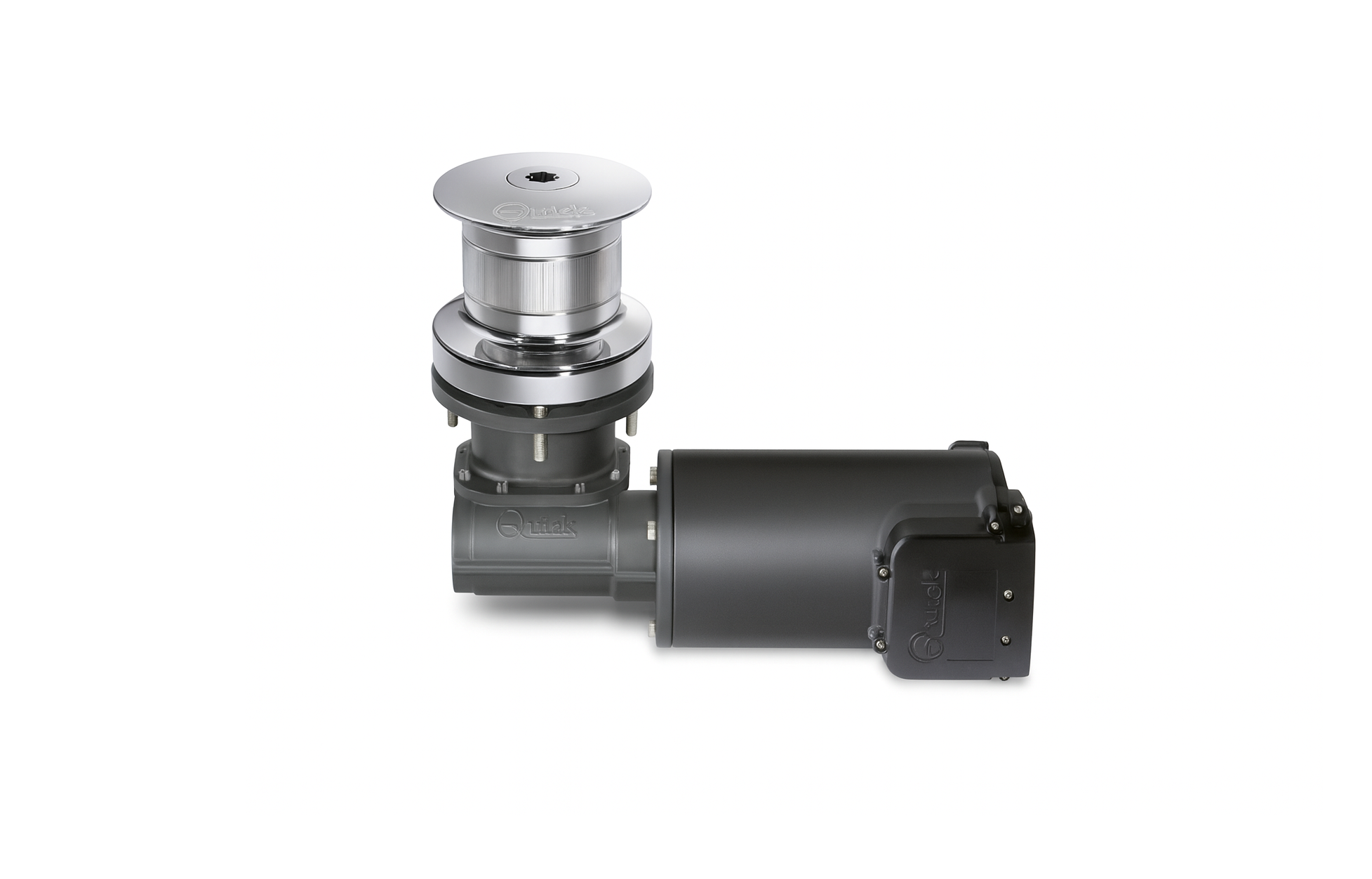

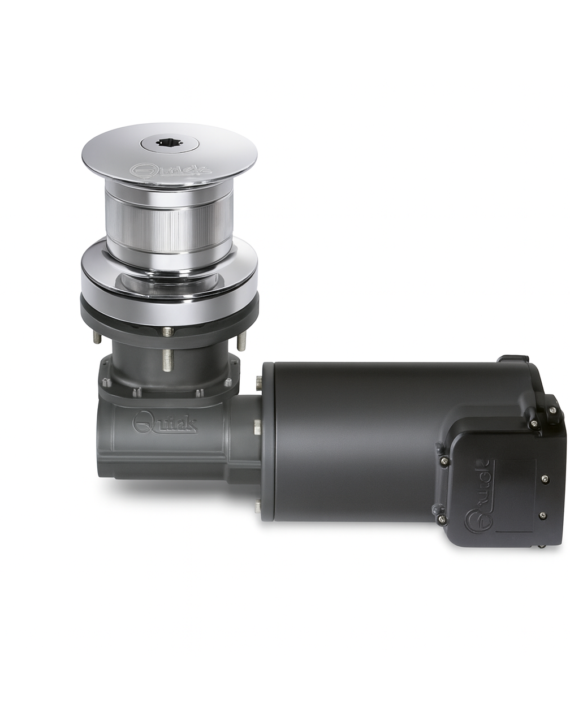

Tumbler – TB5
• Warping Winches
• AISI Stainless steel 316 base and drum
• IP67 Motor watertight
• Anodized aluminium gearbox
Drum
Ø 170 mm / 6″ 21/64
Tumbler – TB5
• Warping Winches
• AISI Stainless steel 316 base and drum
• IP67 Motor watertight
• Anodized aluminium gearbox
Drum
Ø 170 mm / 6″ 21/64
Part No. | Description | Price ex. VAT 19% |
---|---|---|
TB5 2024 | 2000 W – 24 V – Drum Ø 170 mm | € 2,918.00 |
General specifications | |
---|---|
Motor Power | 2000 W |
Motor Supply Voltage | 24 V |
Maximum pull | 1260Kg/2778lbs |
Maximum working load | 750 Kg/1653 lbs |
Working load | 250 Kg/551 lbs |
Current absorption at working load (after an initial period of use) | 115 A |
Maximum chain speed (measurements taken considering drum diameter) | 35,2 m/min 114.4 ft/min |
Maximum chain speed at working load (measurements taken considering drum diameter) | 19,9 m/min 65.3 ft/min |
Drum Ø | 170 mm 6″ 21/64 |
Weight | 42 Kg / 92.6 lbs |
