€10.00–€70.00 ex. VAT 19%
Raymarine’s proprietary cable system for use in NMEA 2000 networks. The design provides two advantages. First, the connector collars are retained on the product which allows for a smaller cable diameter making installations easier. More importantly, the cable can include a sixth wire which allows for backward compatibility with SeaTalk1 equipment. Products with SeaTalkng connectors can be used on NMEA 2000 networks that use Devicenet cabling through simple connector adaptors and conversely equipment with Devicenet connectors can be used on NMEA 2000 networks that use SeaTalkng cabling through simple connector adaptors.
Colour-coded cables
Cables and connectors are colour-coded for easy system identification and have quick-connect (push-fit, twist-lock) waterproof (IPx6) plugs and sockets.

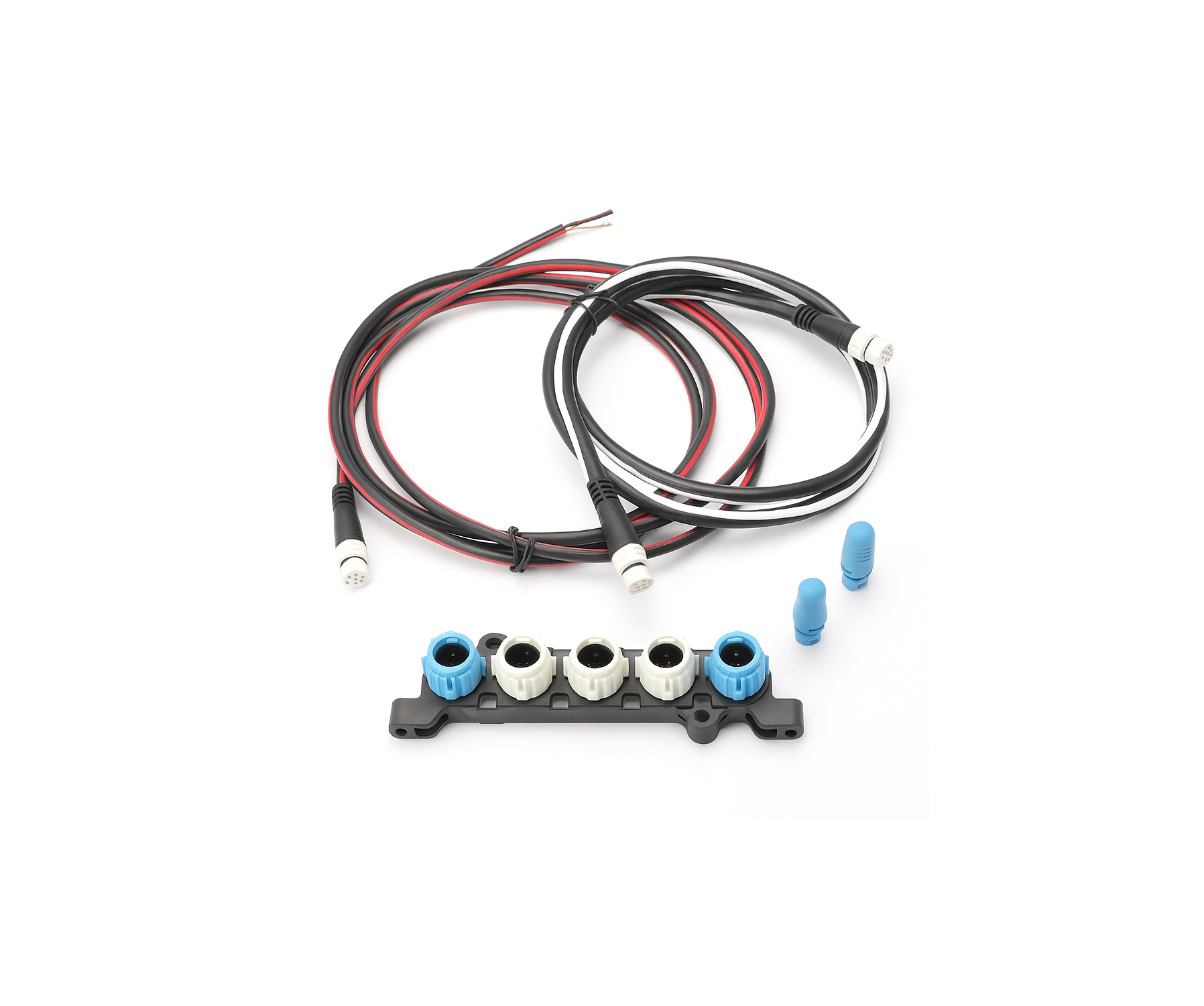

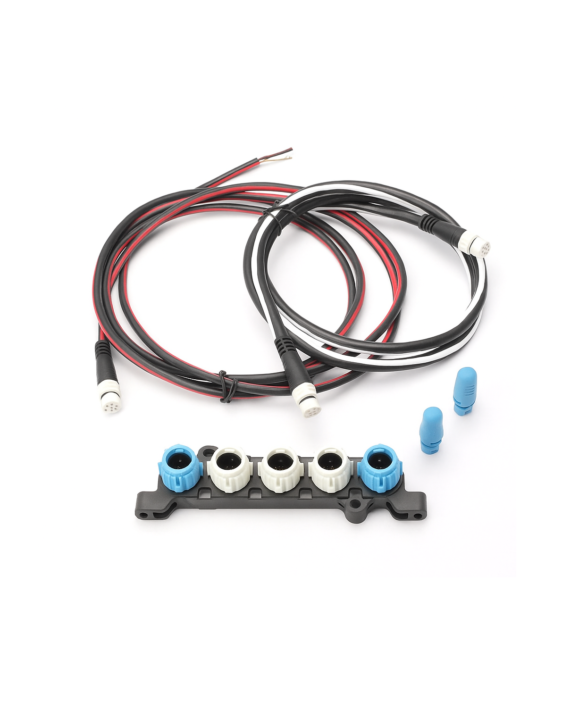

| T70134 | STNG Starter Kit (1xA06064, 2xA06031, 1xA06040, 1xA06049) | € 110,00 |
| A25062 | STNG Backbone Kit (2 x A06031, 1 x A06037, 2 x A06036, 4 x A06028, 1 x A06049) | € 285,00 |
| E70196 | VHF NMEA0183 TO STNG Converter Kit (1xR52131, 2xA06031, 2xA06032, 1xA06071, 1xA06049, 1xA06039) | € 130,00 |
| T12217 | Cable Kit/NMEA2000 Gateway (1X A06039, 1X A06045, 1X A06064, 1X A06049, 2X A06031) | € 130,00 |
| A06049 | STNG Straight Power to bare wires cable (2m) | € 25,00 |
| A06070 | STNG Right Angle Power to bare wires cable (2m) | € 25,00 |
| A06028 | STNG T-Piece Connector | € 25,00 |
| A06064 | STNG 5 Way Connector | € 40,00 |
| A06030 | STNG Backbone Extender | € 20,00 |
| A06031 | STNG Backbone Terminator | € 15,00 |
| A06074 | STNG In-Line Terminator | € 20,00 |
| A06032 | STNG Blanking Plug | € 5,00 |
| A80614 | STNG Auxillary Alarm with 1m Spur Cable | € 170,00 |
| A06033 | Backbone Cable 400mm | € 35,00 |
| A06034 | Backbone Cable 1m | € 35,00 |
| A06035 | Backbone Cable 3m | € 40,00 |
| A06036 | Backbone Cable 5m | € 50,00 |
| A06068 | Backbone Cable 9m | € 60,00 |
| A06037 | Backbone Cable 20m | € 75,00 |
| A06038 | Spur Cable 400mm | € 35,00 |
| A06039 | Spur Cable 1m | € 40,00 |
| A06040 | Spur Cable 3m | € 45,00 |
| A06041 | Spur Cable 5m | € 55,00 |
| A06072 | Spur Cable 6m | € 65,00 |
| A06042 | STNG Elbow to Elbow Spur Cable (400mm) | € 35,00 |
| A06080 | STNG Elbow to Straight DeviceNet (Female) Cable (1m) | € 40,00 |
| A06081 | STNG Elbow to Straight Spur Cable (1m) | € 40,00 |
| A06077 | STNG Right Angle Adaptor | € 20,00 |
| A06082 | DeviceNet (Female) to STNG (Socket / Male) Straight Adaptor | € 25,00 |
| A06083 | STNG (Female) to DeviceNet (Socket / Male) Straight Adaptor | € 25,00 |
| A06084 | DeviceNet (Female) to STNG (Socket / Male) Right Angle Adaptor | € 25,00 |
| A06079 | DeviceNet (Female) to STNG Spur (Female) Adaptor Cable (120mm) | € 40,00 |
| A06045 | DeviceNet (Female) to STNG Spur (Female) Adaptor Cable (400mm) | € 45,00 |
| A06075 | DeviceNet (Female) to STNG Spur (Female) Adaptor Cable (1m) | € 45,00 |
| A06078 | DeviceNet (Male) to STNG Spur (Female) Adaptor Cable (120mm) | € 20,00 |
| A06076 | DeviceNet (Male) to STNG Spur (Female) Adaptor Cable (1m) | € 45,00 |
| A06046 | DeviceNet (Male) to STNG Spur (Female) Adaptor Cable (1.5m) | € 40,00 |
| A80674 | STNG Backbone (Female) to DeviceNet (Socket / Male) 400mm adaptor cable | € 40,00 |
| A80675 | STNG Backbone (Female) to DeviceNet (Female) 400mm adaptor cable | € 40,00 |
| A06047 | ST1 (3 Pin) to STNG Spur (Female) Adaptor Cable (400mm) | € 20,00 |
| A06073 | ST1 (3 Pin) to STNG Spur (Female) Adaptor Cable (1m) | € 20,00 |
| A06048 | ST2 (5 Pin) to STNG Spur (Female) Adaptor Cable (400mm) | € 20,00 |
| A06043 | STNG Spur (Female) to Stripped End Cable (1m) | € 40,00 |
| A06044 | STNG Spur (Female) to Stripped End Cable (3m) | € 45,00 |
| R12112 | 1m STNG to SPX Moulded Cable | € 65,00 |
