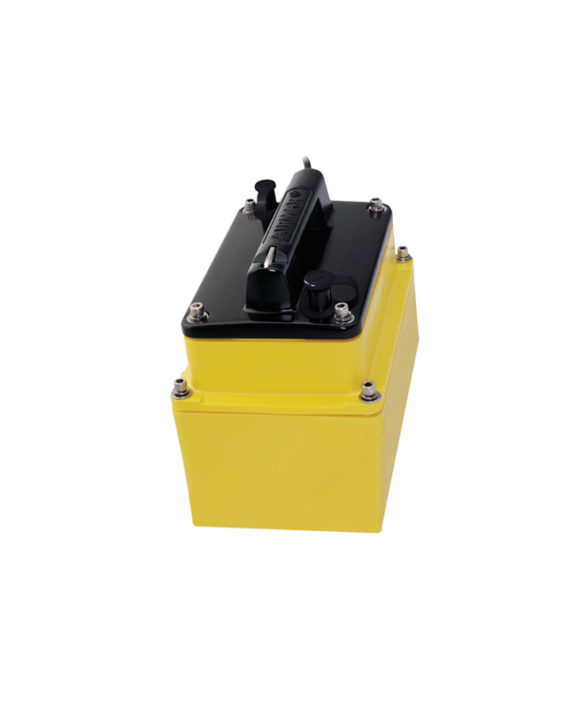

M265LH D In Hull Low-High Transducer

2,195.00 ex. VAT 19%

M265LH 1KW In-Hull Transducer

M265LH D In Hull Low-High Transducer

The M265 is an outstanding in-hull option with 8 internal ceramics and up to 117kHz of total CHIRP range. The in-hull installation eliminates the need to drill any holes in the hull, while accommodating a large range of deadrise angles. The medium-frequency benefits include the ability to identify targets deeper than the high-frequency with benefit of a wider beam angle. The high frequency provides excellent shallow water resolution.

Ordering Information

M265LH 1KW In-Hull Transducer

Part No. Description Price ex. VAT 19%
A80012 M265LH D In Hull Low-High Transducer € 2.195,00

Specifications

General specifications
Description 1KW Urethane In-Hull Transducer with In-Hull Mounting Kit
Installation In Hull
Material Urethane
Power (RMS) 1000W (1KW)
Max Depth (Ft) L: 3,000 / H: 1,000
Frequency (KHz) L: 42-65 / H: 130-210
Beam Width (L/H) L: 25°-16° / H: 10°-6°
Records Depth
Approved Hull Material Solid Fibreglass Only
Cable Length (Ft/M) 33ft / 10m
Supported Deadrise / Transom Angles 0-30° Deadrise
