TM275LH-W 1000W D/T Transom Mount Low-High Wide Beam Transducer

2,295.00 ex. VAT 19%

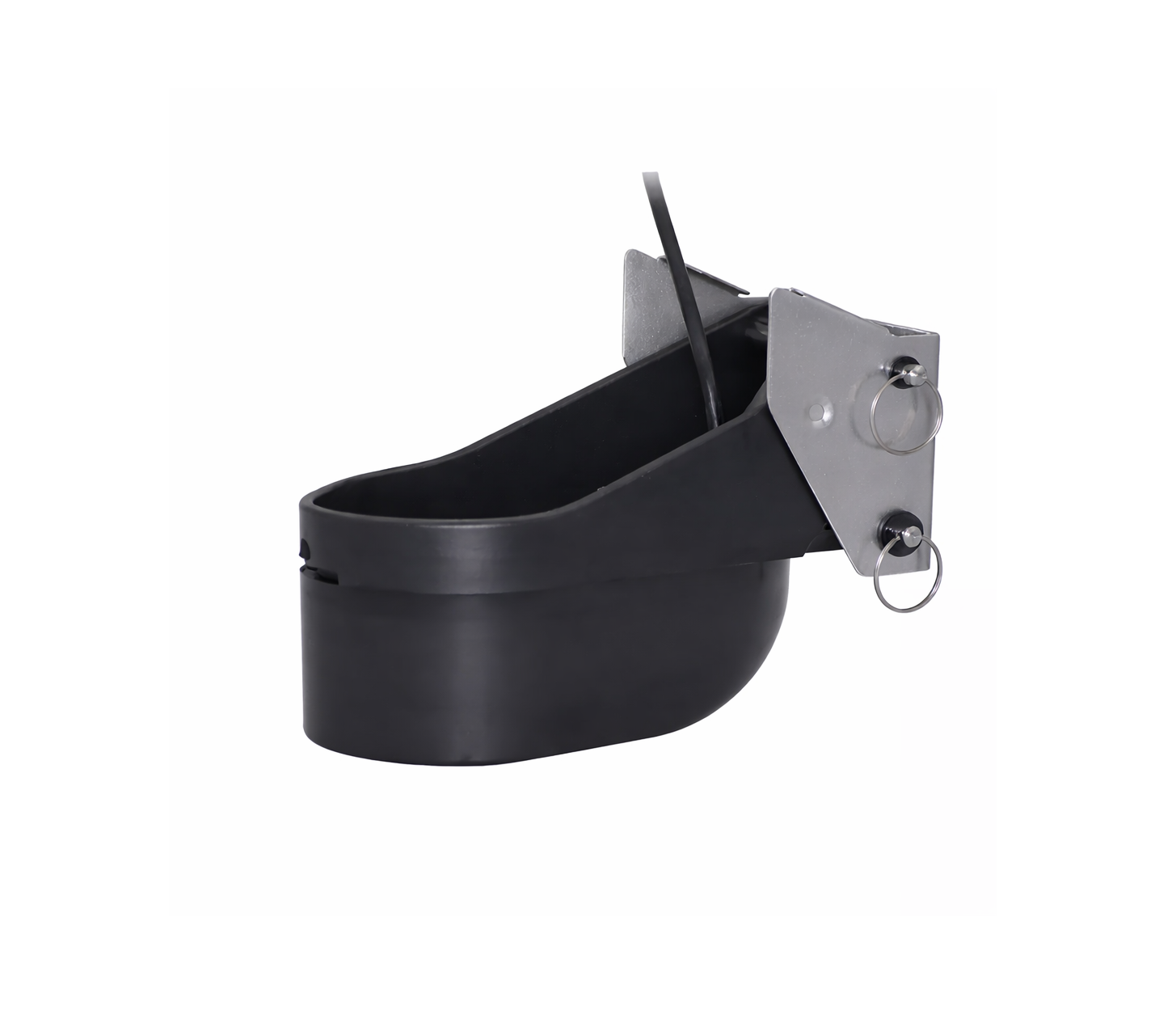

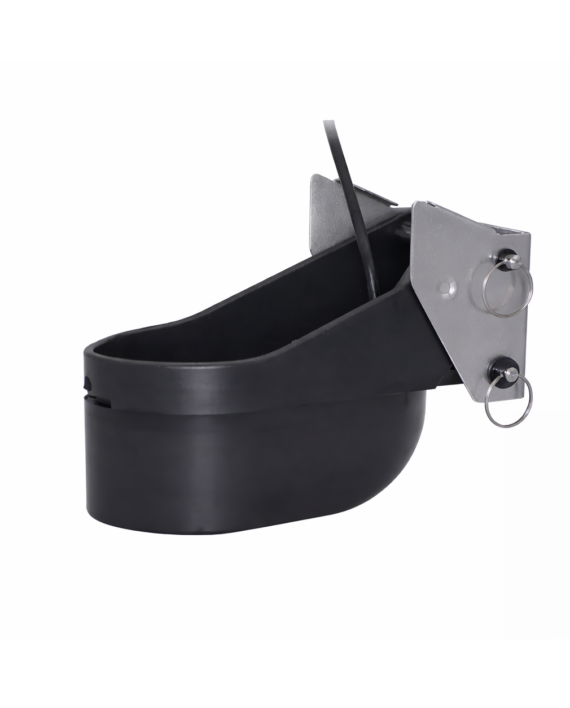

TM275LH-W Urethane Transom Mount Transducer 1kW

TM275

Airmar’s exclusive wide beam transducers features a constant 25 degree beam angle for the entire High CHIRP spectrum. The result is improved shallow water coverage while maintaining the high resolution capabilities associated with the High CHIRP channel. Available in a variety of configurations, there is a wide beam transducer solution for almost any vessel.
*All wide beam products come with a 2M pigtail off the transducer. Pair with a CHIRP Transducer Extension Cable (3, 5 or 10M) for a complete transducer installation.



Ordering Information

TM275LH-W Urethane Transom Mount Transducer 1kW

Part No. Description Price ex. VAT 19%
A80318 TM275LH-W 1000W D/T Transom Mount Low-High Wide Beam Transducer € 2.295,00

Specifications



General specifications
Description NEW PRODUCT! TM275LH-W Wide Beam Urethane Transom Mount with Temp. 1kW
Installation Transom Mount
Material Urethane
Power (RMS) 1000W (1KW)
Max Depth (Ft) L:3,000 / H:800
Frequency (KHz) L: 42-65 / H: 150-250
Beam Width (L/H) L: 25°-16° / H: 25°
Records Depth / Temperature
Approved Hull Material Fiberglass / Wood / Metal
Cable Length (Ft/M) 33ft / 10m
Supported Deadrise / Transom Angles 0-25° Transom
