HECTOR – HC3 12/24V 1000W For boats from 10 to 13 meters (33 – 43 ft)

€2,047.50–€2,470.00 ex. VAT 19%

Hector Windlass Series – Horizontal On-Deck Windlasses

Clear

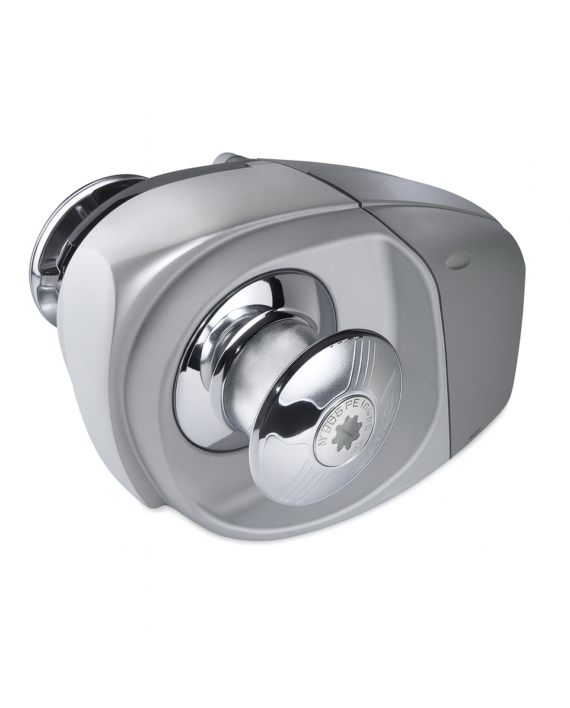

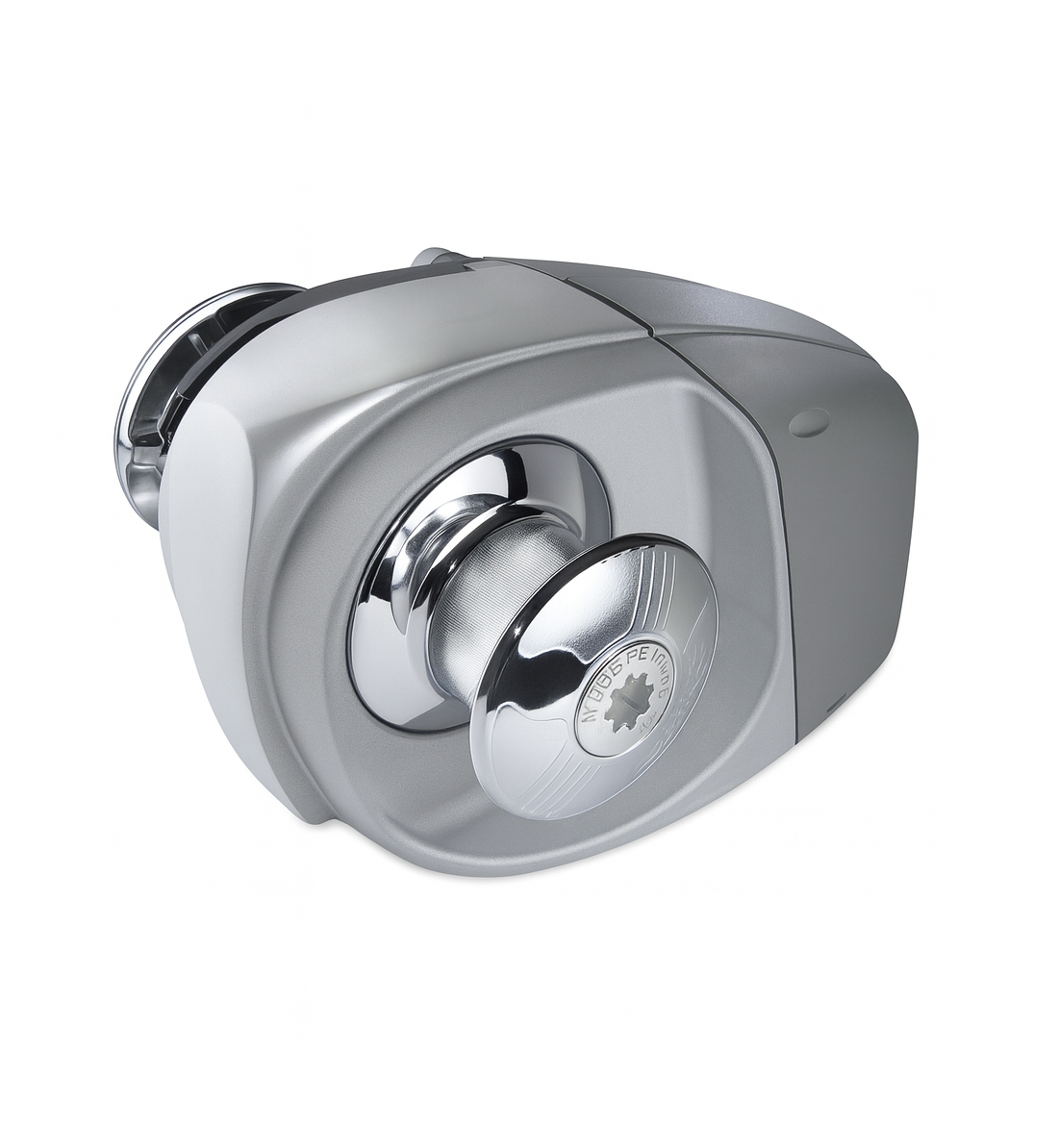

Hector – HC3
• Horizontal on-deck windlasses
• Base in anodized aluminium in hard oxide
• Jacket in composite material or in alluminium anodized in hard oxide
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• Integrated solenoids unit
• Emergency manual lift system
• Manual Free-Fall system
• IP66 watertight motor

Gypsy and Drum
Ø 130 mm / 5″1/8

Gypsy
8 mm – 5/16″ | 10 mm – 3/8″

Rope
1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm)

Ordering Information

HECTOR – HC3 12/24V 1000W For boats from 10 to 13 meters (33 – 43 ft)

Part No. Description Price ex. VAT 19%
HC3_1012A 1000 W – 12 V – With right gypsy € 2,047.50
HC3 1012AD 1000 W – 12 V – With right gypsy / left drum Ø 130 mm € 2,280.00
HC3 1012ADB 1000 W – 12 V – With right gypsy – right drum Ø 130 mm € 2,437.50
HC3 1024A 1000 W – 24 V – With right gypsy € 2,080.50
HC3 1024AD 1000 W – 24 V – With right gypsy / left drum Ø 130 mm € 2,297.50
HC3 1024ADB 1000 W – 24 V – With right gypsy – right drum Ø 130 mm € 2,470.00

Specifications

General specifications
Model HC3 1012
HC3 1012D
HC3 1012DB		 HC3 1024
HC3 1024D
HC3 1024DB
Motor Power 1000 W 1000 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 1300Kg/2866lbs 1300Kg/2866lbs
Maximum Working Load 400,0Kg/881.8lbs 490,0Kg/1080.2lbs
Working Load 130,0Kg/286.6lbs 160,0kg/352.7lbs
Current absorption at working load (after an initial period of use) 140 A 80 A
Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) 37,3 m/min
122.4 ft/min		 39,6 m/min
129.9 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) 17,8 m/min
58.4 ft/min		 21,0 m/min
68.9 ft/min
Weight – H – [without drum] 23,9 Kg/52.7 lbs 23,9 Kg/52.7 lbs
Weight – HD – [with drum] 25,3 Kg/55.8 lbs 25,3 Kg/55.8 lbs
Weight – HDB – [drum on the gypsy] 26,5 Kg/58.4 lbs 26,5 Kg/58.4 lbs
Weight – H – Aluminium jackets – [without drum] 25,4 Kg/56.0 lbs 25,4 Kg/56.0 lbs
Weight – HD – Aluminium jackets – [with drum] 26,8 Kg/59.1 lbs 26,8 Kg/59.1 lbs
Weight – HDB – Aluminium jackets – [drum on the gypsy] 28 Kg/61.7 lbs 28 Kg/61.7 lbs
