Follow-On Tiller Steer

€695.00 ex. VAT 19%

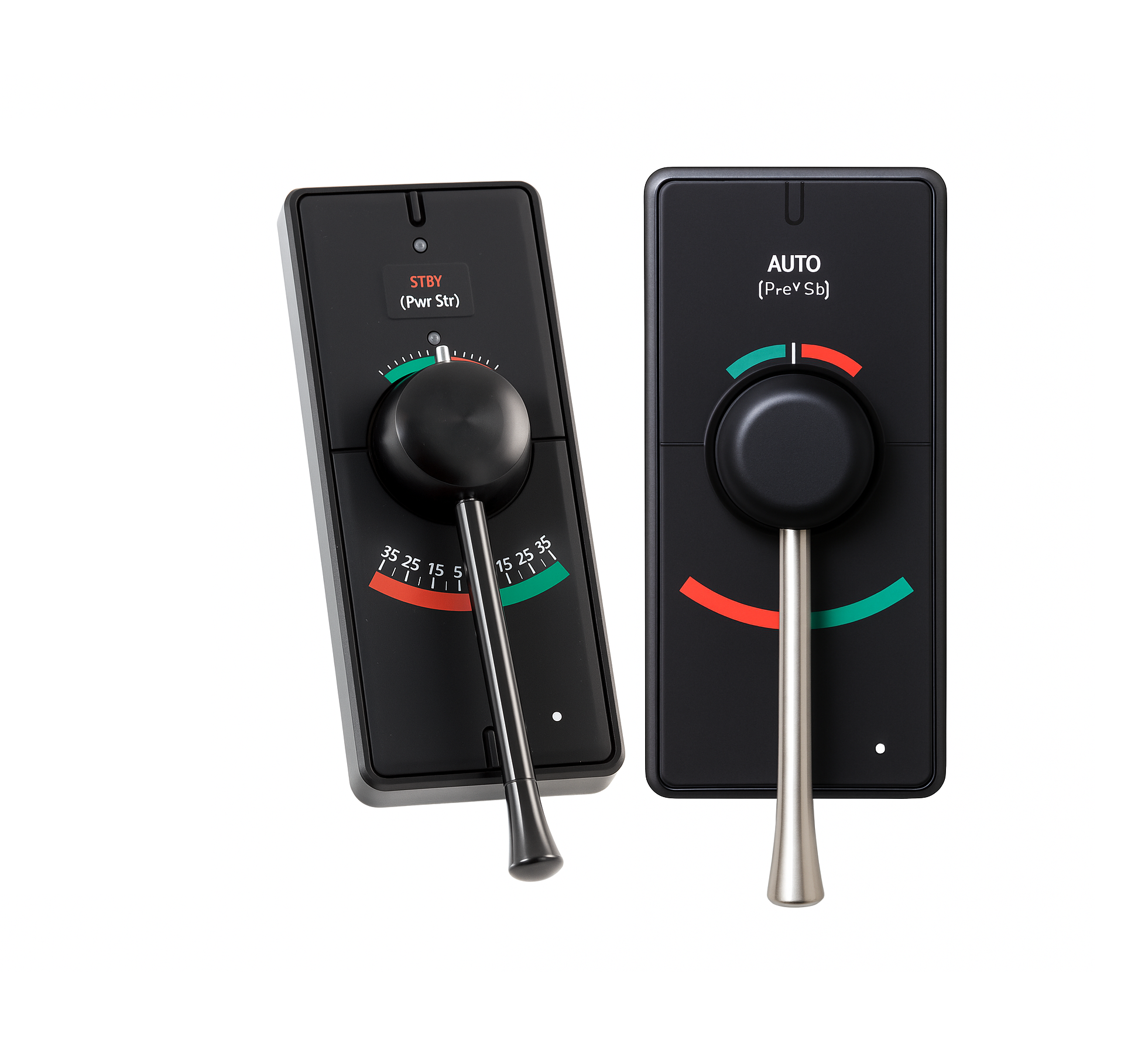

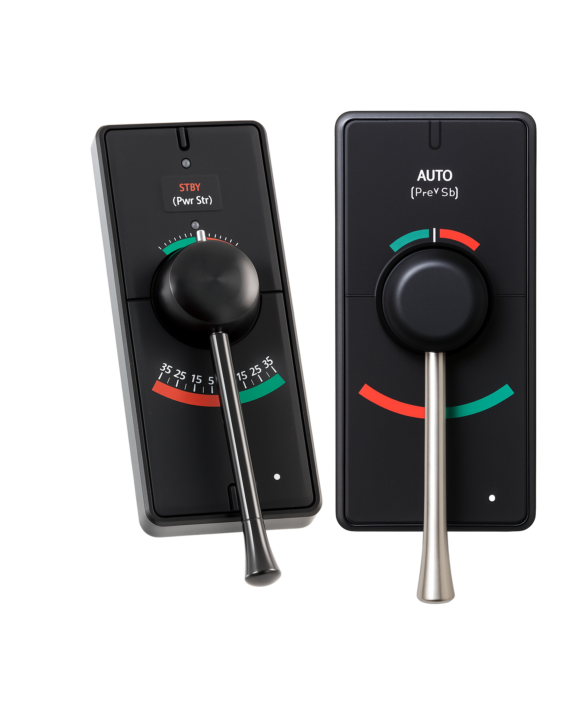

Raymarine’s Follow-On Tiller autopilot controller brings fully functional power steering to remote and secondary control stations anywhere onboard. Designed for cruising yachts or commercial vessels, the Follow-On Tiller is a simple add-on control unit for Raymarine Evolution autopilot systems. With a single button press, the tiller activates Evolution’s Power Steer mode, enabling captains to send precise steering angle commands to the rudder, up to 35°.

The Evolution Follow-On Tiller can be installed at bridge wing stations, aft docking stations, or even into the arms of pilothouse helm chairs. The intuitive design lets captains make precise steering adjustments with a simple turn of the lever or dial.

Key Features:

  • Brings precision power steering control to remote locations and auxiliary maneuvering stations
  • Sleek, low profile design enables fits to just about anywhere
  • Selectable proportional or bang-bang modes for steering or maneuvering applications
  • Simple SeaTalkng networking supports up to 4 remote tiller stations
  • Compatible with Evolution™ Autopilot Systems for Power Boats

Ordering Information

Follow-On Tiller Steer​

A80532 Autopilot Follow-On Tiller Steer Control Head (Standby – Power Steer – Standby) € 695,00
A80602 Autopilot Follow-On Tiller Steer Control Head (Auto – Power Steer – Auto) € 695,00

Specifications



General specifications
Steering angle +/- 35 degrees
Mounting option Surface mount
Environment Above deck to IPX6 and IPX7
Power Supply 12V DC Via STNG
Current Consumption 30mA (1 LEN)
Housing Front, anodized front panel, with rubberized keypad
Temperature Operating -25 °C to +55 °C. Storage temperature -30 °C to +70 °C
Weight 447g (15.77 oz)
Dimensions 55mm (Width) x 133mm (Length) x 13mm (Height above mounting surface) / 20.4mm (Height below mounting surface) – Arm length 79.6mm
