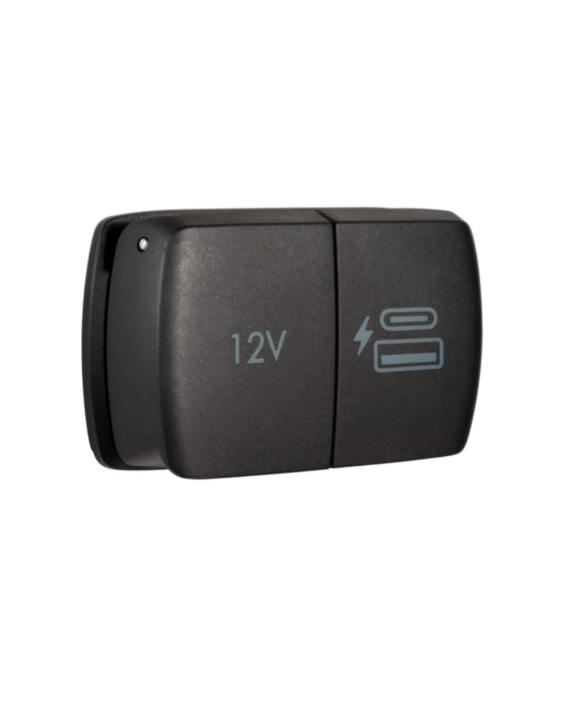

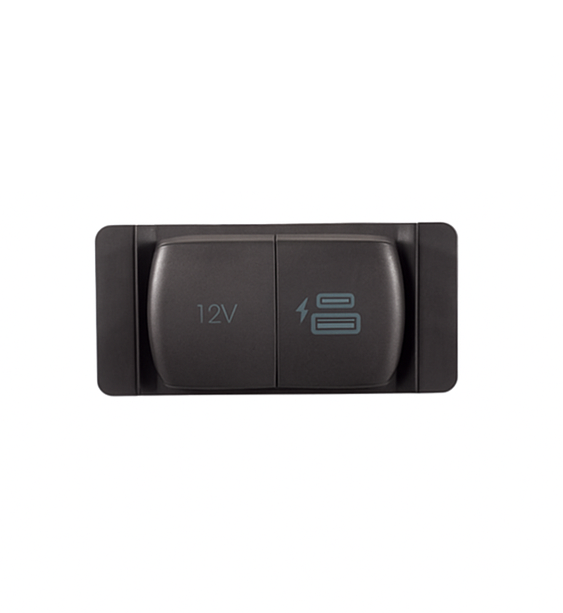

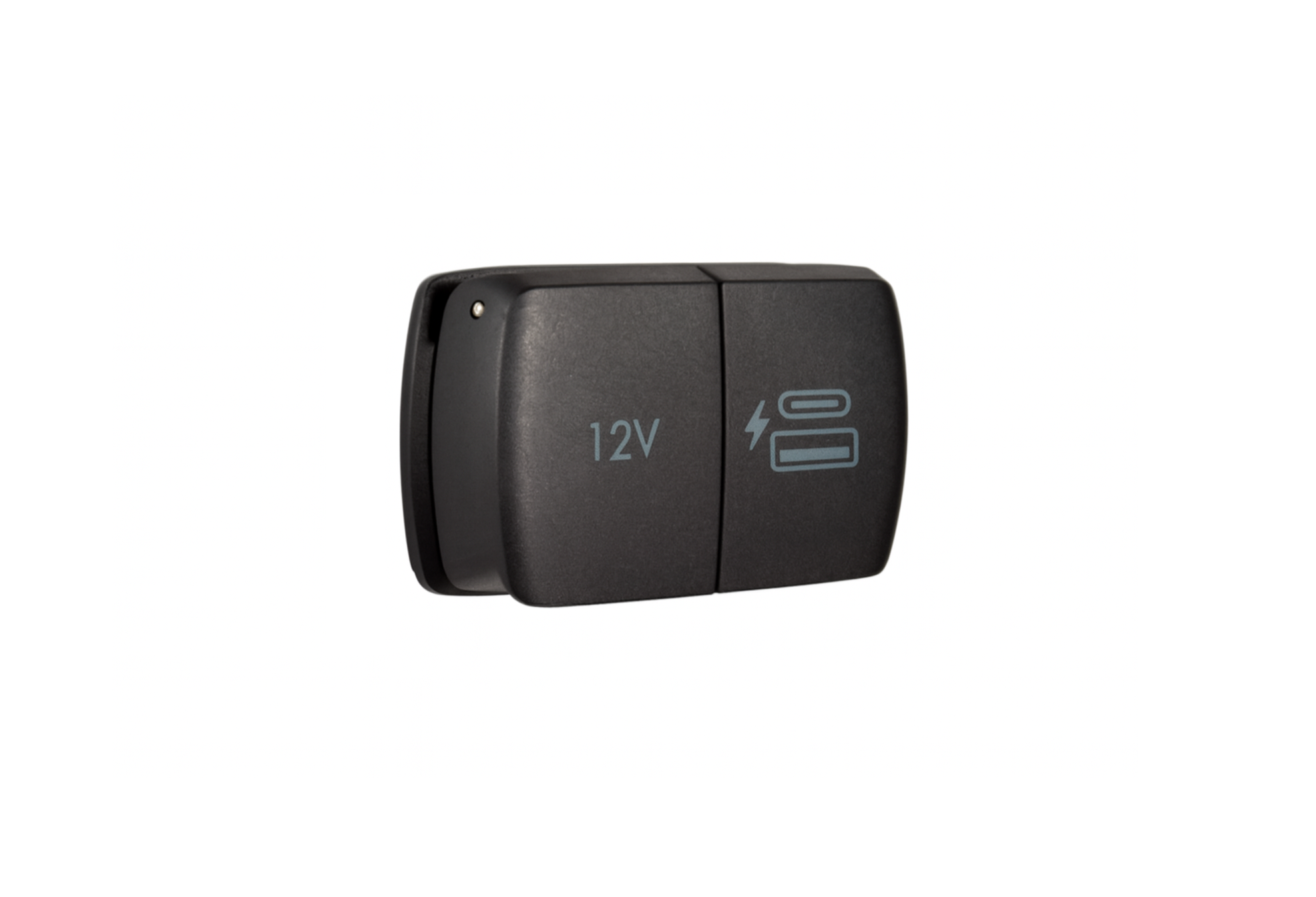

Flip Pro Duo

75.00 ex. VAT 19%

The Scanstrut Flip Pro USB Charge range is a cutting-edge marine-grade charging solution designed to provide reliable and fast outdoor USB charging.

The Scanstrut Flip Pro USB Charge range is a cutting-edge marine-grade charging solution designed to provide reliable and fast outdoor USB charging.

The range of chargers combines durable construction, advanced USB technology, and a user-friendly design to ensure a trouble-free charging experience while on the water.

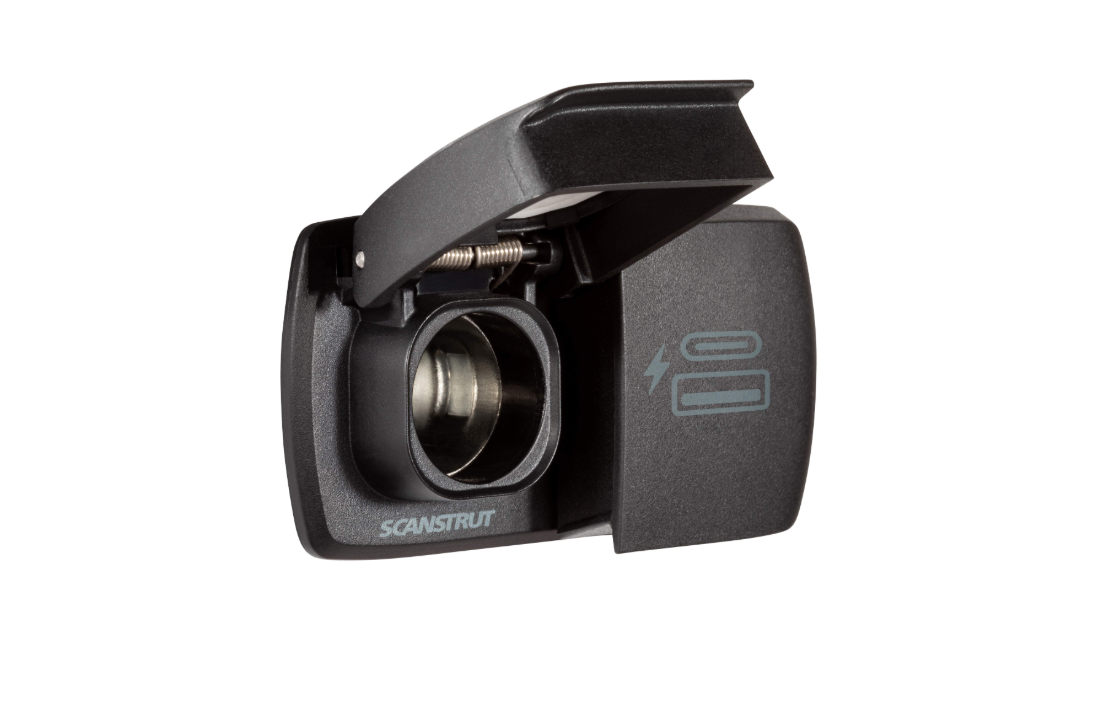

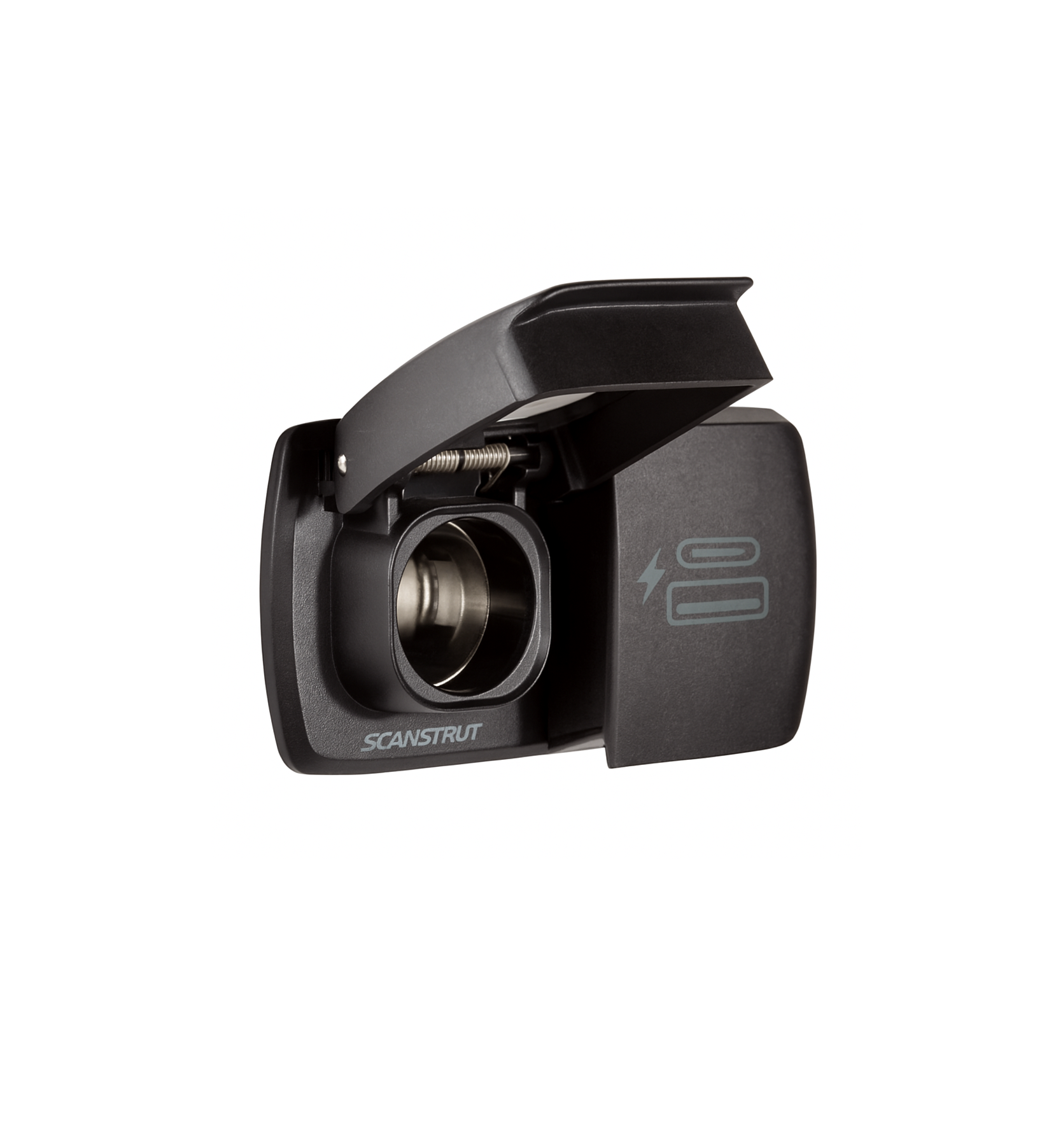

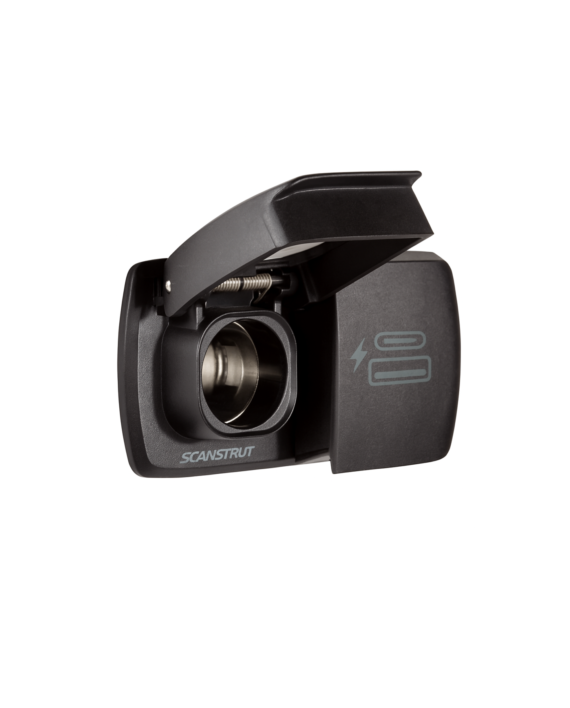

When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

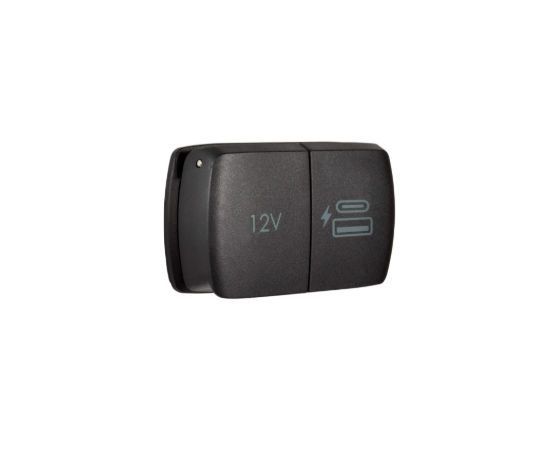

Featuring a super-compact footprint, Flip Pro Duo is constructed from premium, marine-grade materials and is IPX4 waterproof, making it completely washdown-ready.

Installation
Easy Install, using a standard Ø32mm (1.25”) hole saw

Universal

  • Universal fit for any USB-A & C connectors
  • Fast charge (60W max) up to 2 devices at a time

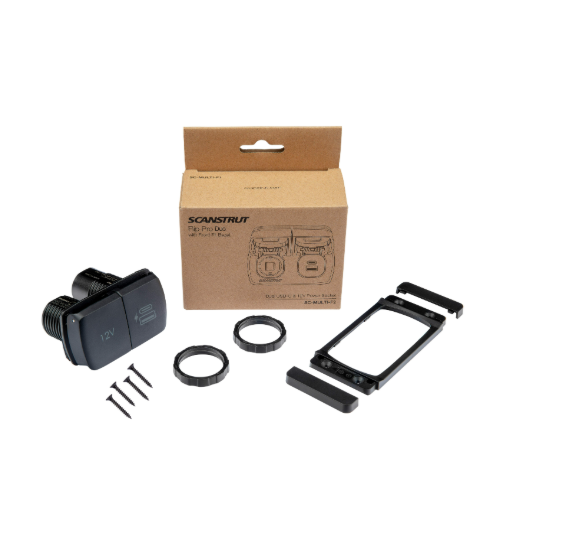

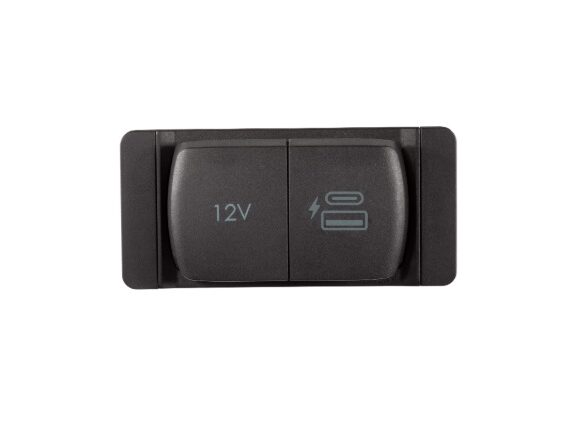

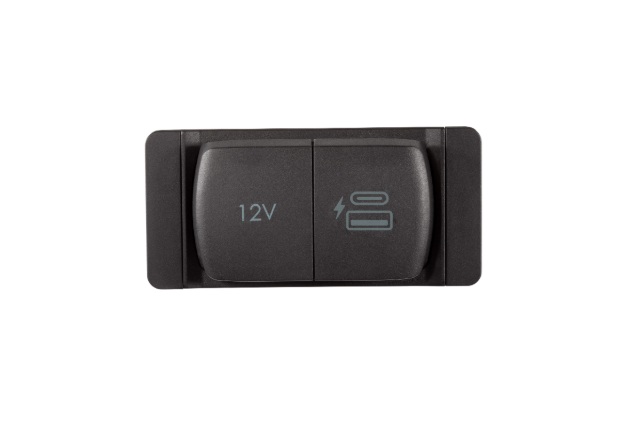

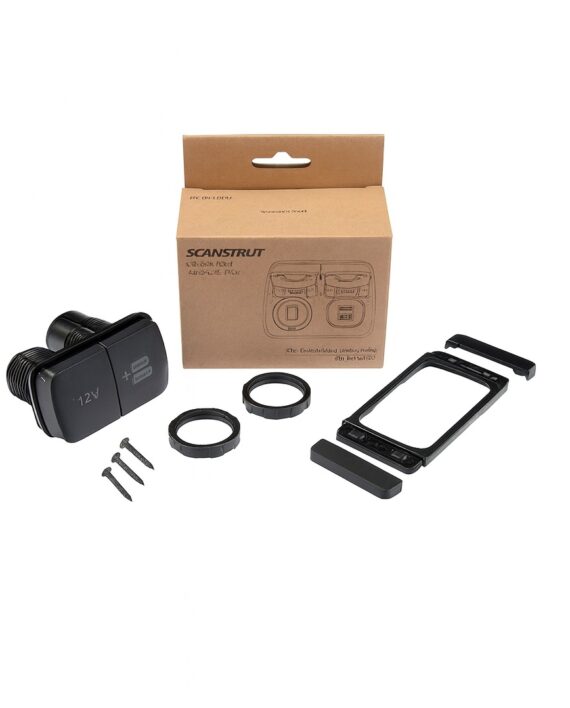

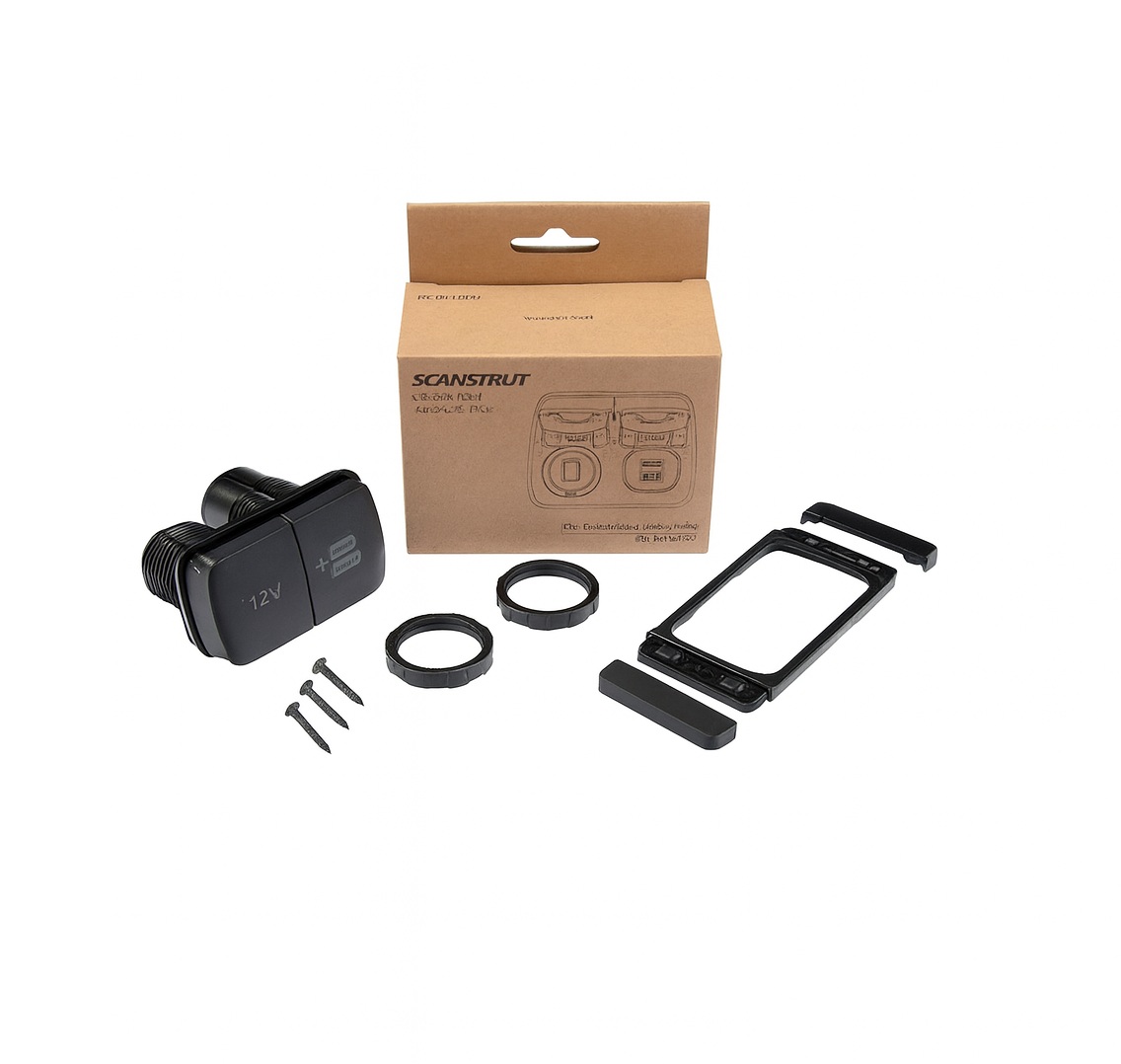

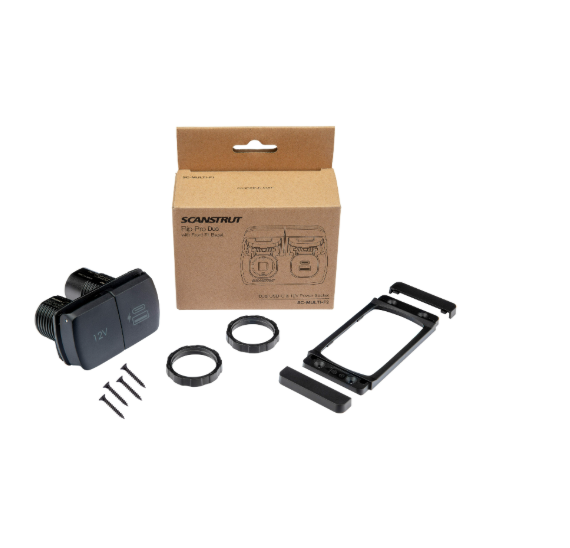

  • Supplied with a front-fit bezel kit

Marine Ready

  • IPX4 waterproof with the cover closed
  • UV resistant
  • 316 stainless hinge and spring

Ordering Information

Part No. Description Price ex. VAT 19%
SC-MULTI-F2 Flip Pro Duo € 75,00

USB Electrical Information

Input Voltage Range 10-15V DC (12/24V system)
Input current max Max 6A (10A fuse recommended)
Output (Type C)
12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
Output (Type A) 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX

24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX

Standby Draw 0.01W
Certification CE, FCC, UKCA, C-Tick, ROHS, WEE

12V Power Socket Electrical Information

 Input Voltage Range (12V System Only) 12V
Input current max Max 10A
Output 12V⎓10A
Standby Draw 0.01W
Certification CE, ROHS, WEE, UKCA
