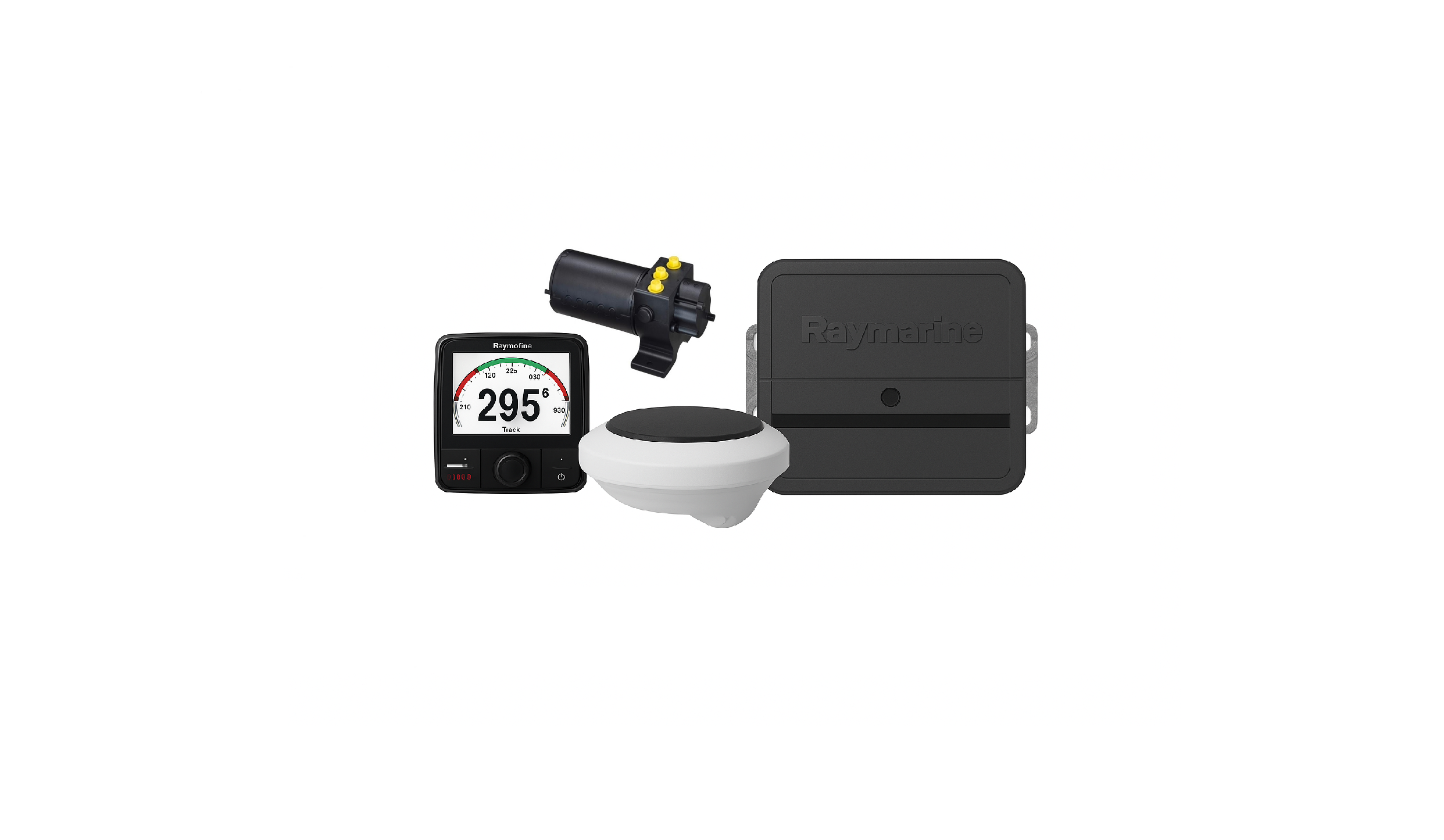

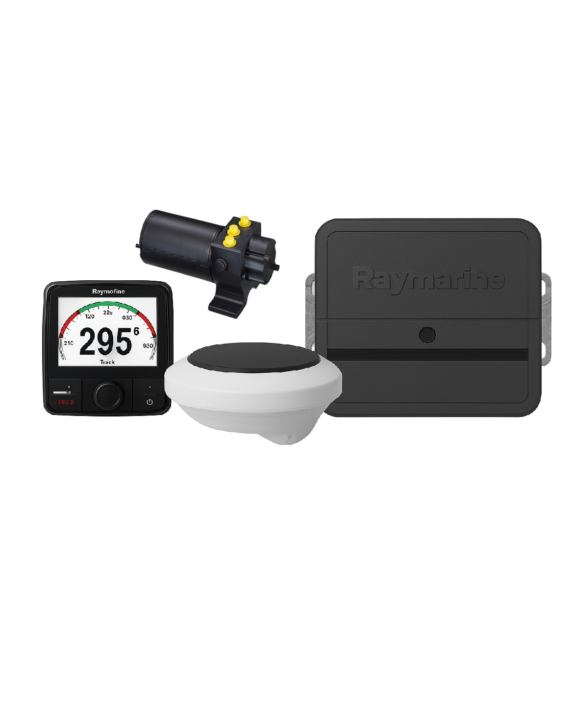

Evolution Autopilot with p70Rs control head, ACU-200, EV1 Sensor Core, EV1 Cabling kit & Type 1 Hydraulic pump

2,795.00 ex. VAT 19%

Race, cruise or fish – Evolution will take command
No fuss, easy to install and robust – the Evolution autopilot combines Raymarine’s autopilot expertise, FLIR Systems’ R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

EV-200 Hydraulic Pack

Pack Contents:

EV1 Sensor Core
The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.
SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-200
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70Rs Autopilot Control Head
The p70Rs features vibrant colour displays and is powered by Raymarine’s intuitive LightHouse user interface. LightHouse organises all options into simple menu structures, so with Evolution’s Automagic 3-step setup process you will be up and running in minutes.

Type 1 Hydraulic Pump (12V)
The Type 1 Hydraulic Pump is intended to operate the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively, you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.
The hydraulic pump contains a precision gear pump and a check valve driven by a servo motor.

Evolution Cabling Kit

The Evolution SeaTalkng cable kit contains:
1 x SeaTalkNG Power Cable (0.4m)
1 x SeaTalkNG Backbone Cable (5m)
1 x SeaTalkNG Spur Cable (0.4m)
1 x SeaTalkNG 5-way Connector Block
2 x SeaTalkNG T-piece Connector
2 x SeaTalkNG Terminator

Ordering Information

Evolution Autopilot with p70Rs control head, ACU-200, EV1 Sensor Core, EV1 Cabling kit & Type 1 Hydraulic pump

Part No. Description Price ex. VAT 19%
T70157 Evolution Autopilot with p70Rs control head, ACU-200, EV1 Sensor Core, EV1 Cabling kit & Type 1 Hydraulic pump €2,795.00
