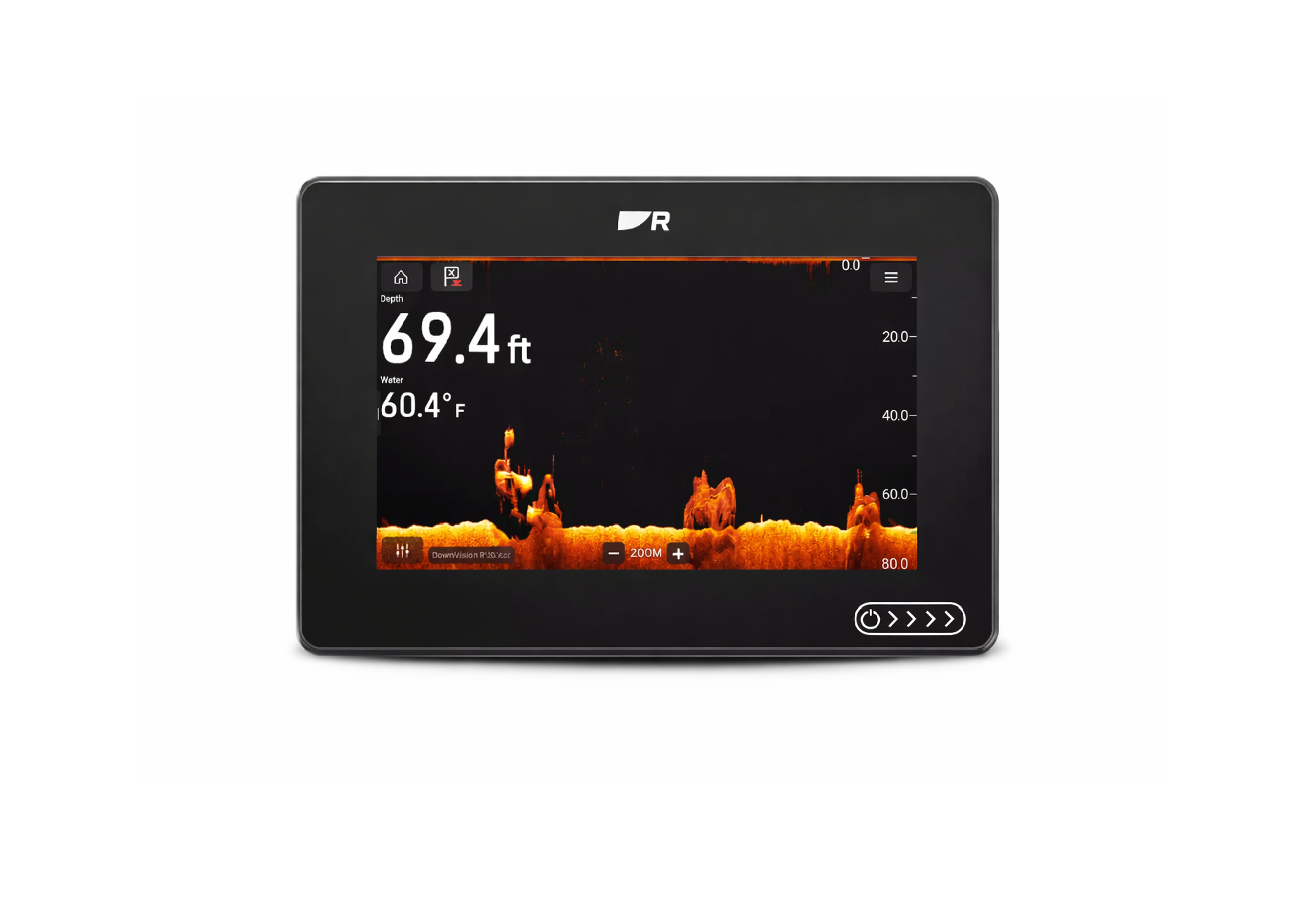

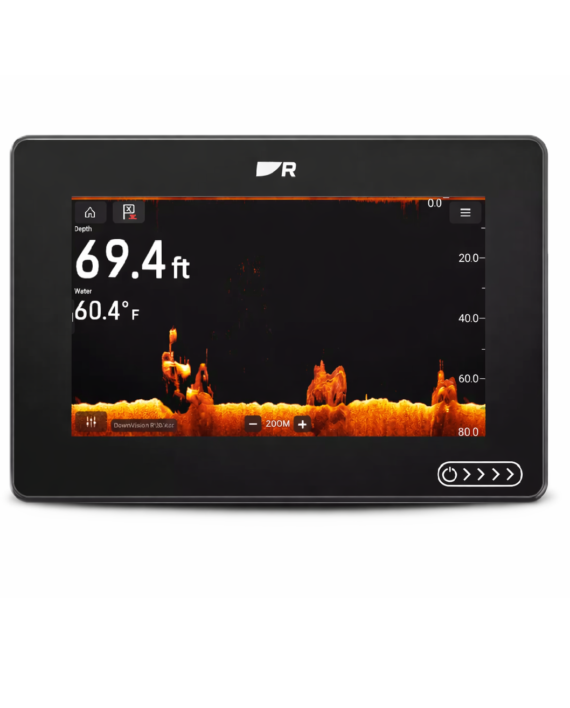

The Raymarine AXIOM 2 12″ (E70725) is a high-end multifunction chartplotter that combines powerful navigation with built-in RealVision™ 3D sonar, delivering a complete solution for serious anglers and demanding boaters. Designed as part of the latest Axiom 2 generation, it offers enhanced speed, responsiveness, and full system integration.
Powered by a 6-core processor, the system ensures ultra-fast chart rendering, smooth multitasking, and seamless performance across navigation, sonar, radar, and video applications. The large 12-inch HydroTough™ IPS touchscreen provides exceptional brightness (up to ~1800 nits) and wide viewing angles, ensuring excellent visibility in all conditions.
The integrated RealVision™ 3D sonar delivers highly detailed underwater imaging, combining 3D sonar, DownVision™, SideVision™, and CHIRP sonar for precise identification of fish, structures, and seabed contours. This makes the unit ideal for both navigation and advanced fishfinding.
With built-in 10 Hz GNSS (GPS, GLONASS, BeiDou) and support for RayNet Ethernet, NMEA 2000, Wi-Fi, and Bluetooth, the AXIOM 2 integrates seamlessly with radar, autopilot, FLIR cameras, and engine monitoring systems, creating a fully connected onboard ecosystem.
Key Features
- 12″ HydroTough™ IPS touchscreen with high brightness (~1800 nits)
- Built-in RealVision™ 3D sonar (3D, DownVision™, SideVision™, CHIRP)
- Powerful 6-core processor for ultra-fast performance
- LightHouse OS with intuitive interface and app ecosystem
- Built-in 10 Hz GNSS (GPS, GLONASS, BeiDou)
- RayNet Gigabit Ethernet & NMEA 2000 networking
- Wi-Fi & Bluetooth connectivity
- Compatible with radar, FLIR cameras, autopilot, and engine systems
- 64 GB internal storage for charts and data
