Aleph – AL3 12/24V For boats from 7 to 10 meters (23 – 33 ft)

€1,392.50–€1,635.00 ex. VAT 19%

Clear

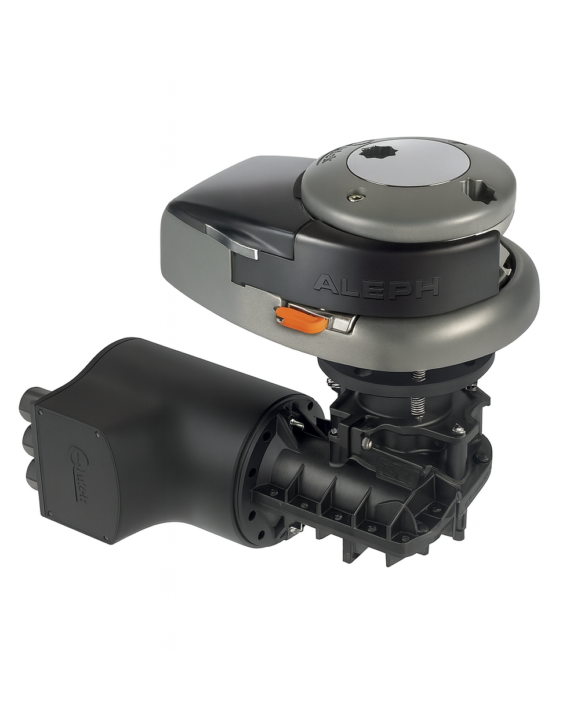

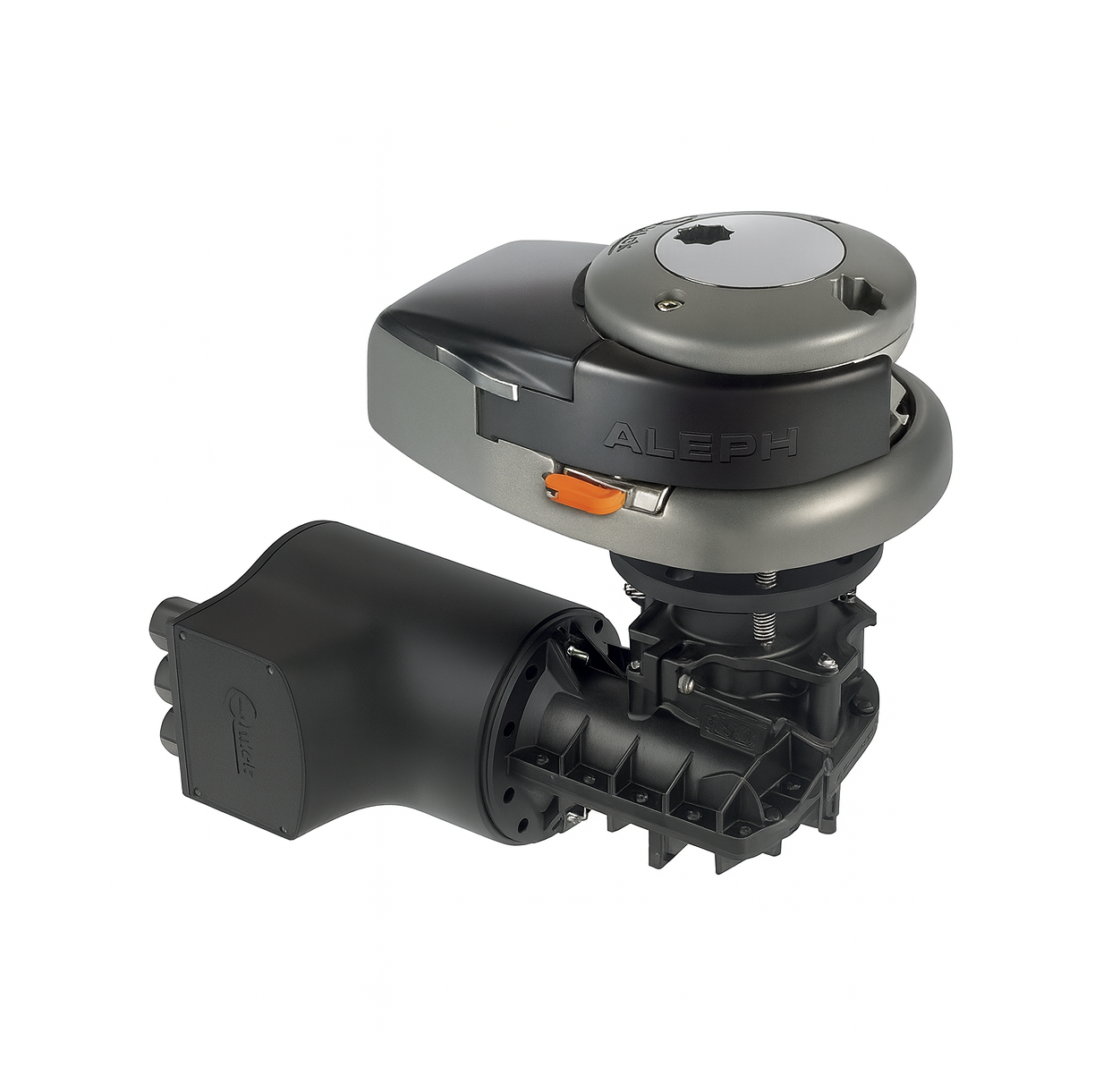

Aleph – AL3

  • Vertical windlasses
  • Base in anodized aluminium in hard oxide
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor
  • Anodized aluminium gearbox

Gypsy and Drum
Ø 130 mm / 5″1/8

Ordering Information

Aleph – AL3 12/24V for boats from 7 to 10 meters (23 – 33 ft)

Part No. .

Description

 Price ex. VAT 19%
AL3P_712

AL3 712 WINDLASS 700W 12V 08/10mm

€1,392.50
AL3_P724

AL3 724 WINDLASS 700W 24V 08/10mm

€1,497.50
AL3P_712D

AL3 712D WINDLASS 700W 12V 08/10mm D

€1,501.50
AL3P_724D

AL3 724D WINDLASS 700W 24V 08/10mm D

€1,63500

Specifications

​

General specifications
Models Aleph 700 Aleph 700 D
Motor Power 700 W 700 W
Motor Supply Voltage 12 V 24 V
Maximum Pull 850Kg/1874lbs 850Kg/1874lbs
Maximum Working Load 250Kg/551lbs 300Kg/661lbs
Working Load 80Kg/176lbs 100Kg/220lbs
Current absorption at working load (after an initial period of use) 90 A 55 A
Maximum Chain Speed (measurements taken with a gypsy for a 6 mm chain) 27,4 m/min
89.9 ft/min		 26,4 m/min
86.6 ft/min
Maximum Chain Speed at working load (measurements taken with a gypsy for a 6 mm chain) 14,4 m/min
47.2 ft/min		 14,8 m/min
48.6 ft/min
Weight (without drum) 16,4 Kg/36.2 lbs 16,4 Kg/36.2 lbs
Weight (with drum) 17,8 Kg/39.2 lbs 17,8 Kg/39.2 lbs
