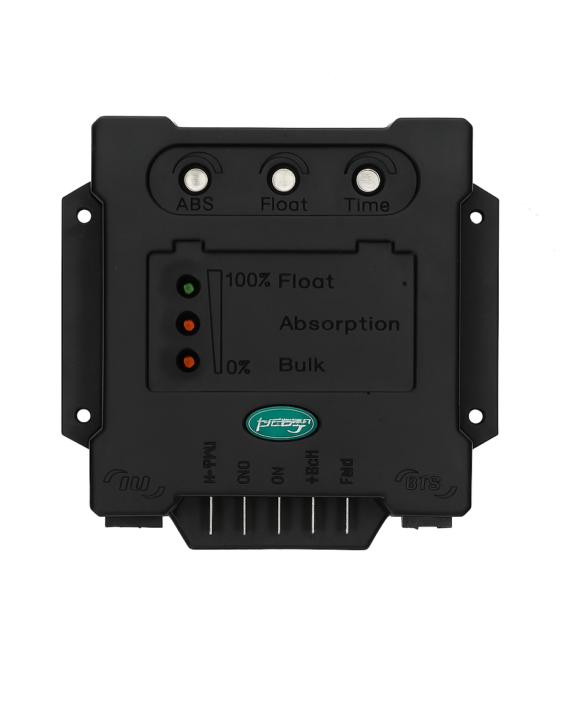

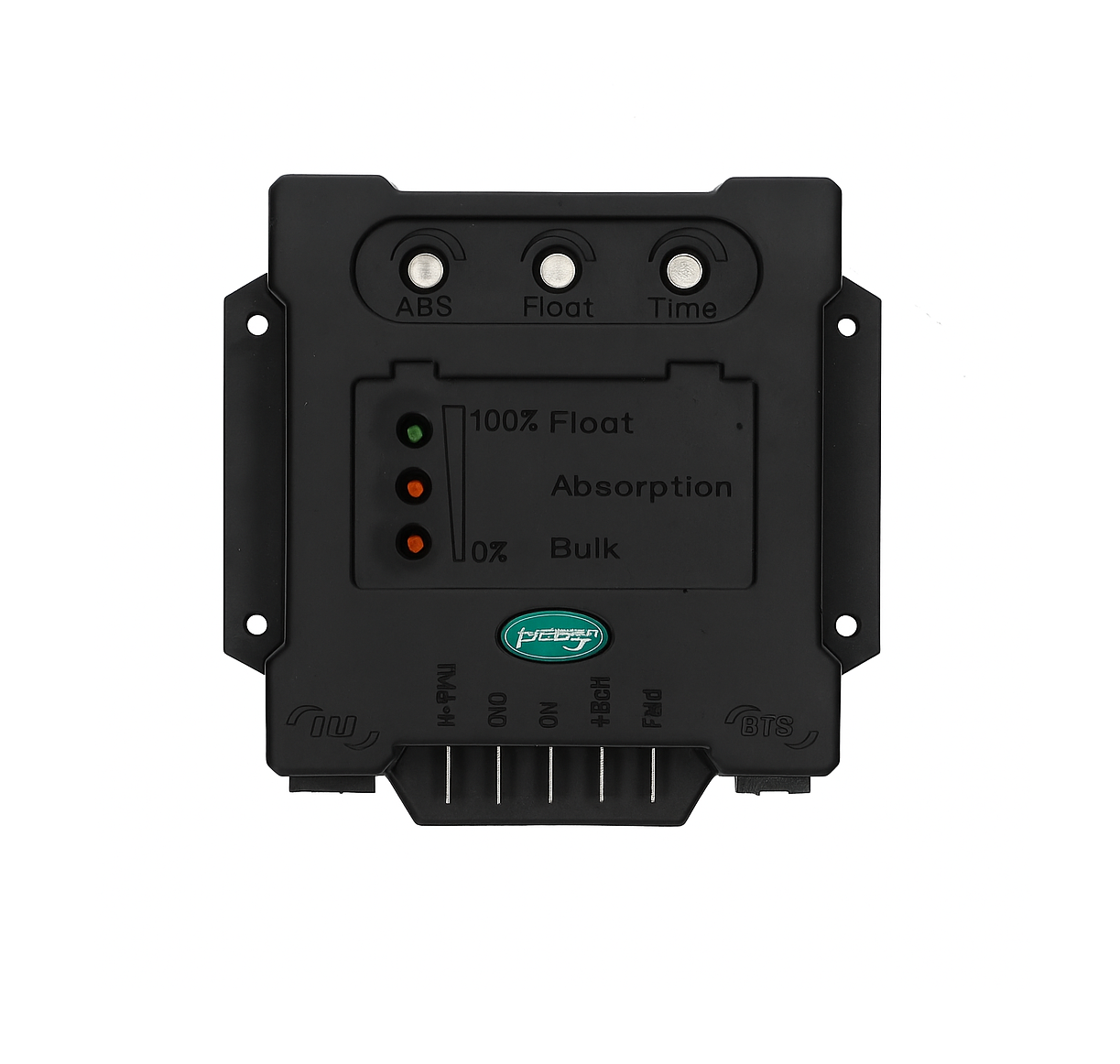

ACR CHARGE REGULATOR STANDARD

€417.00 ex. VAT 19%

Clear

12 / 24 VDC BeltPower System

This system consists of a heavy duty alternator, delivering maximal amperage at low RPM, WhisperPower’s Multi Stage ACR voltage regulator and a cable harness to connect the alternator and ACR regulator. The brackets are not provided by WhisperPower and can be supplied by recommended specialists.

WhisperPower recommends that the DC BeltPower is added to the existing engine configuration, leaving the existing DC alternators in tact.

The DC BeltPower ensures a fast and complete charge: as a result of the low rpm/ high amperage, in combination with the multi stage ACR regulator, AGM or GEL batteries will be charged fast and completely.

ACR Multi stage regulators can also be purchased without an alternator. These regulators will fit Bosch alternators.

Ordering Information

ACR CHARGE REGULATOR STANDARD

60115100 WP-ACR Charge Regulator 12 VDC – Complete  €  417,00
60115200 WP-ACR Charge Regulator 24 VDC – Complete  €  417,00

Specifications

General specifications
Nominal operation voltage 12 VDC 24 VDC
Temperature sensor Yes, incl. 6 m cable Yes, incl. 6 m cable
Cable harness Yes, length 1.5 m Yes, length 1.5 m
Connection plug regulator/alternator WhisperPower Alternator WhisperPower Alternator
Alternator type WhisperPower, low voltage, brush type WhisperPower, low voltage, brush type
Electrical specifications
Charge voltage – Absorption 28.50 VDC 28.50 VDC
Charge voltage – Float 26.50 VDC 26.50 VDC
Absorption Voltage range 27 – 31 VDC 27 – 31 VDC
Float Voltage range 26 – 27.8 VDC 26 – 27.8 VDC
Absorption time 0h – 4.5h 0h – 4.5h
Temperature Compensation -60 mV / °C -60 mV / °C
Rev Counter input No/Yes No/Yes
Operation temperature -20 °C to 80 °C -20 °C to 80 °C
Settings / Read out specifications
Voltage settings By trimmers on device By trimmers on device
Time settings By trimmers on device By trimmers on device
Status read-out LED’s LED’s
Communication specifications
Communication bus None/WhisperConnect None/WhisperConnect
Powered bus No No
Settings by bus No/Yes No/Yes
Status read out by bus No/Yes No/Yes
Mechanical specifications
Dimensions [mm] [L x W x H] 117 x 120 x 26,67 117 x 120 x 26,67
Dimensions [inch] [L x W x H] 4,60 x 4,72 x 1,05 4,60 x 4,72 x 1,05
Weight 0.4 kg 0.4 kg
Packaging dimensions [L x W x H] 205 x 180 x 160 205 x 180 x 160
Protection degree IP65 IP65
Housing Material VL 94-VO VL 94-VO
