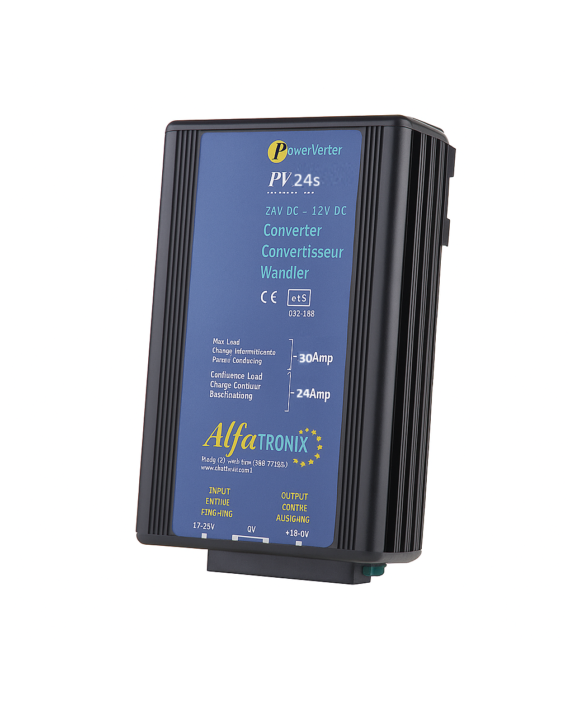

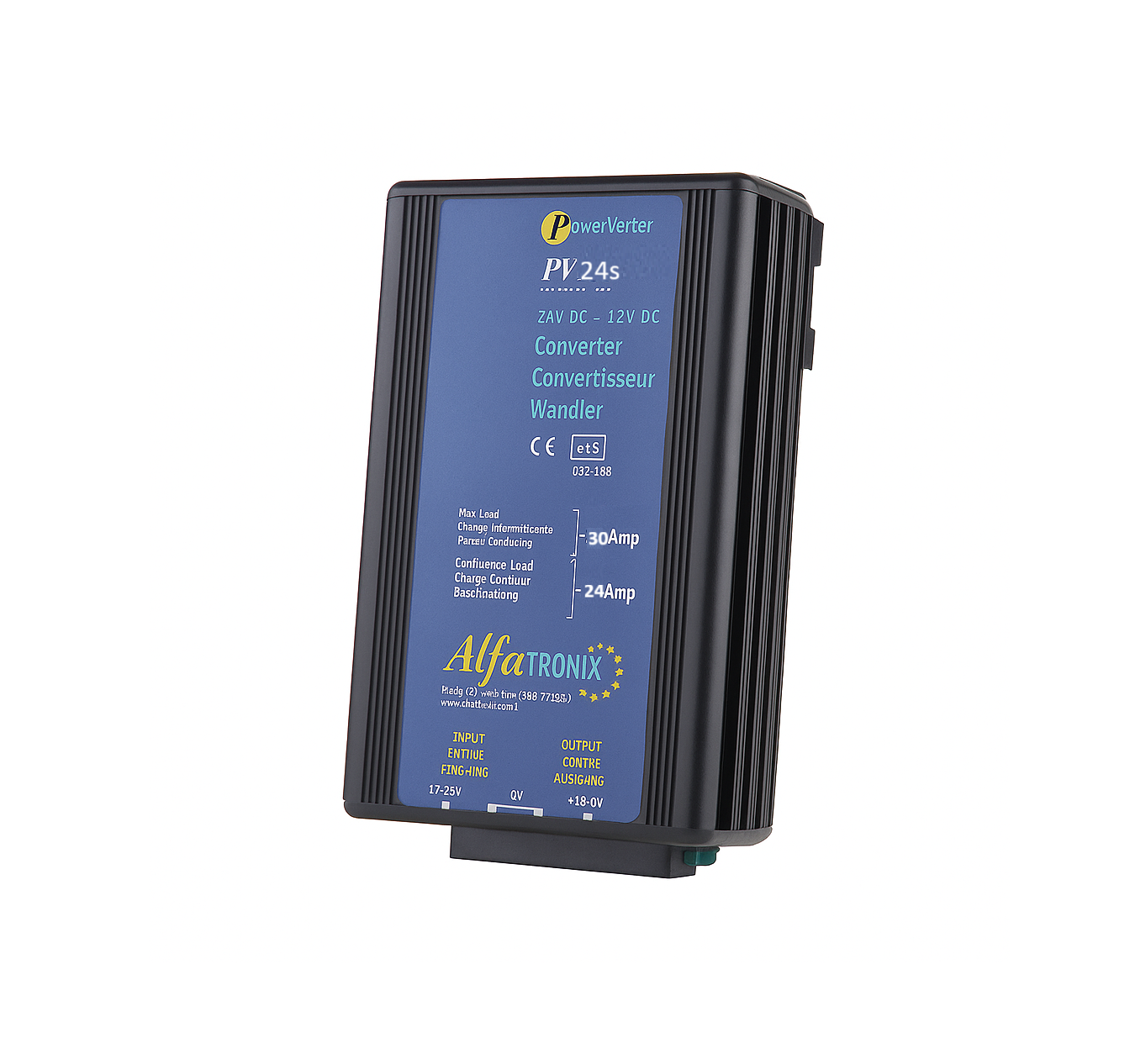

24v-12v 24/30 amp, Switch mode Power Voltage Converter
€197.67 ex. VAT 19%
Features
o Cool running
o Power conversion efficiency typically 93 percent
o Low-mass, Surface Mount Technology components for small size and resistance to vibration
o Tamper proof, marine grade aluminum case sealed with nylon caps
o Low off load current – less than 10mA
o Quick fit installation clip, fixed in three points to allow mounting on uneven surfaces
o True power conversion, not just a voltage dropper
Ordering Information
24v-12v 24/30 amp, Switch mode Power Voltage Converter
Part No. | Description | Price ex. VAT 19% |
---|---|---|
PV24s | 24v-12v 24/30 amp, Switch mode Power Voltage Converter | € 197.67 |
Specifications
General specifications | |
---|---|
Model | PV24s |
Max Load Current Continuous/Intermittent | 24A/30A |
Case Dimensions | 167 x 87 x 50 mm |
Weight | 620 g |
Normal Input Voltage | 17-32 VDC |
Output Voltage | Half of input, never to exceed 14.4 VDC |
Off Load Current | < 10mA |
Mean Time Between Failures | 162 years (HRD4) |
Normal Operating Temps | -25°C to +30°C |
Connections | 4 push-on 6.5mm connectors |
Environmental protection | Dust, water and impact to IPS33 |
