€2,600.00–€2,900.00 ex. VAT 19%

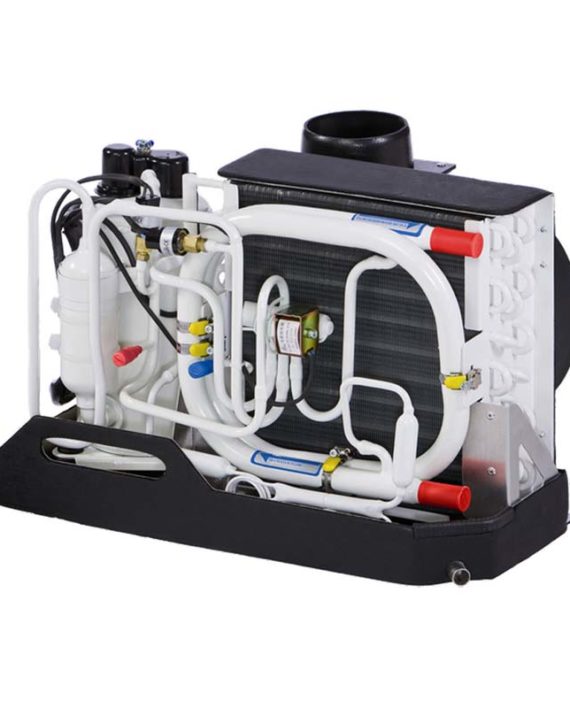

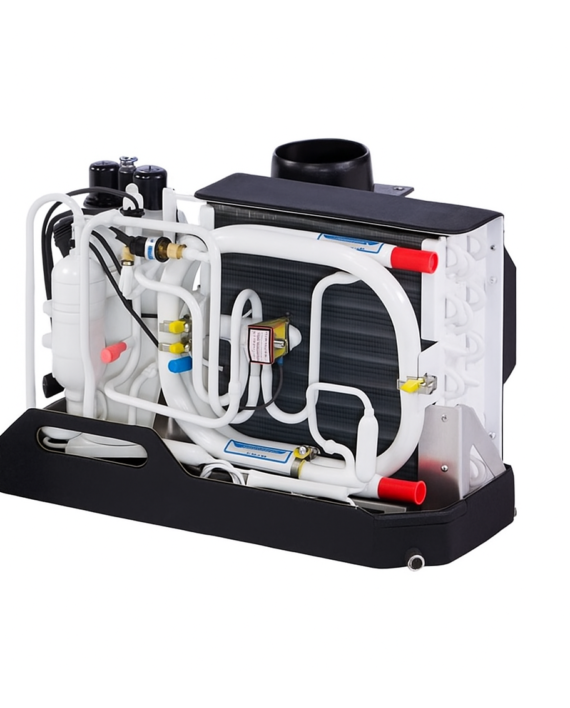

Webasto BlueCool self-contained air-conditioning units have one hermetically encapsulated compressor. The refrigerant circuit includes not only the compressor but also a condenser, a throttle element (capillary tube) as well as an evaporator. Self-contained units are extremely compact. All components (compressor, condenser, evaporator and blower) required for cooling a cabin, a salon, a lounge or another room are mounted on a stainless steel tray. Webasto self-contained units are available in different power ratings. This means you are sure to find the ideal system for the specific needs of almost all room sizes requiring cooling in a yacht

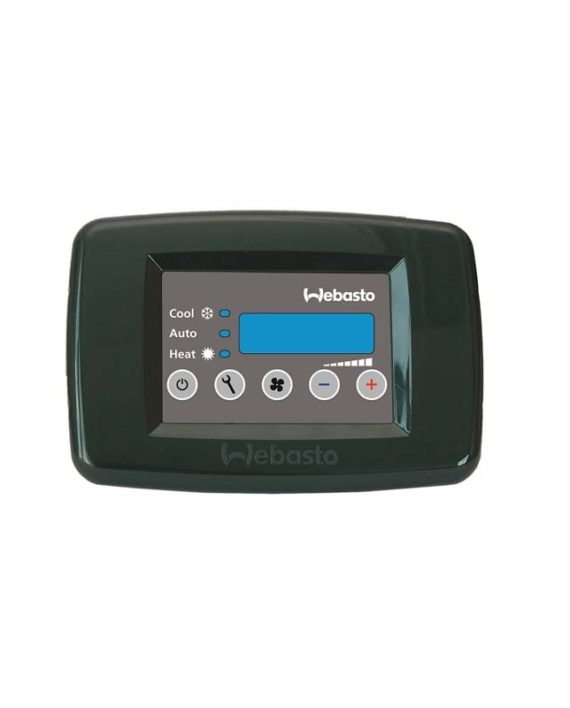

System includes the control unit
| In Stock | Part No. | Description | Price ex. VAT 19% |
|---|---|---|---|
| TBA | ALM-AC-508 | WEBASTO AC UNIT 8000BTU | € 2.900,00 |
| TBA | ALM-AC-510 | WEBASTO AC UNIT 10000BTU | TBA |
| TBA | ALM-AC-516 | WEBASTO AC UNIT 16000BTU | € 2.600,00 |
| TBA | ALM-AC-520 | WEBASTO AC UNIT 20000BTU | TBA |
| General specifications | ||||
|---|---|---|---|---|
| Type | S8 | S10 | S16 | S20 |
| Cooling capacity* (BTU / h) | 8000 | 10000 | 16000 | 20000 |
| Cooling capacity* (kW) | 2,4 | 2,9 | 4,7 | 5,9 |
| Voltage (V) | 230 | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Dimensions L x W x H (mm) | 400 X 320 X 305 | 475 X 330 X 310 | 540 X 350 X 370 | 590 X 340 X 370 |
| Blower connection (mm) | 100 | 100 | 125 | 125 |
| Weight (kg) | 20 | 22 | 31 | 34 |
