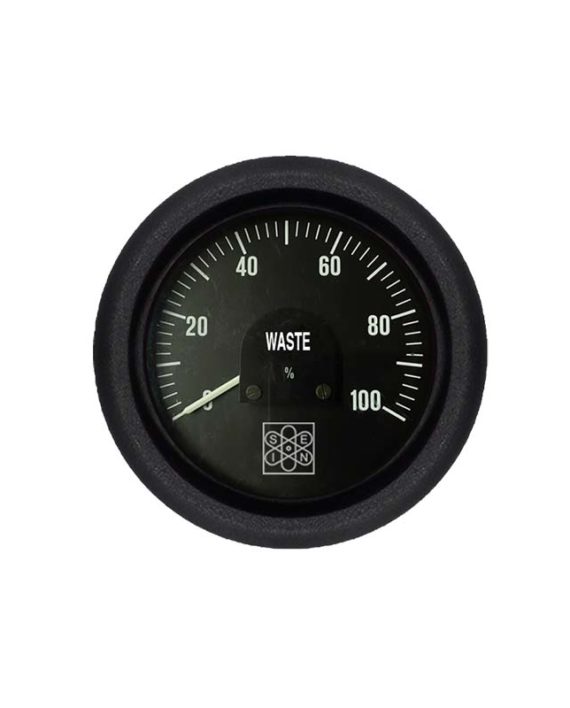

New-generation level indicators are available for standard panel installation, with dimensions Ø Ø 100 mm. These indicators have been designed with state-of-the-art technology, compatible with our TIL level sensors outputs 4-20mA. These indicators use advanced “Direct Digital” microprocessor technology to grant nominal 0,3° over 240° resolution and highest durability. New LED backlight system. Zero and full scale adjustment are easy thanks to an auto-calibration feature. Waterproof IP65 on front. Multi-voltage power supply 12-24V.
Ordering Information
Fresh Water Level Instruments
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|
TBA | ILC13414 | WASTE LEVEL INDICATOR RQ Ø100 MM SCALE RANGE 0-100% ON240° | € 350,00 |
TBA | ILC13414/1V | WASTE LEVEL INDICATOR RQ Ø100 MM SCALE RANGE 0-100% 0-1V | € 350,00 |
TBA | ILC13414/20 | WASTE LEVEL INDICATOR RQ Ø100 MM SCALE RANGE 0-100% 4-20MA | € 350,00 |
TBA | ILC13414/M | WATER LEVEL INDICATOR RQ Ø100 MM SCALE RANGE 0-100% MASTER | € 350,00 |
TBA | ILC13414/R | WATER LEVEL INDICATOR RQ Ø100 MM SCALERANGE 0-100% REPEATER | € 350,00 |
Specifications
General specifications | |
---|---|
Function | Water |
Range | 0-100% or scale in liters |
Dimensions | Ø 100 mm |
Power supply | 24 VDC |
Backlighting | Bulb 2 x 3 W white |
Dial color | Black |
Protection grade | IP67 |
