Simple and based on the magnetic coupling between a magnet placed in the float and a static reed electronic circuit in the sensor pipe.
The complete electric insulation “intrinsically-safe” design avoids any possible interference and galvanic current in the tank. Specifically designed for marine use and entirely made in stainless steel AISI316 the vertical level sensor has many details that make it unique in the market. The float is made of special “filled” material to avoid any possible leak and a removable sieger ring in the bottom of the sensor allows the float replacement. A special cable holder in the top of the sensor allows the inspection and replacement of the electronic circuit. The electronic circuit uses special selected reeds elements that are soldered by hand with a special technique that prevents any damage in case of vibration and twisting.
Ordering Information

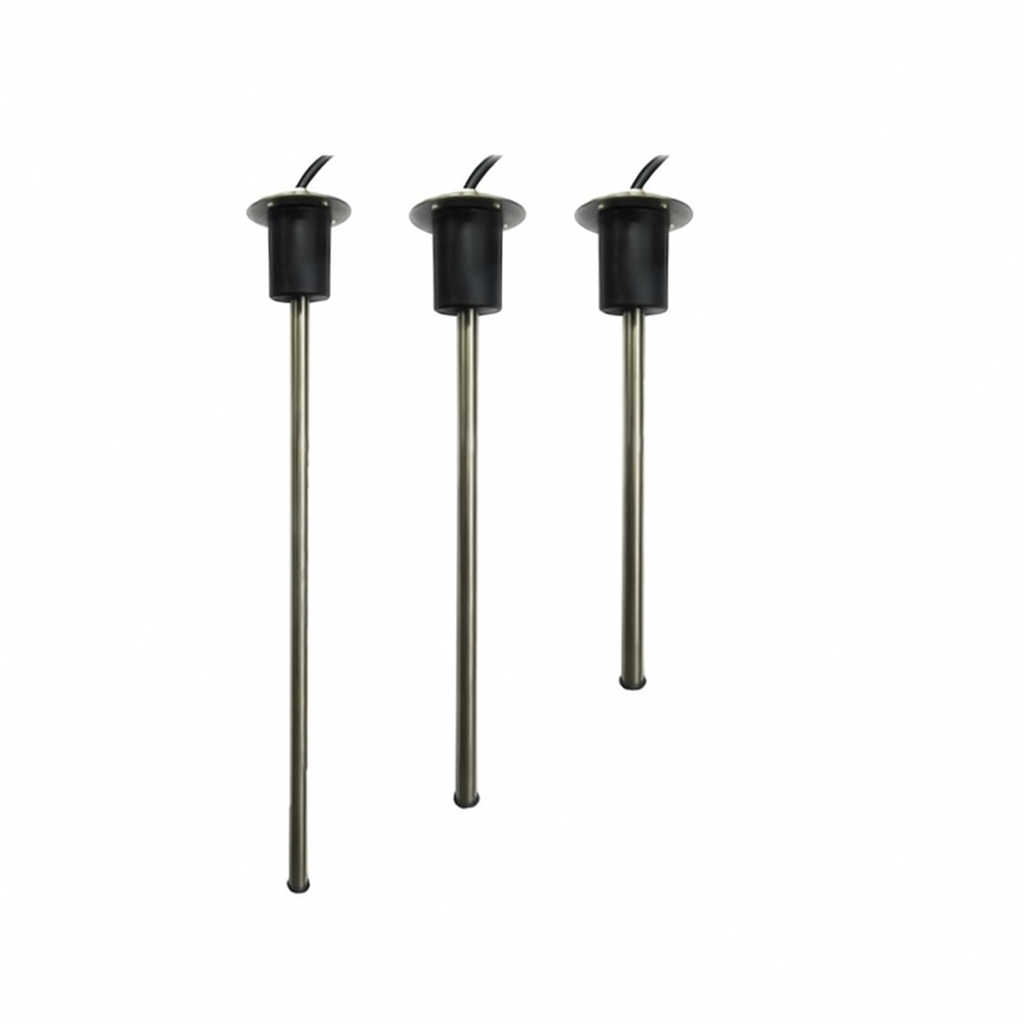

VSG Line -Water and fuel level sensors VSG
Line 10-180 OHM Output
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|
3 | VSG40716/V | WATER/FUEL LEVEL SENDER Ø70 L=160 MM VDO10-180 OHM OUTPUT | € 55,00 |
4 | VSG40720/V | WATER/FUEL LEVEL SEND Ø70 L=200 MM.VDO 10-180 OHM OUTPUT | € 55,00 |
TBA | VSG40725/V | WATER/FUEL LEV SEND Ø70 L=250 MM. VDO 10- 180 OHM OUTPUT | € 65,00 |
2 | VSG40730/V | WATER/FUEL LEVEL SENDER Ø70 L=300 MM. VDO 10-180 OHM OUTPUT | € 65,00 |
1 | VSG40735/V | WATER/FUEL LEVEL SENDER Ø7L=350 MM. VDO 10-180 OHM | € 73,00 |
2 | VSG40740/V | WATER/FUEL LEVEL SENDER Ø70 L=400 MM.VDO 10-180 OHM OUTPUT | € 82,00 |
2 | VSG40745/V | WATER/FUEL LEVEL SENDER Ø70 L=450 MM VDO 10-180 OHM OUTPUT | € 90,00 |
1 | VSG40750/V | WATER/FUEL LEVEL SENDER Ø70 L=500 MM. VDO 10-180 OHM OUTPUT | € 98,00 |
3 | VSG40755/V | WATER/FUEL LEVEL SENDER Ø70 L=550 MM. 10- 180 OHM OUTPUT | €103,00 |
2 | VSG40760/V | WATER/FUEL LEVEL SENDER Ø70 L=600 MM.VDO 10-180 OHM OUTPUT | €115,00 |
5 | VSG40765/V | WATER/FUEL LEVEL SENDER Ø70 L=650 MM. VDO 10-180 OHM | €120,00 |
4 | VSG40770/V | WATER/FUEL LEVEL SENDER Ø70 L=700 MM. VDO 10-180 OHM OUTPUT | €130,00 |
2 | VSG40775/V | WATER/FUEL LEVEL SENDER Ø70 L=750 MM. VDO 10-180 OHM OUTPUT | €138,00 |
2 | VSG40780/V | WATER/FUEL LEVEL SENDER Ø70 L=800 MM. VDO OUTPUT | €145,00 |
TBA | VSG40785/V | WATER/FUEL LEVEL SENDER Ø70 L=850 MM. VDO OUTPUT | €160,00 |
TBA | VSG40790/V | WATER/FUEL LEVEL SENDER Ø70 L=900 MM. VDO OUTPUT | €165,00 |
TBA | VSG40795/V | WATER/FUEL LEVEL SENDER Ø70 L=950 MM. VDO OUTPUT | €170,00 |
Specifications
General specifications | |
---|---|
Range | 10-180 Ω |
Flange | Ø 70 mm |
Flange Holes | 5 holes |
Bolt circle | Ø 54 mm |
Float Ø | Ø 42 mm |
Float material | NBR |
Holes Ø | 5,25 mm |
Max voltage | 28 VDC |
Operating temperature | -25 +70° C |
