VRS
Switching voltage reducers
Important advantage
Low residual output fluctuation (ripple lower than 15 mV RMS)
Protections
• Protection against shorts
• Output overvoltage
• Reverse output polarity.

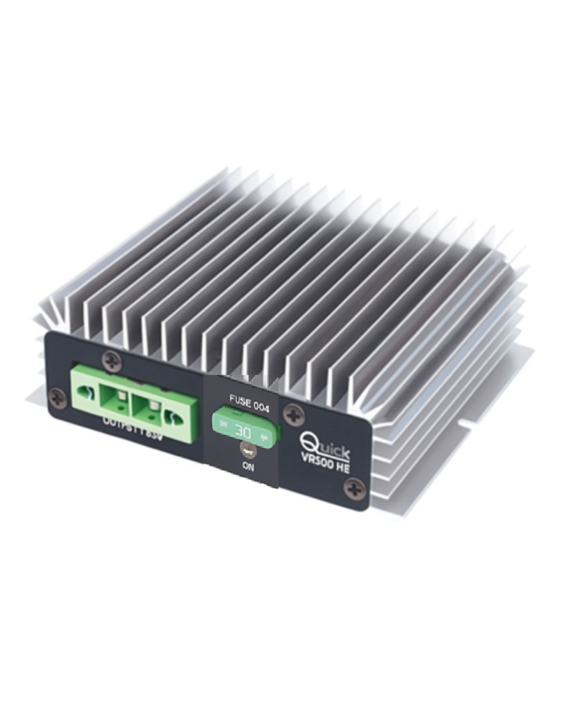

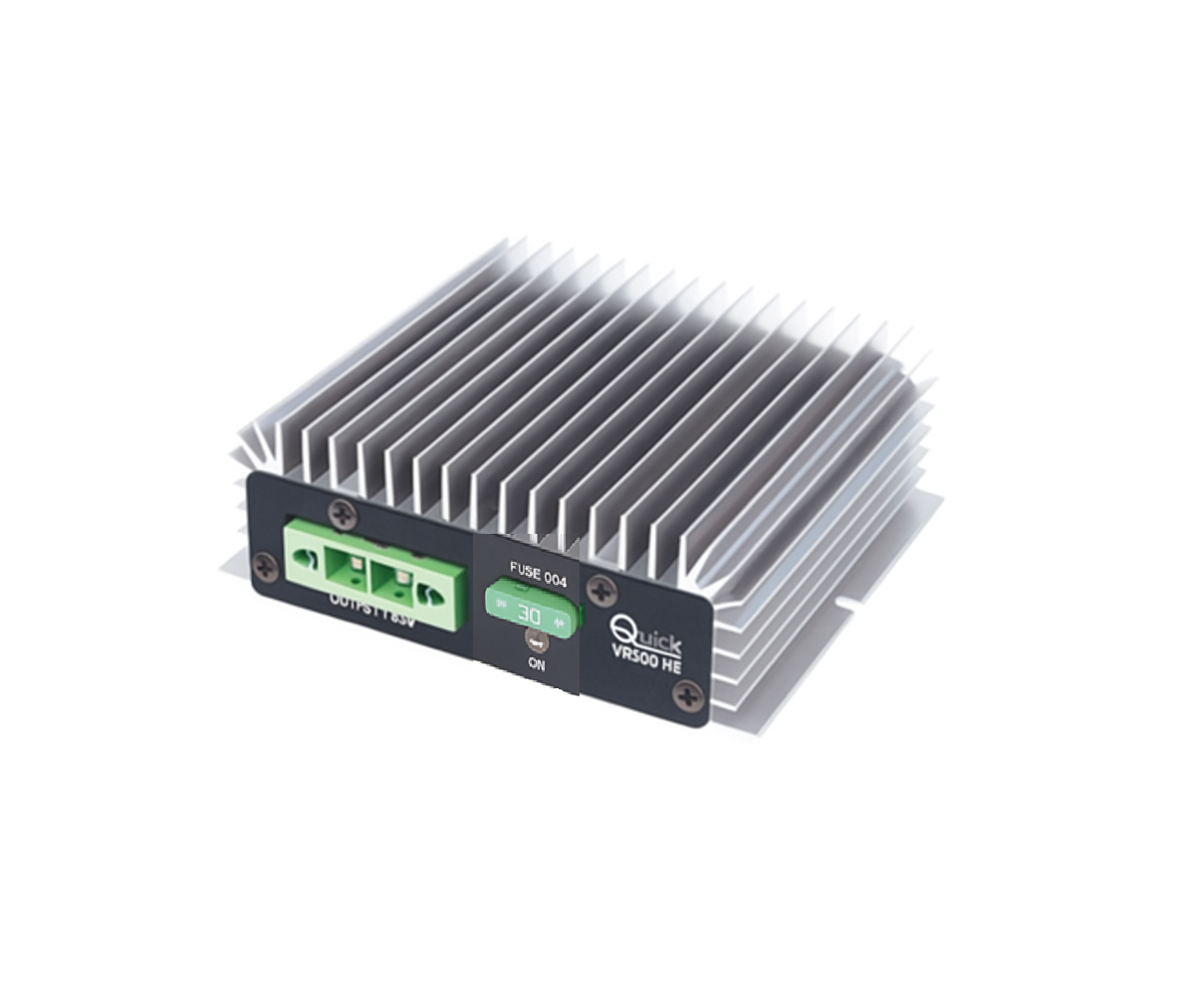

Voltage reducer VRS30 Hi Efficiency – 24/12V – 30A
€419.00 ex. VAT 19%
Quick has developed a line of voltage reducers that guarantee superior performance levels with respect to the standard normally available on the market.
Ordering Information
Voltage reducer VRS30 Hi Efficiency – 24/12V – 30A
|
Part No. |
Description | Price EX. VAT 19% |
| FZVRS30HE000A00 | VRS30 HE VOLTAGE REDUCER 24/12V 30A |
€419,00 |
Specifications
| General specifications | |
|---|---|
| Model | VRS 30 HE |
| Maximum output currrent (for continuous operation) | 30 A |
| Efficiency (at the rated input voltage and maximum nominal output current) | > 95% |
| Rated output voltage | 13,5 Vdc ± 0,5 Vdc |
| Output voltage stability | 1% |
| Residual ripple | <15mV max RMS |
| Supply voltage | 24 Vdc |
| Maximum absorption | 22.2 A |
| Cooling | natural |
| Case material | Aluminium |
| Dimensions W x H x D | 120 x 157 x 40 mm 4″23/32 x 6″3/16 x 1″37/64 |
| Weight | 500g / 1.1lb |
