VRS
Switching voltage reducers
Important advantage
Low residual output fluctuation (ripple lower than 50 mV RMS)
Protections
• Protection against shorts
• Output overvoltage
• Reverse output polarity.

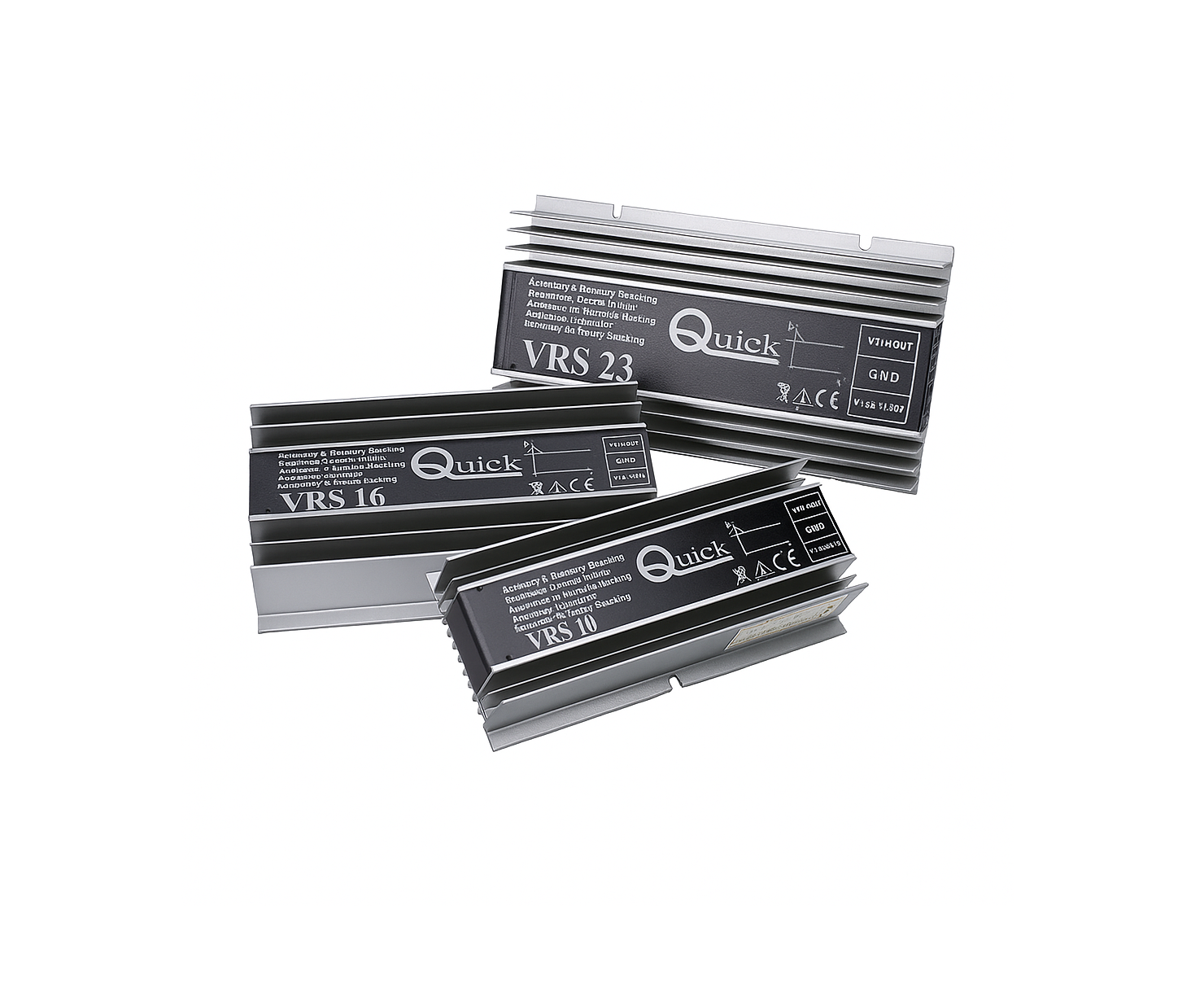

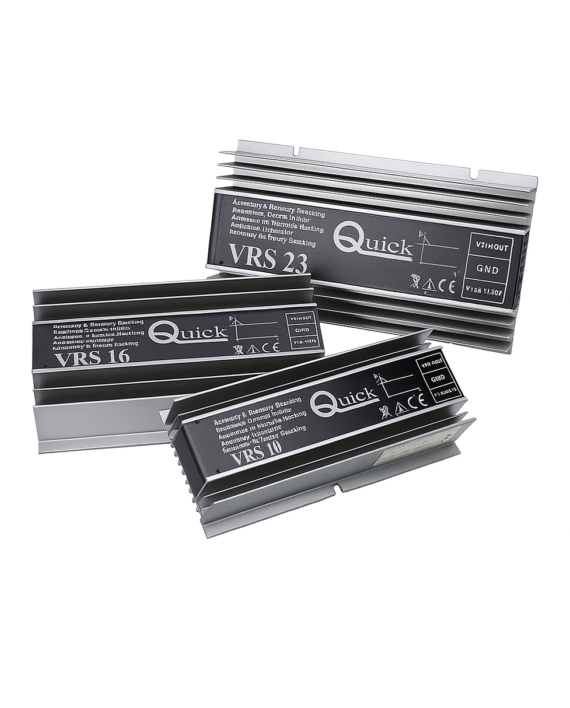

Voltage reducer VRS23 – 24/12V – 23A
€127.50 ex. VAT 19%
Quick has developed a line of voltage reducers that guarantee superior performance levels with respect to the standard normally available on the market.
Ordering Information
Voltage reducer VRS23 – 24/12V – 23A
|
Part No. |
Description | Price EX. VAT 19% |
| FZVRS2300000B00 | VRS23 VOLTAGE REDUCER 24/12V 23A B |
€127,50 |
Specifications
| General specifications | |
|---|---|
| Model | VRS 23 |
| Maximum output currrent (for continuous operation) | 18 A |
| Maximum output load (for intermittent operation – 1 min ON, 1 min OFF at an ambient temperature of 69,8°F) | 23 A |
| Rated output voltage | 13,5 Vdc ± 0,5 Vdc |
| Output voltage stability | 1% |
| Residual ripple | 30mV max RMS |
| Supply voltage | 20 / 30 Vdc |
| Maximum absorption | 17.8 A |
| Cooling | natural |
| Case material | Aluminium |
| Dimensions W x H x D | 200 x 116 x 41 mm 7″7/8 x 4″9/16 x 1″19/32 |
| Weight | 780g / 1,72lb |
