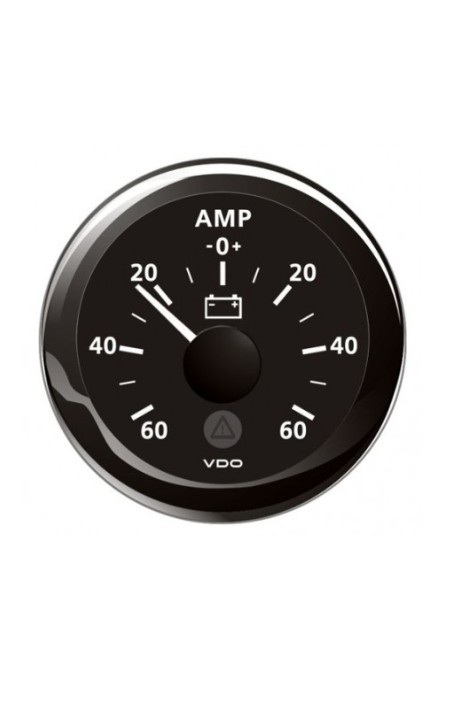

VL Ammeter 52mm +/-60A

45.00 ex. VAT 19%

The VL Marine Ammeter is built to provide reliable current monitoring for boats and marine electrical systems. Designed with a clear +/-60A range, this 52mm gauge ensures precise tracking of your vessel’s electrical load, helping prevent overloads and maintain safe, efficient performance on the water.

The VL Marine Ammeter is built to provide reliable current monitoring for boats and marine electrical systems. Designed with a clear +/-60A range, this 52mm gauge ensures precise tracking of your vessel’s electrical load, helping prevent overloads and maintain safe, efficient performance on the water.

With its black dial face and easy-to-read display, the VL Ammeter fits seamlessly into modern or classic helm stations. Engineered for durability, it withstands the demanding conditions of marine environments, delivering long-term reliability in both freshwater and saltwater applications

Highlights

  • Black – Bezel black round
  • Panel hole diameter: 52 mm – 2 1/16″
  • Range: -60A to +60A DC
  • Input signal: -60 to +60 mV
  • Lens: Dual – Anti-Fog
  • Exchangeable clip-on bezels
  • Ideal for boats, yachts, and other marine applications

ORDERING INFORMATION

In Stock Part No. Description Price ex. VAT 19%
TBA A2C59512328 VL Ammeter 52mm +/-60A Black € 45,00

SPECIFICATIONS

General specifications
Installation (Hole) diameter and Outside diameter 52 mm – 2 1/16 Inch and 59 mm – 2 1/3 Inch
Installation depth 50 mm
Locking height with Spinlock nut 0.5 mm – 20 mm
Locking height with bracket 2 mm – 15 mm (Optional)
Flushmount Optional kit A2C59510864

Functionality:

Ampere measurement range -60A to +60A DC
Shunt Not included
Signal input ammeter Veratron Shunt 0 to 60 mV DC
Accuracy < 2.5 % of the full scale reading
Connection Hirschmann 8 pins MQS connector

Power supply:

Operating voltage 8 to 32 Volt DC
Current consumption < 140 mA including warning LED
Reverse polarity protection Yes – 5 Minutes
Short circuit protection Yes – 1 Minute

Dial & Pointer:

Deflection angle 240°
Dial colour Black
Dial Illumination Amber LED backlight 605nm
Pointer White LED backlight
Warning LED Red (632nm)

Design:

Model Veratron ViewLine Marine
Lens Dual – Anti-glare – Anti-Fog
Standard bezel Round black (Interchangeable)

Protection and standards:

Front protection class IP67 (IEC 60529)
Rear protection class IP52
Relative humidity Maximum 95%
Operating temperature -30°C to +80°C (Plastic bezel)
CE standard Yes
DNV GL Certification Yes
Mechanical shock continuous 25G – 6ms – 1Hz
Mechanical single shock 100G – 11ms
Free fall test 1 Meter – 3x
Housing flame retarding UL94-VD
