Temperature gauges Ø 52 mm VSG Line

32.00 ex. VAT 19%

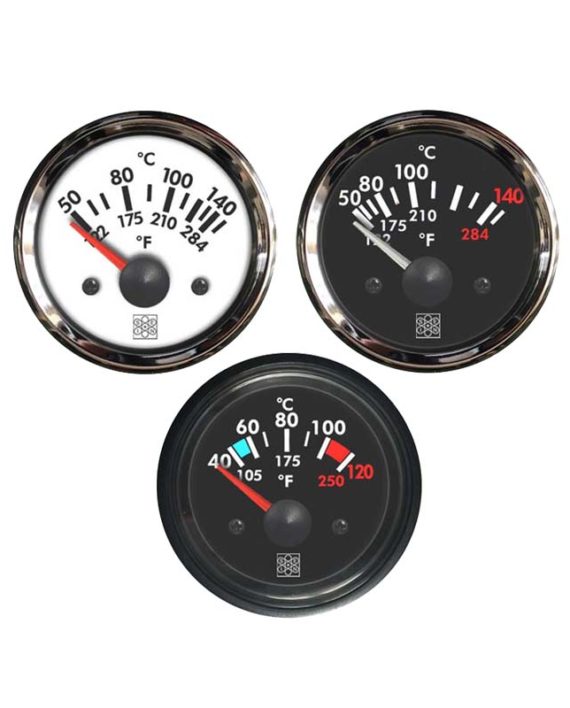

Water/oil temperature indicators, available in 40-120°C and 50-150°C ranges.

Clear

The Seagull line offers an updated selection of instruments and sensors expressly designed for nautical application allowing the monitoring of all basic engine and navigation variables. During the development of the seagull line our engineers considered all parameters including reliability, performance, design and easy operation with one main objective in mind: to offer you precisely what you were looking for. The seagull line, tested over fifteen years of presence in the market, has been chosen as original equipment by several shipbuilders and engine manufacturers. Whatever your preference may be, you can count on this : our help for a safe and enjoyable navigation.

Water/oil temperature indicators, available in 40-120°C and 50-150°C ranges. Crucial in detecting overheating and to prevent engine damage. Double indication °C and °F. Compatible with VDO and Veglia temperature sensors.
Widerange of single or double pole temperature sensors also with optional alarm contact.

Ordering Information

Temperature gauges Ø 52 mm VSG Line

Part No. Description Price ex. VAT 19%
VSG20435/V WATER TEMP GAUGE RQ Ø52MM BLACK DIAL 40- 120°WHITE POINTER 12V VDO € 32.00
VSG20135/V WATER TEMP GAUGE RQ Ø52MM WHITE DIAL 40- 120°RED POINTER 12V VDO € 32.00
VSG20335/V WATER TEMP GAUGE CR Ø52MM BLACK DIAL 40- 120°WHITE POINTER 12V VDO € 32.00
VSG20035/V WATER TEMP GAUGE CR Ø52 MM 40-120° WHITE RED POIN 12V VDO € 32.00
VSG20440/V WATER TEMP GAUGE RQ Ø52 MM 0-120° BLACK- WHITE POINTER VDO 24V € 32.00
VSG20140/V WATER TEMP GAUGE RQ Ø52MM WHITE DIAL 40- 120°RED POINTER 24V VDO € 32.00
VSG20340/V WATER TEMP GAUGE CR Ø52MM BLACK DIAL 40- 120°WHITE POINTER VDO 24V € 32.00
VSG20040/V WATER TEMPERATURE  CR Ø52 MM 40-120° WHITE RED POINTER VDO 24V € 32.00
VSG20435 WATER TEMP GAUGE RQ Ø52MM BLACK DIAL 40- 120°RED POINTER 12V Veglia calibration € 32.00
VSG20135 WATER TEMP GAUGE RQ Ø52MM WHITE DIAL 40- 120°RED POINTER 12V Veglia calibration € 32.00
VSG20335 WATER TEMP GAUGE CR Ø52MM BLACK DIAL 40- 120° RED POINTER 12V Veglia calibration € 32.00
VSG20035 WATER TEMP GAUGE CR Ø52MM  40-120° WHITE RED POINTER 12V Veglia calibration € 32.00
VSG20440 WATER TEMP GAUGE RQ Ø52MM BLACK DIAL 40- 120°RED POINTER 24V Veglia calibration € 32.00
VSG20140 WATER TEMP GAUGE RQ Ø52MM WHITE DIAL 40- 120°RED POINTER 24V Veglia calibration € 32.00
VSG20340 WATER TEMP GAUGE CR Ø52MM BLACK DIAL 40- 120°RED POINTER 24V Veglia calibration € 32.00
VSG20040 WATER TEMP GAUGE CR Ø52MM  40-120° WHITE  RED POINTER 24V Veglia calibration € 32.00

Specifications

General specifications
Range 40-120° C, 40-150° C
Case diameter Ø 52 mm
Mounting hole & system Ø53. Mounting brackets
Depth 52 mm
Input Sensor VDO ( 287-23 Ω ) Sensor Veglia ( 992-82 Ω )
RQ series cover lens Double lens anti-fog chamber
CR series cover lens Glass
Illumination Red
Housing Nylon PA66
Connection Fast-on
Power supply 12 VDC
Power consumption 150 mA max + backlighting
Operating temperature -10 +70° C
Protection IP67 on the front
Electromagnetic compatibility IEC60945
Vibration and shock resistance IEC60945
