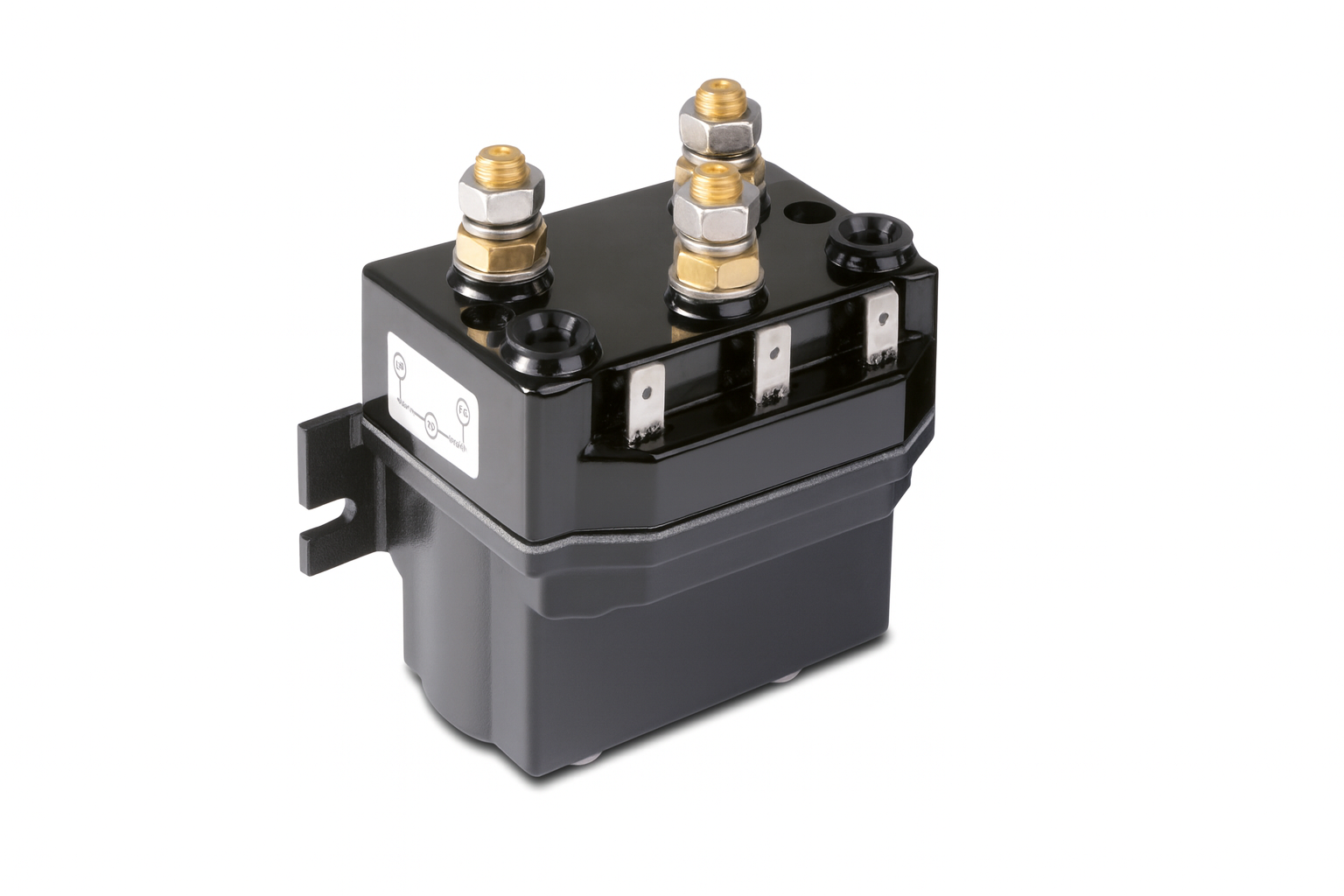

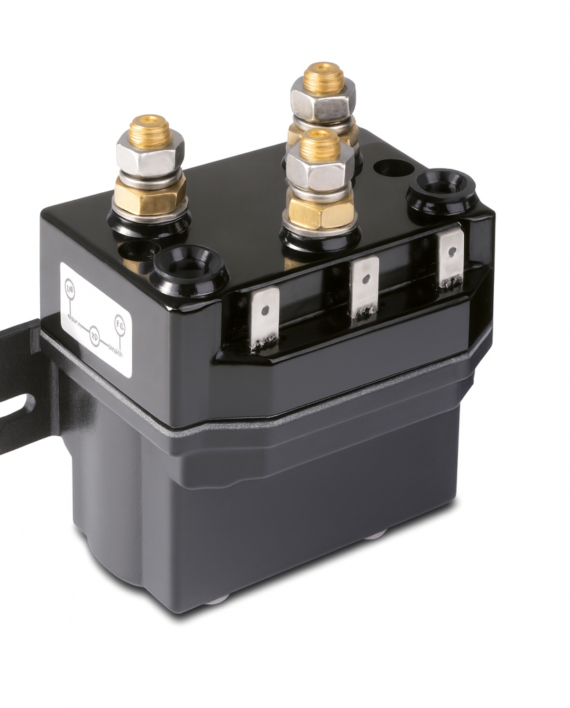

The T6315-12 solenoid unit is a high-reliability electrical switching component used to control 12V windlass and capstan motors. Acting as the interface between the control system and the motor, the solenoid safely manages the high current required during anchor deployment and retrieval.
With a 150-amp continuous current capacity, the unit is designed to handle the heavy electrical loads generated by marine anchoring equipment. It ensures smooth and consistent motor activation when used with control panels, foot switches, chain counters, or wireless windlass controllers.
The IP66 waterproof enclosure protects internal electrical components from saltwater spray, moisture, and harsh marine conditions. This makes the T6315-12 a reliable choice for long-term use in exposed deck installations.
Additionally, the unit is designed as a direct replacement for older T501 and T510 solenoid units, allowing easy upgrades or maintenance without major wiring modifications.
Key Features
• Heavy-duty 150A solenoid unit for windlass motors
• 12V DC operation
• IP66 waterproof protection for marine environments
• Direct replacement for T501 and T510 models
• Reliable switching for windlass and capstan motor control
• Easy integration into existing anchoring systems
