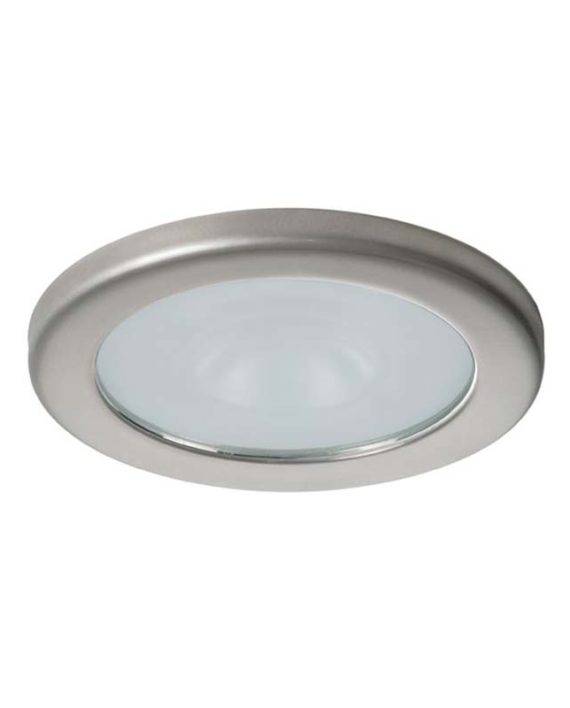

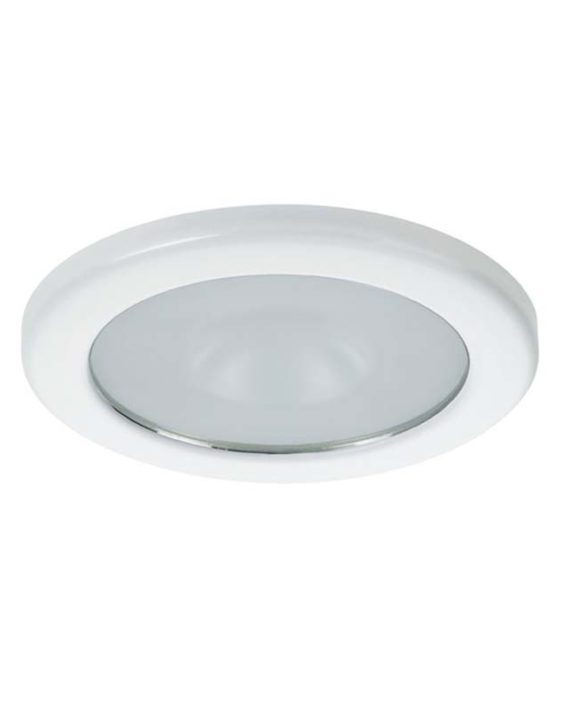

SONIA 4W Led Downlight

€107.00–€134.50 ex. VAT 19%

Elegant downlight, made with 316 AISI stainless steel.
Latest generation power LED and an optic studied to guarantee effective lighting.

Clear

Ordering Information

SONIA 4W Led Downlight

Part No.

Description

Price ex. VAT 19%
FASP0912X1ACE00

L-SONIA DL105 WHITE/RED 1030V SSTE E00 1P

€107,00
FASP0912X19CG00

L-SONIA LED WRM/BLU 1030 SSTE E00 1P

€107,00
FASP2882X12CE00

L-SONIA DL105 LED WRM 1030 SSTE E00 1P

€134,50
FASP2882X11CE00

L-SONIA DL105 LED DAY 1030 SSTE E00 1P

€134,50
FASP0912S12CE00

L-SONIA DL105 LED WRM 1030 SATIN E00 1P

€134,50
FASP0912B11CE00

L-SONIA DL105 LED DAY 1030 WHITE E00 1P

€134,50
FASP0912B12CE00

L-SONIA DL105 LED WRM 1030 WHITE E00 1P

€134,50
FASP0912S11CE00

L-SONIA DL105 LED DAY 1030 SATIN E00 1P

€134,50
FASP0912X12CD00

L-SONIA DL105 LED WRM 1030 SSTEEL D00 1

€134,50
FASP0912B11CD00

L-SONIA DL105 LED DAY 1030 WHITE D00 1P

€134,50
FASP0912S11CD00

L-SONIA DL105 LED DAY 1030 SATIN D00 1P

€134,50
FASP0912X11CD00

L-SONIA DL105 LED DAY 1030 SSTEEL D00 1

€134,50
FASP0912B12CD00

L-SONIA DL105 LED WRM 1030 WHITE D00 1P

€134,50

Specifications

SPECIFICATIONS
Power type Constant Voltage
Light source 0 x LED
Supply 10 ÷ 30 V
Power consumption 4 W
Current consumption 0.16 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 66
DIMENSIONS
Frame Ø 4 9/64″
Recess 34 mm
Hole Ø 3 1/8″

DESIGN
Frame material AISI 316 S/STEEL
Finishings Mirror Polished / Satin / White 9010
Light colors Daylight / Warm White / Daylight-Blue / W.White-Blue / Daylight-Red / W.White-Red
Mounting Screws
PHOTOMETRIC DATA
Daylight 3800-4100 °K
CRI ≥ 80
Angle 40°
Light flow 266 lm
Ligthness – distance 1 m Ø 0.73 m 266.2 lux
Ligthness – distance 2 m Ø 1.45 m 66.5 lux
Ligthness – distance 3 m Ø 2.18 m 29.6 lux
Warm White 2900-3100 °K
CRI ≥ 80
Angle 40°
Light flow 252 lm
Ligthness – distance 1 m Ø 0.73 m 241.8 lux
Ligthness – distance 2 m Ø 1.45 m 60.5 lux
Ligthness – distance 3 m Ø 2.18 m 26.9 lux
Daylight – Blue
CRI ≥ 80
Angle 40°
W.White – Blue
CRI ≥ 80
Angle 40°
Daylight – Red
CRI ≥ 80
Angle 40°
W.White – Red
CRI ≥ 80
Angle 40°
