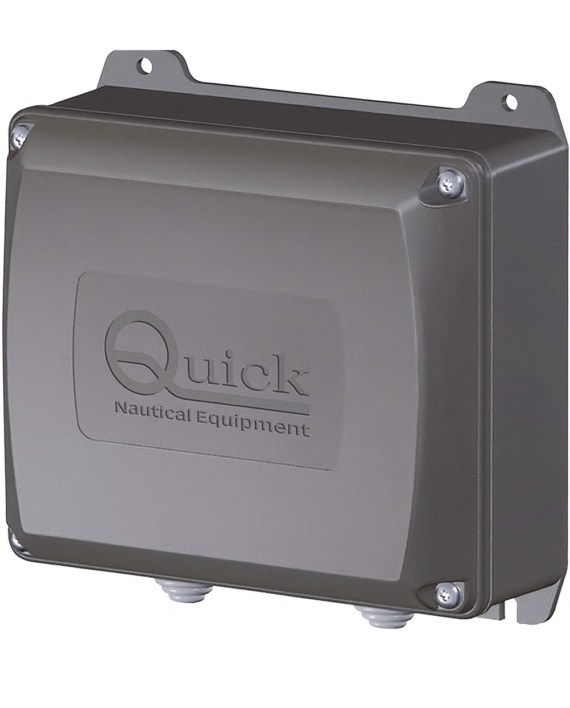

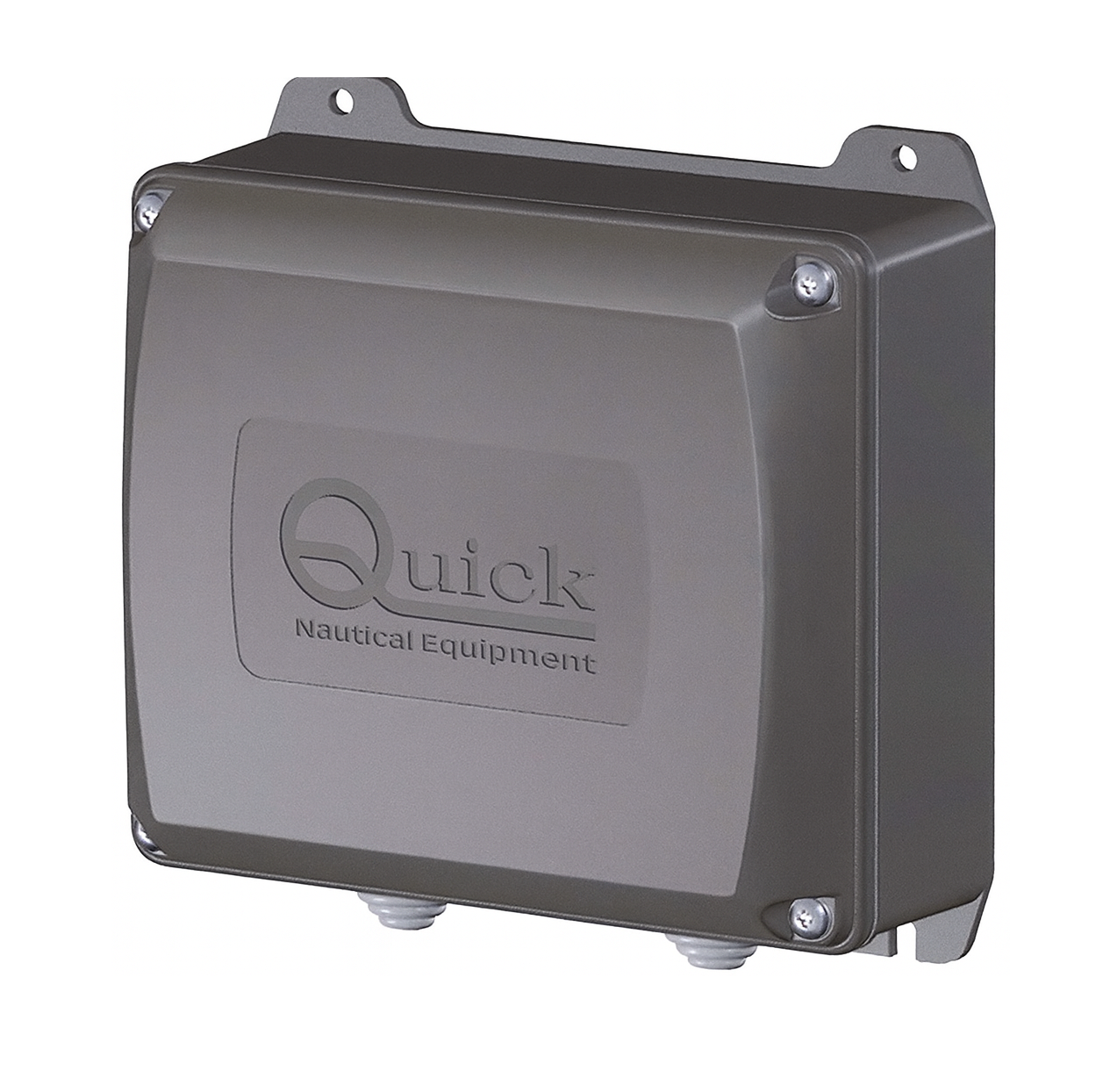

Radio control receiver – 2,4,6,8,10 & 12 channels

€231.00–€445.50 ex. VAT 19%

Clear


  • Receivers
    • Full power range (from 10.5 to 31Vdc).
    • Microcontroller-operated functions.
    • FSK modulation
    • Operating temperatures from -15°C to +70°C.
    • Indication of the system operating status, errors and problems by means of LED and seven-segment display.
    • Protection against polarity inversion.
    • Protection against low battery.
    • 50 transmitters can be stored.
    • Translation mode to activate more receivers, installed in different spots, by means of one transmitter.
    • Programmable digital filter.
    • Possible connection to an external antenna.

Ordering Information

Radio control receiver



Part No.

Description

Price EX. VAT 19%

FRRRCR020000B00

R02 Radio control receiver

– 2 channels

€ 231,00

FRRRCR040000B00

R04 Radio control receiver

– 4 channels

€ 260,50

FRRRCR060000B00

R06 Radio control receiver

– 6 channels

€ 353,00

FRRRCR080000B00

R08 Radio control receiver

– 8 channels

€ 381,50

FRRRCR100000B00

R10 Radio control receiver

– 10 channels

€ 414,00

FRRRCR120000B00

R12 Radio control receiver

– 12 channels

€ 445,50

Specifications

General specifications
Model R02 R04 R06 R08 R10 R12
Directive compliance 1995/5/CE (R&TTE) 1999/5/CE (R&TTE) 1999/5/CE (R&TTE) 1999/5/CE (R&TTE) 1999/5/CE (R&TTE) 1999/5/CE (R&TTE)
Carrier frequency 434.420 Mhz 434.420 Mhz 434.420 Mhz 434.420 Mhz 434.420 Mhz 434.420 Mhz
Modulation FSK FSK FSK FSK FSK FSK
Number of relays 2 4 6 8 10 12
Relay current carring capacity 15 A 15 A 15 A 15 A 15 A 15 A
Power supply voltage 10,5 ÷ 31 Vdc 10,5 ÷ 31 Vdc 10,5 ÷ 31 Vdc 10,5 ÷ 31 Vdc 10,5 ÷ 31 Vdc 10,5 ÷ 31 Vdc
Power absorption in stand-by mode 25 mA 25 mA 25 mA 25 mA 25 mA 25 mA
Operating temperature -15° C +70° C -15° C +70° C -15° C +70° C -15° C +70° C -15° C +70° C -15° C +70° C
Weight 300g/0.66lb 300g/0.66lb 370g/0.81lb 370g/0.81lb 370g/0.81lb 370g/0.81lb

SKU: N/A Categories: ,
