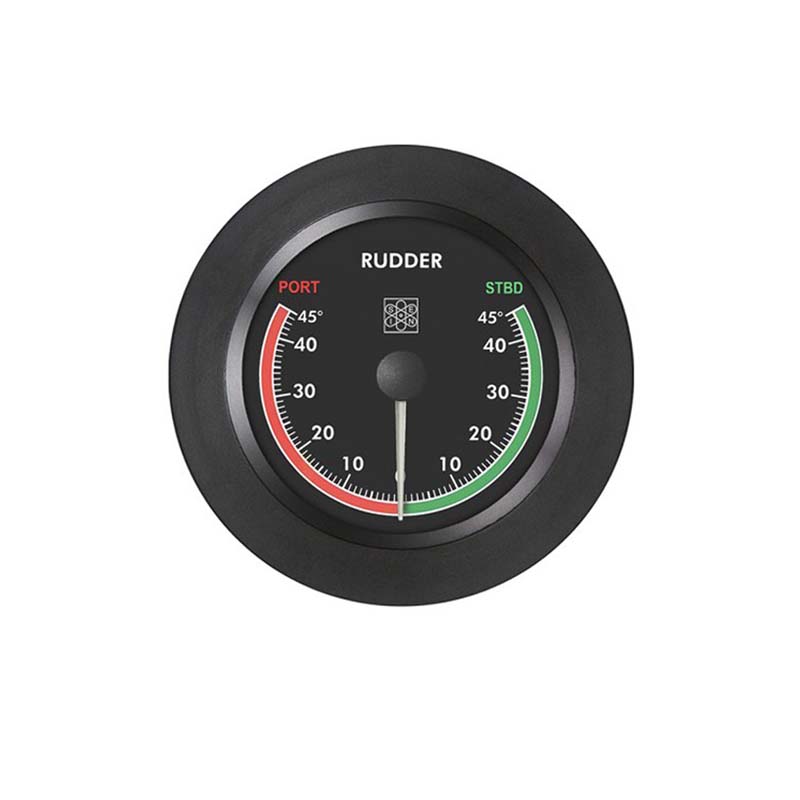

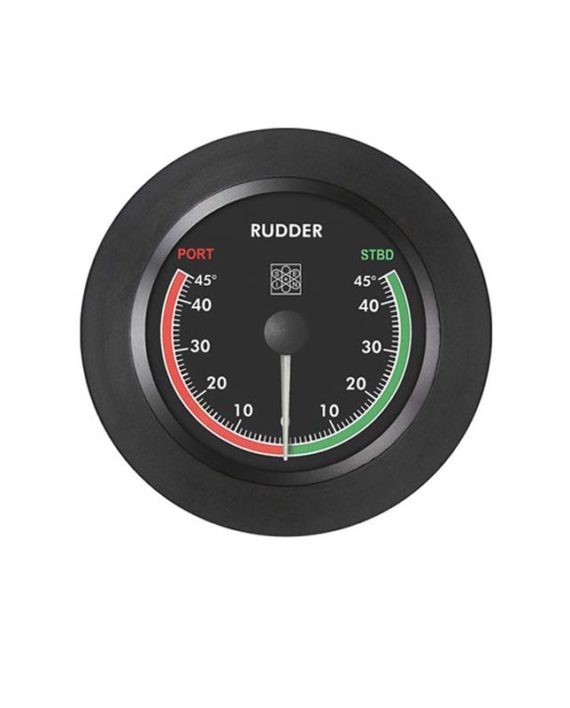

Professional analogue waterproof rudder angle indicators, available in different sizes .
These indicators have been designed with state-of-the-art technology, compatible with our TAB sensors outputs as well as CAN Bus , 4-20mA e 0-1V . These indicators use advanced “Direct Digital” microprocessor technology to grant nominal 0,3° resolution and highest durability. New LED backlight system with electronic control. Waterproof IP65 on front ; multi-voltage power supply 12-24V.
Ordering Information
Omni Link Line Rudder angle gauges ±45° Ø85mm input CAN Bus / 10-180Ω / 0-1kΩ
In Stock | Part No. | Description | Price ex. VAT 19% |
---|---|---|---|
1 | IAB20080 | RUDDER ANGLE GAUGES Ø80 mm | € 280.00 |
1 | TAB40205 | RUDDER ANGLE TRANSDUCER TAB/U/M | € 170.00 |
Specifications
General specifications | |
---|---|
Range | ±45° |
Case diameter | Ø 80 mm |
Input | CAN Bus, 4-20mA, 0-1 KΩ |
Power supply | 8-30 VDC |
Backlighting | Red LEDs (dimmable) |
Alarm lamp | Yes, 1 red LED |
Dial color | Black |
Master / Slave selection | Automatic |
Calibration | Yes, rear button activation |
Function | Rudder angle |
Reverse function | Yes, rear button activation |
Protection grade | IP67 on the front |
Connectors | 2 x 4 pins terminal block |
