€215.00 ex. VAT 19%

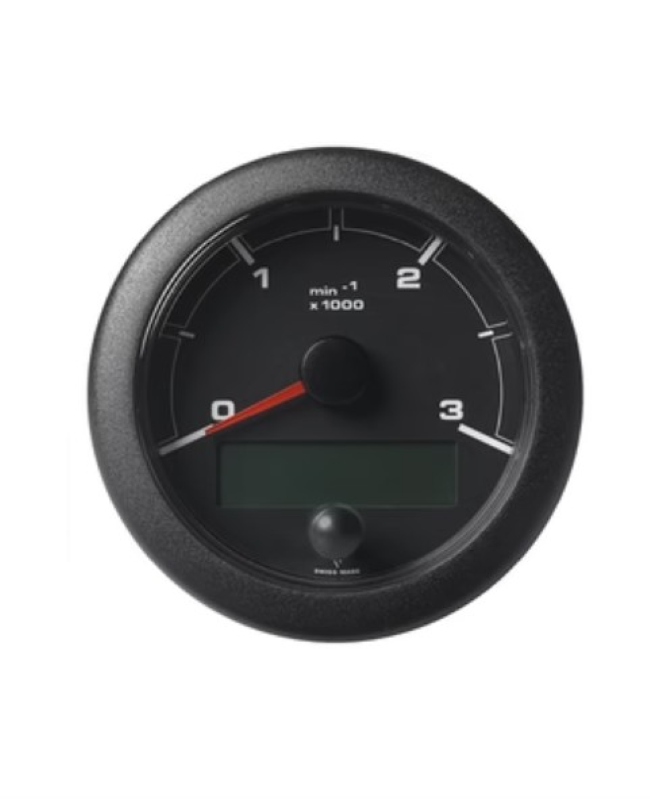

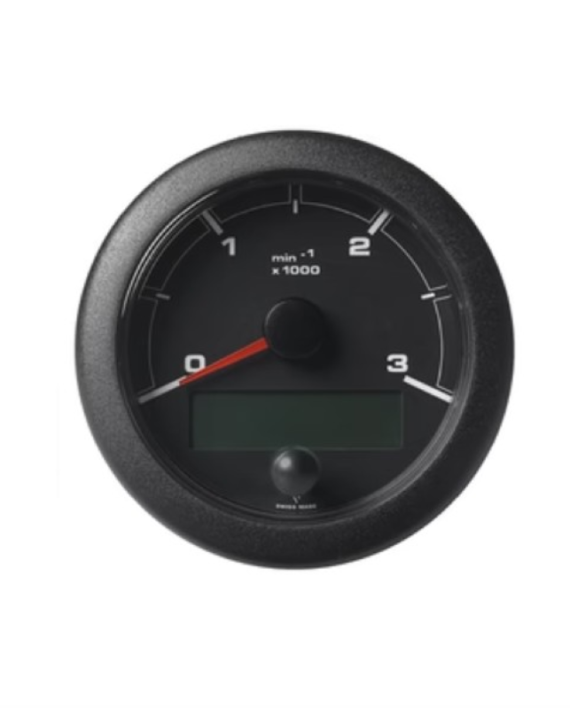

The OL Tachometer 3000 RPM (Part No. A2C1065660001) is a high-quality analog gauge designed for reliable and accurate engine speed measurement. With a sleek 85mm black bezel and clear dial design, it offers excellent readability and seamless integration into a wide range of dashboards.
The OL Tachometer 3000 RPM (Part No. A2C1065660001) is a high-quality analog gauge designed for reliable and accurate engine speed measurement. With a sleek 85mm black bezel and clear dial design, it offers excellent readability and seamless integration into a wide range of dashboards.
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| A2C1065660001 | OL Tachometer 3000RPM 85mm Black | €215.00 |
| General specifications | |
|---|---|
| Range | 0-3000 rpm |
| Case diameter | Ø 85 mm |
| Mounting hole & system | Ø85. Mounting brackets |
| Display Type | Analog needle |
| Input Signal | Compatible with standard engine speed senders |
| Backlighting | Integrated LED or incandescent (model-specific) |
| Vibration Resistance | Up to 25g |
| RQ series cover lens | Double lens anti-fog chamber |
| CR series cover lens | Glass |
| Illumination | White Led |
| Bezel Colour | Black |
| Connectors | NMEA 2000 MicrO-C / M12 , Molex MX150 |
| Power supply | 12/24V DC |
| Power consumption | ≤100 mA max, lus an additional 100 mA for each EasyLink satellite gauge connected. |
| Operating temperature | -20°C + 70°C |
| Storage Temperature | -30°C + 85°C |
| Protection | IP66 on the front |
