€6,753.00–€7,608.50 ex. VAT 19%
Heroes Windlass Series – Horizontal On-Deck Windlasses

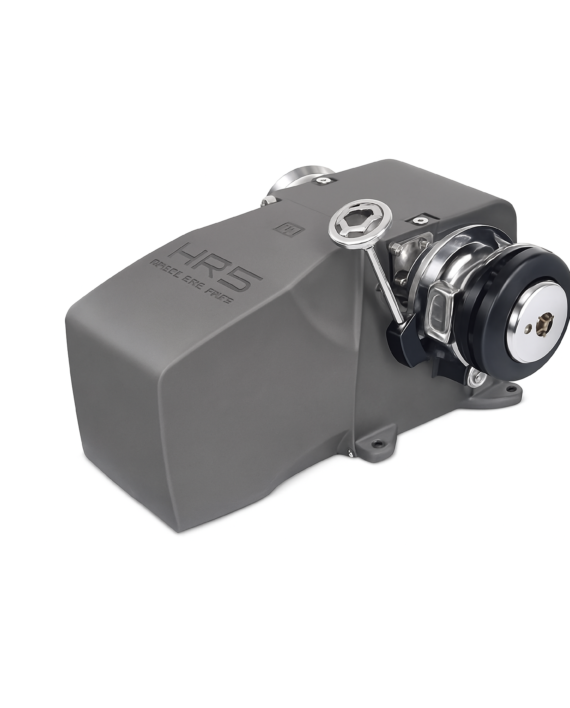

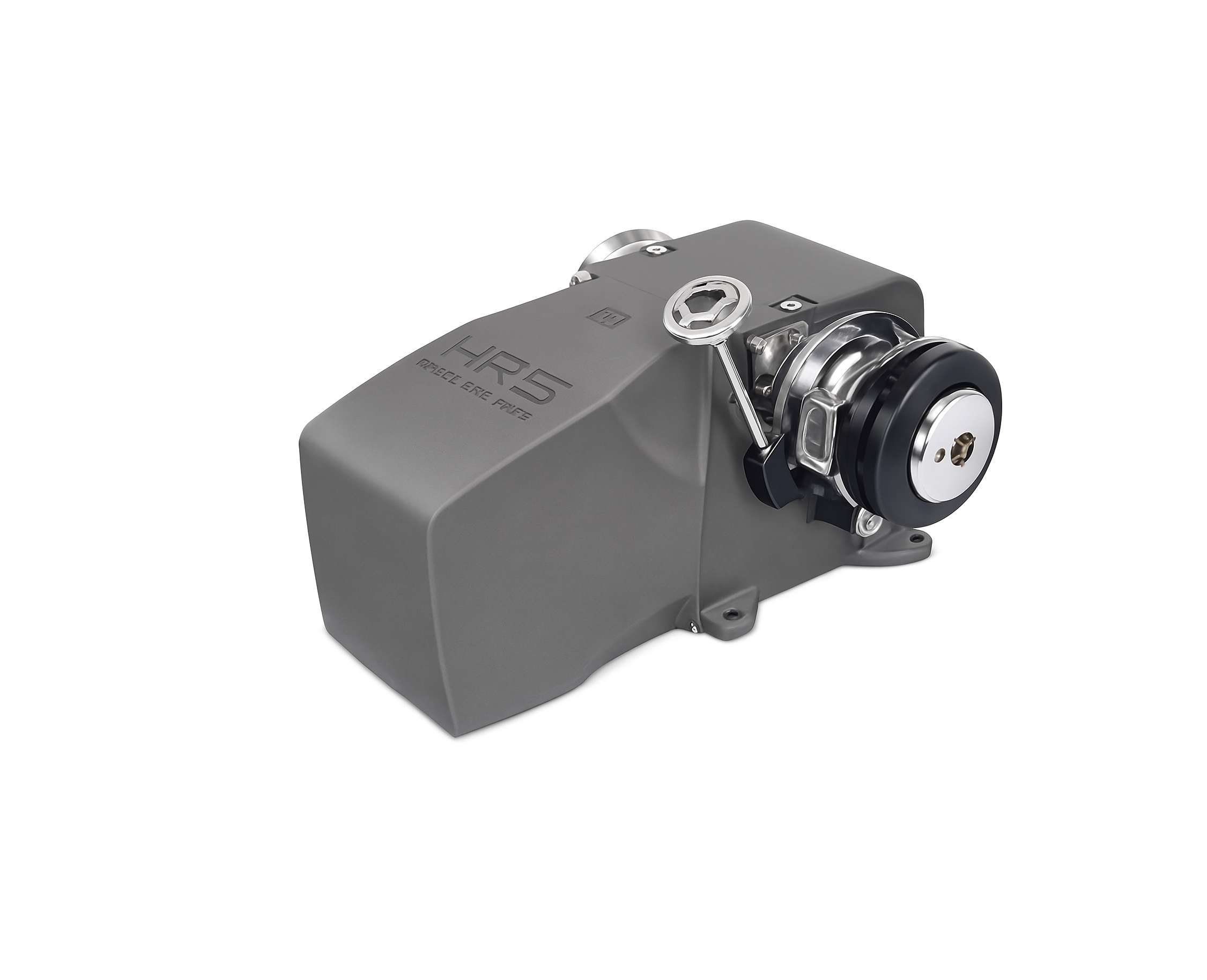

Heroes – HR5
• Horizontal on-deck windlasses
• Painted aluminim base (RAL 9010)
• With and without drum
• Rope and chain on a single gypsy
• Emergency ratchet-operated manual lift system
• Integrated solenoids unit
• Manual Free-Fall system
• Safety mechanical band brake
• IP66 watertight motor
Gypsy and Drum
Ø 150 mm / 6″21/64
Gypsy
10 mm – 3/8″ | 12/13 mm | 14 mm
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| HR5_3524DBBD | 3500W – 24V – With left gypsy and drum and right gypsy and drum | € 7,608.50 |
| HR5_3524DBBX | 3500W – 24V – With left gypsy and drum and right gypsy | € 7,136.00 |
| HR5_3524DBDX | 3500W – 24V – With left gypsy and drum and right drum | € 7,136.00 |
| HR5_3524XBBD | 3500W – 24V – With left gypsy and right gypsy and drum | € 7,136.00 |
| HR5_3524XBBX | 3500W – 24V – With left and right gypsy | € 7,271.50 |
| HR5_3524XBDX | 3500W – 24V – With left gypsy and right drum | € 7,070.00 |
| HR5_3524XDBD | 3500W – 24V – With left drum and right gypsy and drum | € 7,194.00 |
| HR5_3524XDBX | 3500W – 24V – With left drum and right gypsy | € 6,121.00 |
| HR5_3524XXBD | 3500W – 24V – With right gypsy and drum | € 7,204.50 |
| HR5_3524XXBX | 3500W – 24V – With right gypsy | € 6,753.00 |
| General specifications | |
|---|---|
| Motor Power | 3500 W |
| Motor Supply Voltage | 24 V |
| Maximum pull | 3500Kg/7716lbs |
| Maximum working load | 1500Kg/3307lbs |
| Working load | 500 Kg/1102 lbs |
| Current absorption at working load (after an initial period of use) | 145 A |
| Maximum chain speed (measurements taken with a gypsy for a 8 mm chain) | 39,2 m/min 128.6 ft/min |
| Maximum chain speed at working load (measurements taken with a gypsy for a 8 mm chain) | 19,3 m/min 63,3 ft/min |
| Weight – HR5 XD-BX / XB-DX | 76 Kg/167,5 lbs |
| Weight – HR5 DB-DX / XD-BD | 81 Kg/178,5 lbs |
| Weight – HR5 XB-BX | 83 Kg / 183 lbs |
