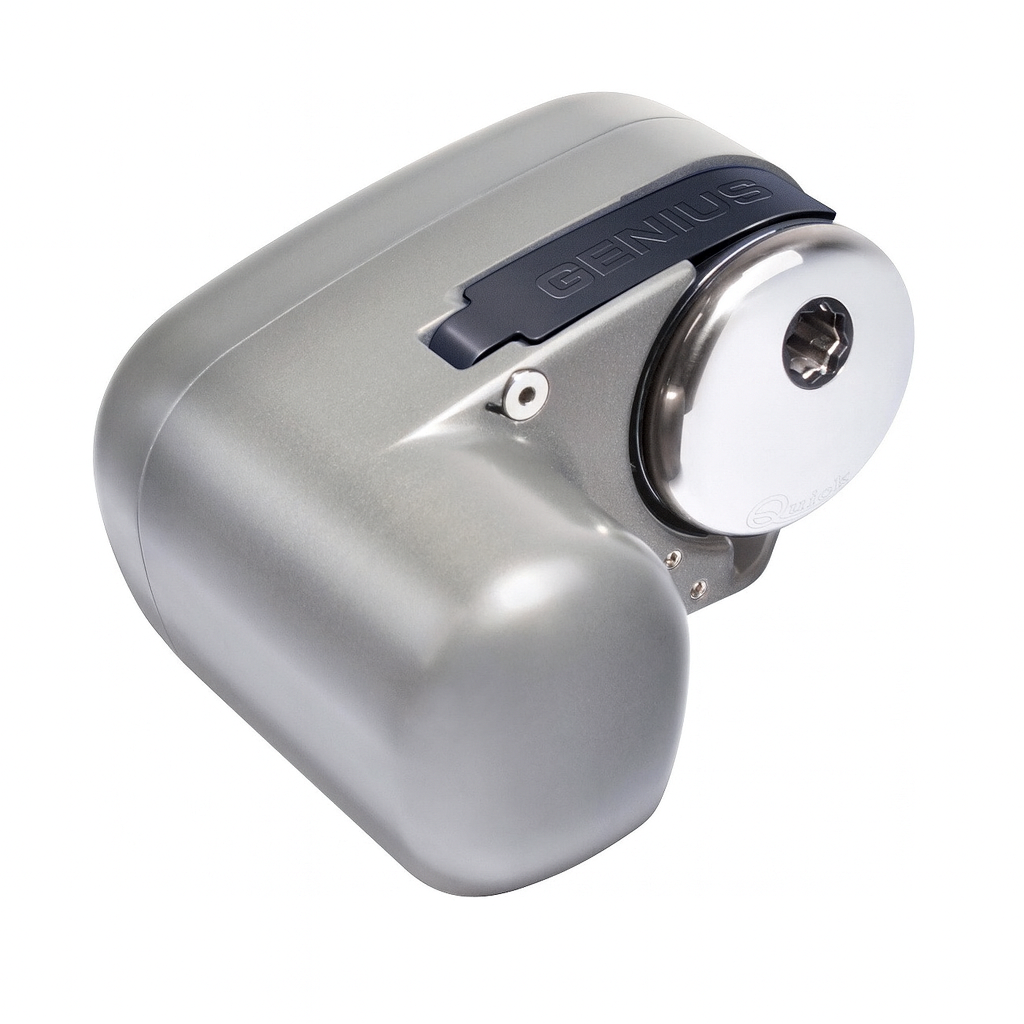

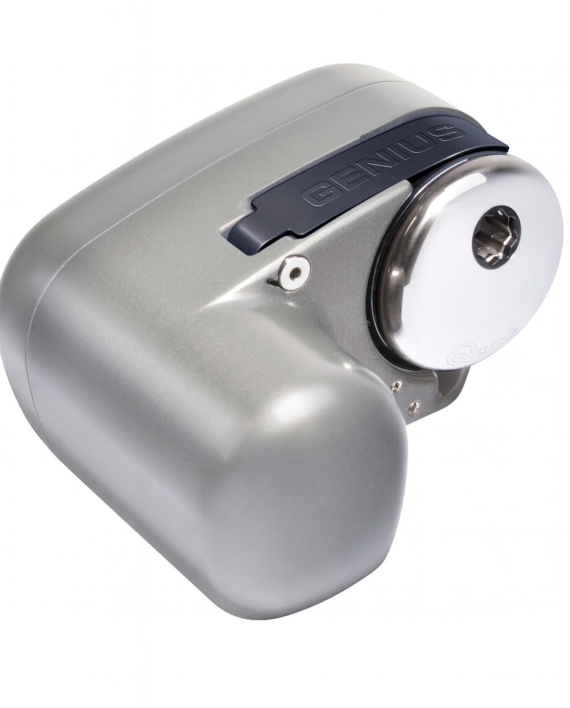

Genius – GP2
• Horizontal on-deck windlasses
• Anodized alluminium in hard oxide base
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Supplied with pressure lever
• IP66 watertight motor
• Epicyclical gearbox
GP2 FF – Automatic Free-Fall System
The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button, the windlass will release its clutch and the gypsy will freewheel.
To stop the Free-Fall, depress the up control button on the windlass; the clutch will engage stopping the gypsy, allowing retrieval of the chain.
The Free-Fall function can be bypassed to facilitate power controlled release.
Gypsy and Drum
Ø 105 mm / 4″ 9/64
Gypsy
6 mm | 7 mm – 1/4″ | 8 mm | 5/16″
Rope
1/2″ (12,7 mm)
