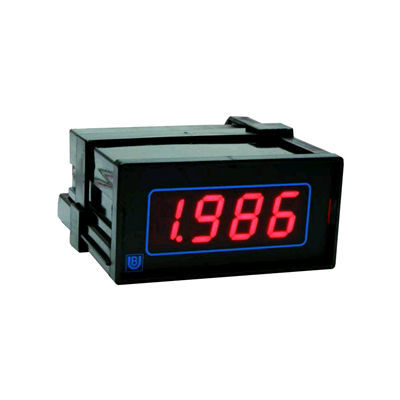

Main features
- Reading points: 1999 digit
- Display: 3.5 digits, 14.2 mm red LEDs
- Inputs in voltage, current, temperature, process, frequency
- Polarity: automatic, minus sign only (-)
- Decimal point: programmable from the front
- Update reading: 2.5 per second
- Out of range indication: “1” positive, “-1” negative
- Power supply: continuous or alternating
- Relay alarm threshold (Option 31)
- Power consumption: 4 W
- Conversion technique: double ramp integration
- Connections: screw terminals
- Dimensions: 36 x 72 x 81 mm, DIN 43700
- Frontal protection: IP40
