€3,752.00–€4,008.00 ex. VAT 19%
Dave Windlass Series – Vertical Windlasses
Dave – DV5 XY
• Vertical windlasses
• Stainless steel Aisi 316 base and anodized aluminium
• With and without drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Safety mechanical band brake
• Supplied with pressure lever
• Inspection cover
• Motor watertight to IP66
• Anodized aluminium gearbox
Gypsy and Drum
Ø 170 mm / 6″21/64
Gypsy
10 mm – 3/8″ | 12/13 mm | 14 mm
Rope
3/4″ (19 mm) | 3/4″ (19 mm) | 3/4″ (19 mm)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|

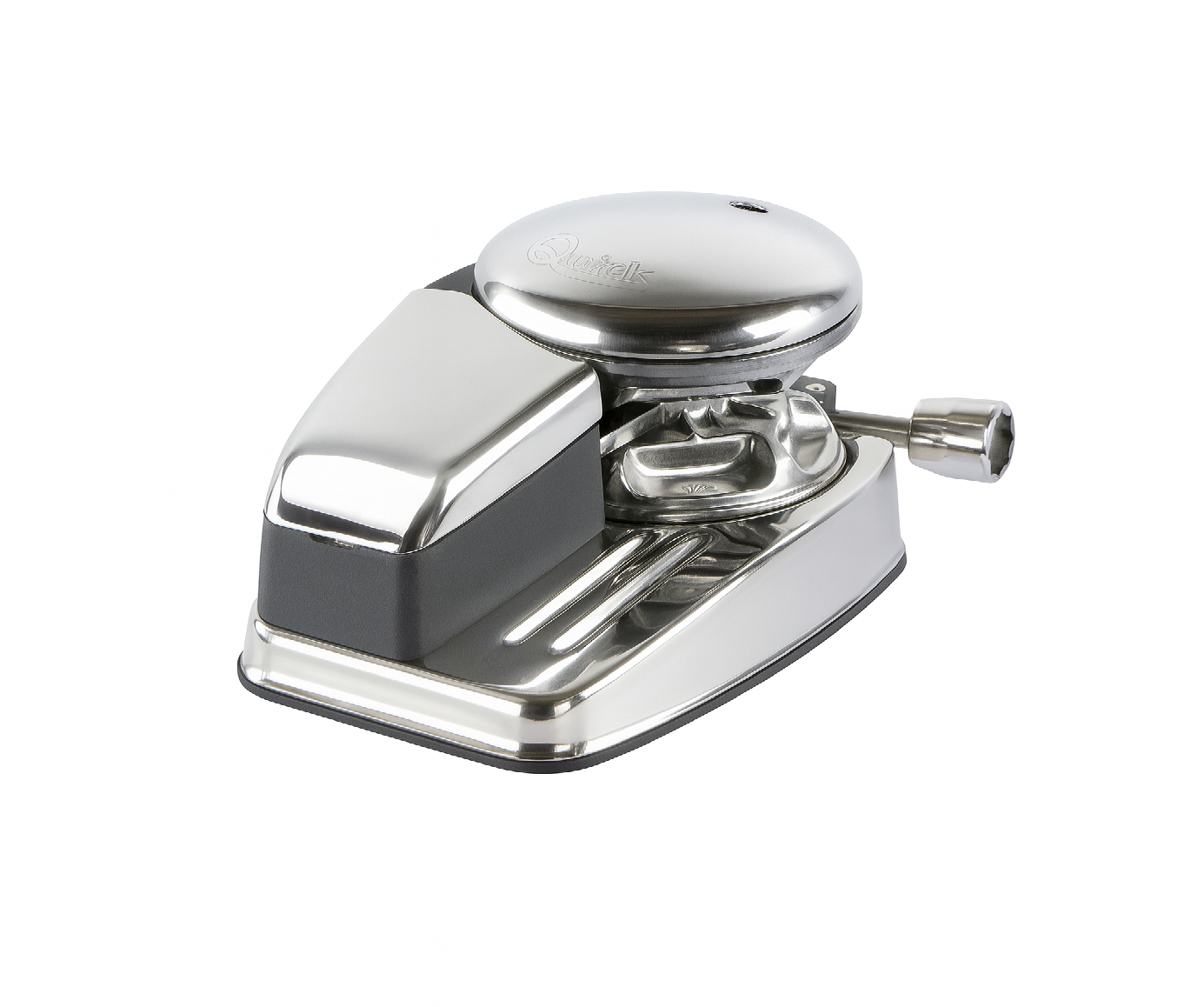

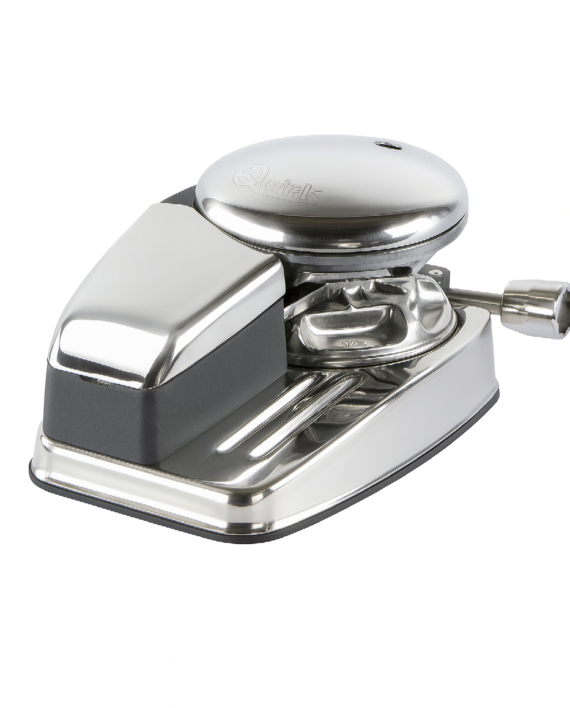

| DV5 2024X | 2000 W – 24 V – Right chain pipe | € 3,752.00 |

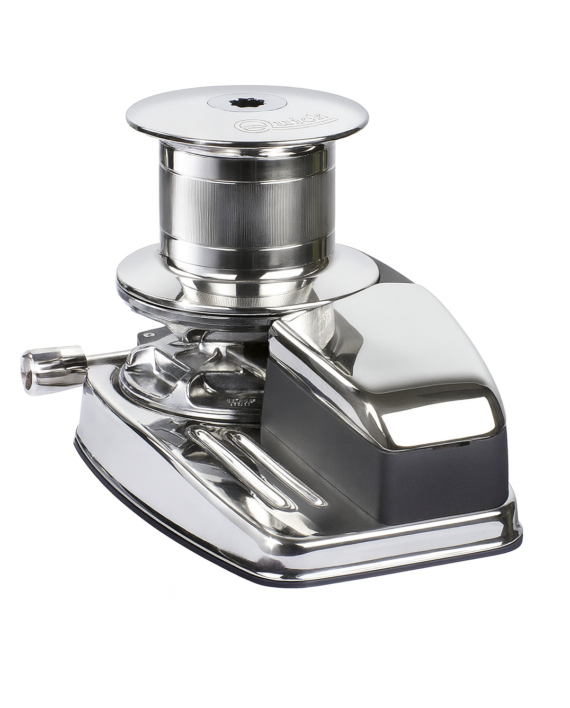

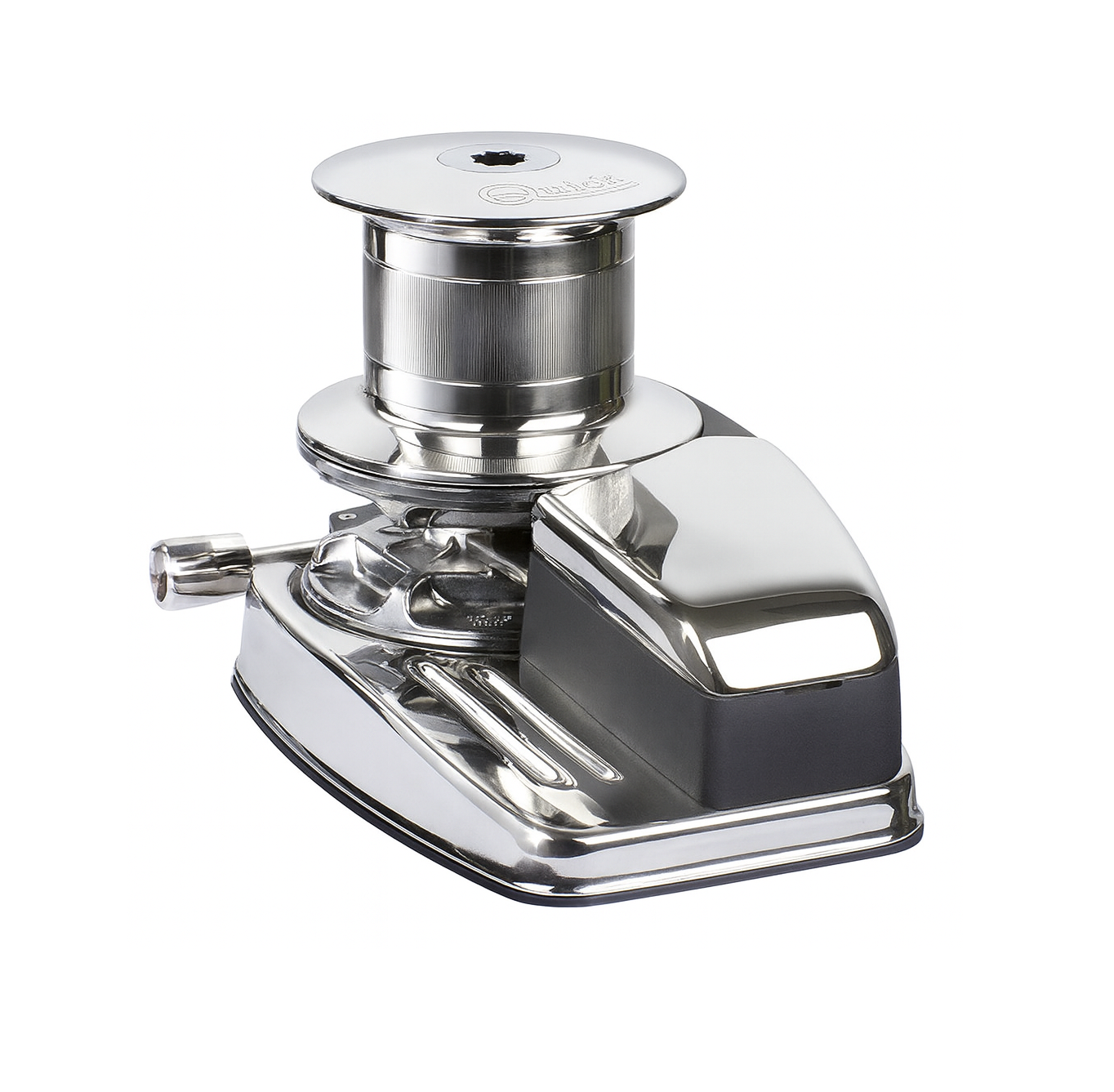

| DV5 2024DX | 2000 W – 24 V – Right chain pipe – With drum Ø 170 mm | €4,008.00 |
| General specifications | |
|---|---|
| Motor Power | 2000 W |
| Motor Supply Voltage | 24 V |
| Maximum pull | 1260 Kg / 2778 lbs |
| Maximum working load | 750 Kg / 1653 lbs |
| Working load | 250 Kg / 551 lbs |
| Current absorption at working load (after an initial period of use) | 115 A |
| Maximum chain speed | 41,2 m/min 135.2 ft/min |
| Maximum chain speed at working load | 22,3 m/min 73.2 ft/min |
| Weight (without drum) | 39,3 Kg / 86.6 lbs |
| Weight (with drum) | 42,7 Kg / 94.1 lbs |
