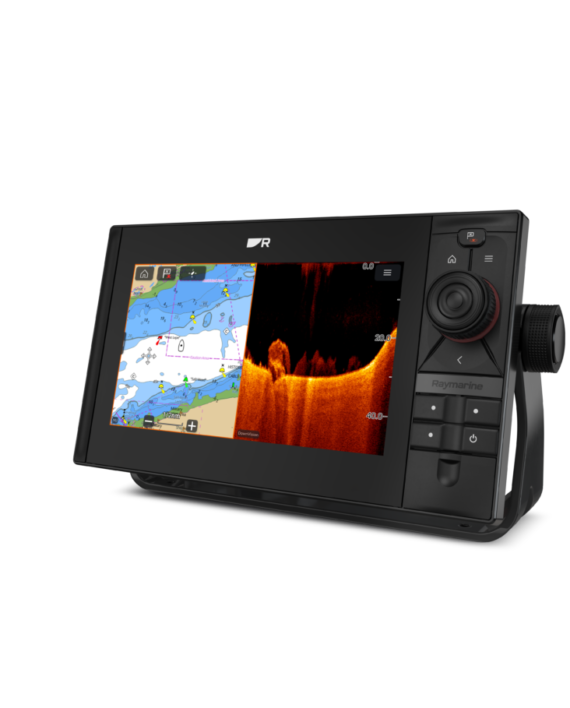

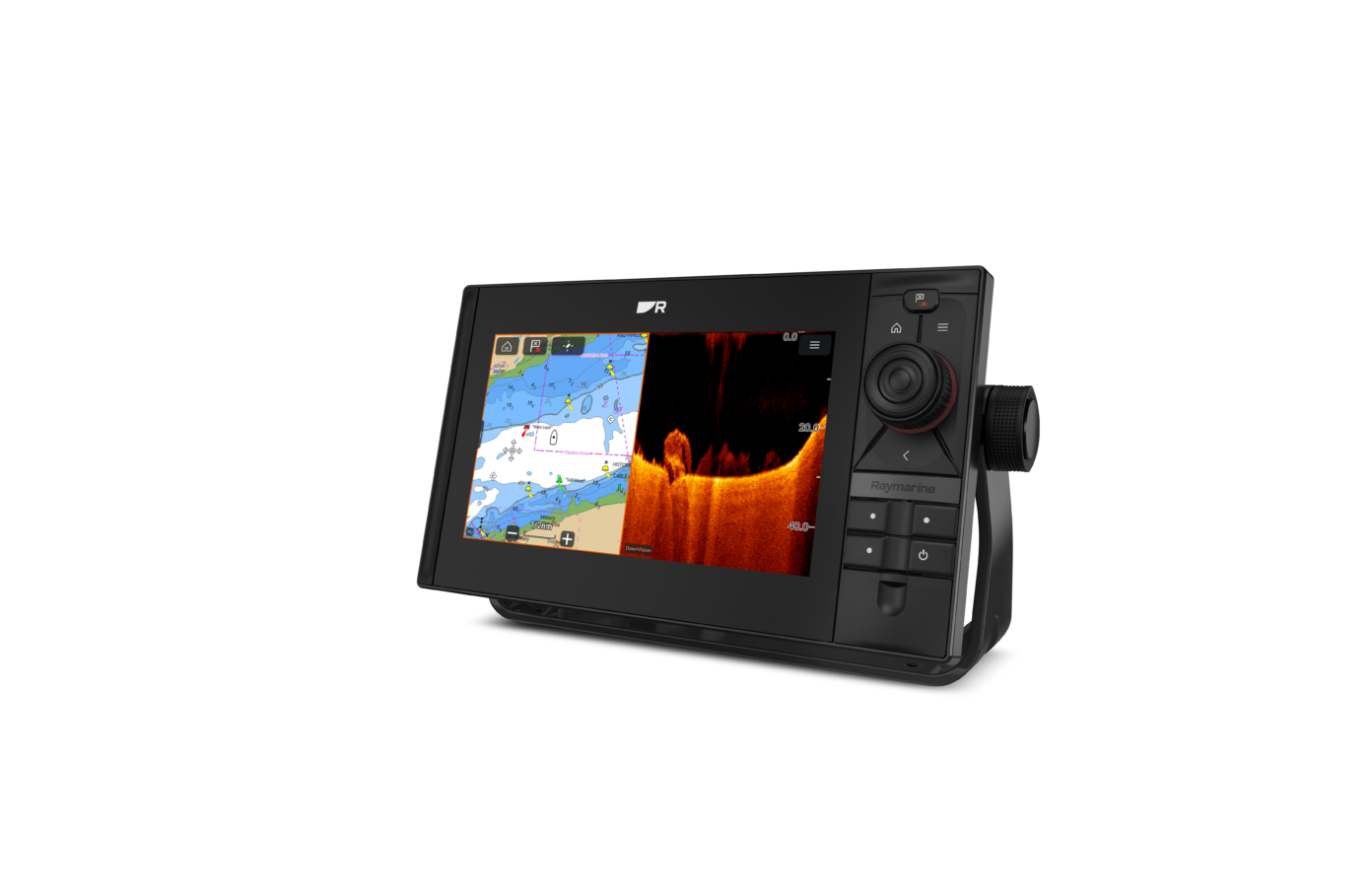

AXIOM2 Pro 9 S, HybridTouch 9″ Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S

2,545.00 ex. VAT 19%

A Trusted Crew Member

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

Power That Pushes the Limits

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.



Ready for All Conditions

Axiom 2 Pro’s HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Confident Control

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

Advanced Sailing Tools

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Ordering Information

AXIOM2 Pro 9 S, HybridTouch 9″ Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S

AXIOM 2 9 Pro-S
E70653 AXIOM2 Pro 9 S, HybridTouch 9″ Multi-function Display with integrated High CHIRP Conical Sonar for CPT-S € 2.545,00

Specifications

General specifications
Display Size 9″ IPS Optically Bonded LCD
Display Resolution 1280 x 720 HD
Display Type Multitouch
Brightness 1300 nits / 1300 cd/m2
Viewing Angle Top 88° / Bottom 88° / Left 88° / Right 88°
Dimensions 329.5 x 186.2 x 234.9 mm (including cables)
Weight 1.52 kg
Mounting Top, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C)
Voltage 12V and 24V DC (8 V to 32 DC)
Power Consumption (Full brightness) Axiom Pro 9:  33.12w

SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou – 10Hz 72 Channel | External Accessory: GA200 (A80589)
Sonar Type – Built-in Pro S model – High CHIRP*
Sonar Connections S variant*= 25pin connector used only with CPT-S transducers
*Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.
External Sonar – RayNet
Sonar Depth CHIRP Sonar = 900 feet (274 m)
DownVision™ = 600 feet (183 m)
External Sonar Yes – CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes – Quantum, Digital, Magnum and Cyclone
AIS Yes – N2K compatible
Autopilot Control Yes – Evolution Autopilot
Thermal Night Vision Yes – IP or Analogue
Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras
Weather GRIB View – Free GRIB viewer and Theyr Ltd Subscription | SiriusXM – N. America Only
Audio N2K / *Bluetooth / *SiriusXM Audio
Digital Switching Yes – Yachtsense, Empirbus & C-Zone compatible
Remote Control RMK-10 (A80438) & RCU-3 (E62351)
NETWORKING
Ethernet 2 x 10/100/1000 Mbits/ Network (RayNet)
NMEA0183 1 Transmit / 2 Receive
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box)
USB 1 x USB microAB (rear – charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi WiFi – 802.11 a / b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
