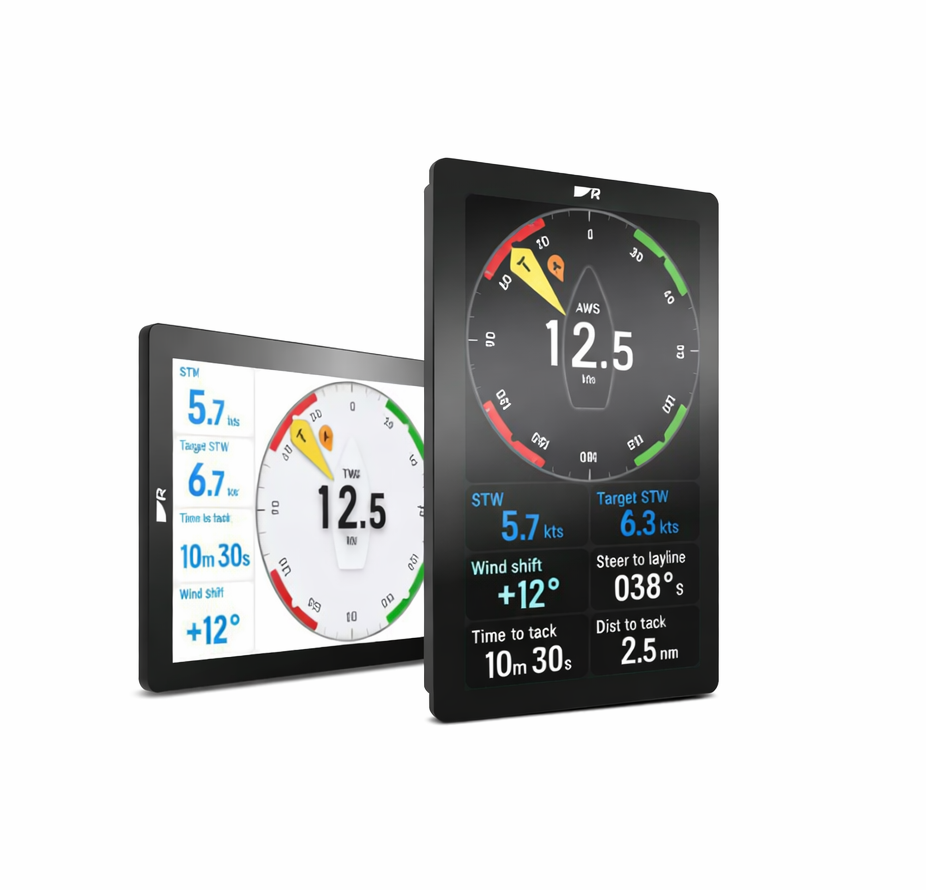

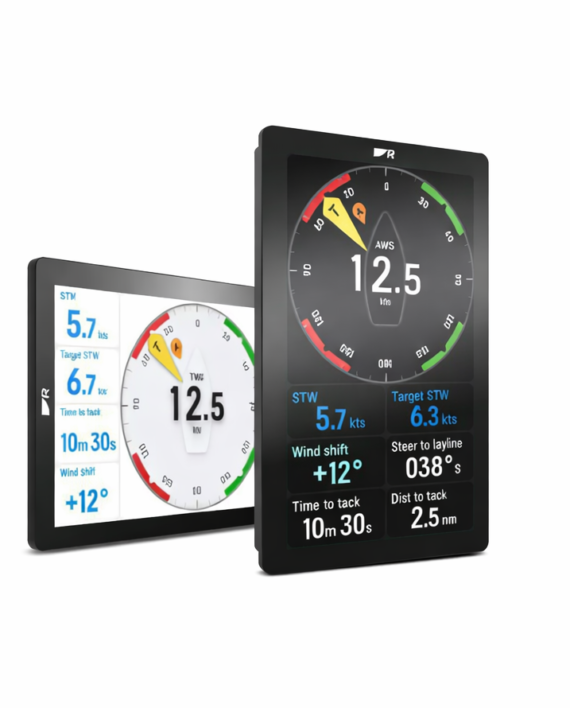

Alpha 9” Display (E70650)

1,995.00 ex. VAT 19%

A bright, high-resolution 9″ touchscreen display designed for clear viewing of sailing and navigation data. Built for marine conditions and seamlessly integrated with Raymarine Axiom systems, it delivers reliable performance and excellent visibility on board.

A bright, high-resolution 9″ touchscreen display designed for clear viewing of sailing and navigation data. Built for marine conditions and seamlessly integrated with Raymarine Axiom systems, it delivers reliable performance and excellent visibility on board.

Key Features:

• Large 9″ sunlight-readable touchscreen for superb visibility
• High-resolution display with clear, crisp graphics
• Wide viewing angles from any helm position
• Customisable sailing, navigation, and performance screens
• Seamless integration with Raymarine Axiom chartplotters
• Daisy-chain up to 4 displays with a single cable
• Rugged, marine-grade design built for offshore conditions
• Simple installation and intuitive interface

Ordering Information

Part No. Description Price ex. VAT 19%
E70650 Alpha 9″ Performance Display € 1.995,00

Specifications

Screen size 9″ IPS TFT LCD
Resolution 1280× 720
Supply voltage 12 / 24 V DC (10.8-32 V range)
Max power consumption ~12 W
Current draw ~1.02 A @ 12 V / ~0.52 A @ 24 V
Weight ~1.18 kg (2.60 lbs)
Connections RayNet Ethernet & daisy-chain
Operating temperature –25°C to +55°C
Waterproof rating IPx6 & IPx7
Relative humidity Up to 93% max
