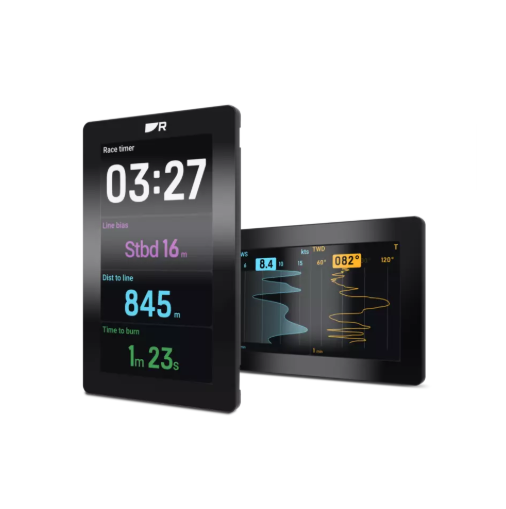

Alpha 7” Display (E70649)

€1,195.00 ex. VAT 19%

The Alpha 7″ Display (E70649) is a clear and easy-to-use marine display. It features a bright 7-inch screen that is easy to see in sunlight and a durable design suitable for marine environments. Ideal for boats and yachts, it provides reliable performance for everyday navigation and onboard monitoring.

Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom’s connected transducers and NMEA2000/SeaTalk NG devices.

Key Features:

  • Bright 7″ sunlight-readable touchscreen

  • Wide viewing angles for clear visibility from anywhere onboard

  • Displays essential sailing, navigation, and performance data

  • Seamless integration with Raymarine Axiom chartplotters

  • Customisable data layouts and graphics

  • Modern, slim design with marine-grade durability

  • Ideal for yachts and sailing vessels

Ordering Information

Part No. Description Price ex. VAT 19%
E70649 Alpha 7″ Performance Display € 1.195,00

Specifications

Screen size 7″ IPS TFT LCD
Resolution 1024 × 600
Supply voltage 12 / 24 V DC (10.8-32 V range)
Max power consumption ~10 W
Current draw ~0.84 A @ 12 V / ~0.43 A @ 24 V
Weight ~0.72 kg (1.59 lbs)
Connections 1×Daisy-chain  &  1×Power/RayNet Ethernet
Operating temperature –25°C to +55°C
Waterproof rating IPx6 & IPx7
Relative humidity Up to 93% max
