Ordering Information

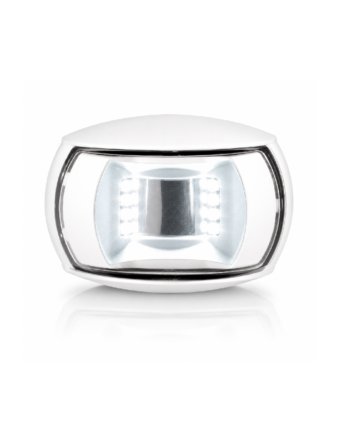

ACTION 10W Touch LED Cortesy Light
|
|
SPECIFICATIONS | |
---|---|
Power type | Constant Voltage |
Light source | 0 x HIGH LUMINOSITY |
Supply | 9 ÷ 16 / 18 ÷ 32 Vdc |
Power consumption | 10W |
Current consumption | 0.32 A @ 32V |
Average lifetime | 50,000 h |
IP security degree | 66 |
DIMENSIONS | |
---|---|
Frame | RECT. 5 1/2″ x 4 9/16″ |
Recess | 1/2″ (Thickness) |
Weight | 170gr |
DESIGN | |
---|---|
Frame Material | Plastic |
Finishing | White 9010 |
Light colours | Daylight / Daylight-Red |
Mounting | Screws |
Switch | Yes |
PHOTOMETRIC DATA | |
---|---|
Daylight | 3800-4100 °K |
CRI | ≥ 80 |
Angle | 100° |
Light flow | 630 lm |
Ligthness – distance 1 m | Ø 2.26 m 266.1 lux |
Ligthness – distance 2 m | Ø 4.51 m 66.5 lux |
Ligthness – distance 3 m | Ø 6.77 m 29.6 lux |
Daylight-Red | |
CRI | ≥ 80 |
Angle | 100° |
Light flow | 630 lm |
Ligthness – distance 1 m | Ø 2.26 m 266.1 lux |
Ligthness – distance 2 m | Ø 4.51 m 66.5 lux |
Ligthness – distance 3 m | Ø 6.77 m 29.6 lux |
