Ordering Information
ACTION 10W LED Cortesy Light
| Part No. | Description | Price ex. VAT 19% |
| FASP3112011CA00 |
L-ACTION LED DAYLIGHT 10W 12/24V 1P |
€85,00 |
ACTION 10W Led Ceiling Light
€85.00 ex. VAT 19%

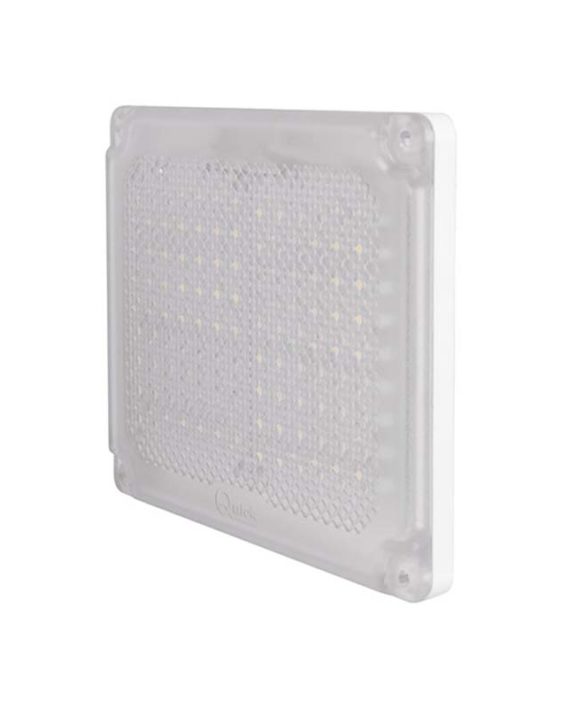

Ceiling LED lamp with rectangular frame. White plastic frame. Compartment light. Installation on ceiling or wall.
Specifications
| SPECIFICATIONS | |
|---|---|
| Power type | Constant Voltage |
| Light source | 0 x HIGH LUMINOSITY |
| Supply | 9 ÷ 16 / 18 ÷ 32 Vdc |
| Power consumption | 10W |
| Current consumption | 0.32 A @ 32V |
| Average lifetime | 50,000 h |
| IP security degree | 66 |
| DIMENSIONS | |
|---|---|
| Frame | RECT. 5 1/2″ x 4 9/16″ |
| Recess | 1/2″ (Thickness) |
| Weight | 170gr |
| PHOTOMETRIC DATA | |
|---|---|
| Daylight | 3800-4100 °K |
| CRI | ≥ 80 |
| Angle | 100° |
| Light flow | 630 lm |
| Ligthness – distance 1 m | Ø 2.26 m 266.1 lux |
| Ligthness – distance 2 m | Ø 4.51 m 66.5 lux |
| Ligthness – distance 3 m | Ø 6.77 m 29.6 lux |
