€8,495.00–€9,495.00 ex. VAT 19%
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
Cyclone radars are available with 3, 4- and 6-foot array spans options and two high-power output options
Cyclone Pro 110 Watt (12 kW Magnetron equivalent)
| CYCLONE OPEN ARRAY ANTENNA PACKS |
| T70494 | Cyclone Pro 110 Watts 3ft Open Array Radar with 15m Cables | € 8.495,00 |

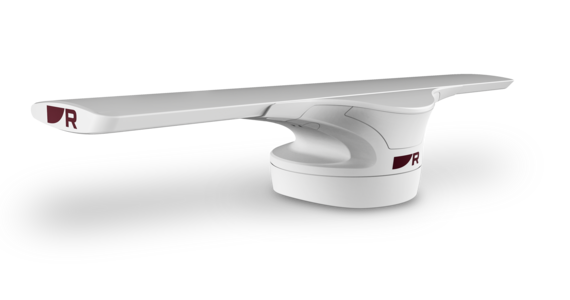

| T70495 | Cyclone Pro 110 Watts 4ft Open Array Radar with 15m Cables | € 8.995,00 |
| T70496 | Cyclone Pro 110 Watts 6ft Open Array Radar with 15m Cables | € 9.495,00 |
| Antenna Size | 3 / 4 / 6 Foot Array | |
| Max Range Scale | 72 Nm | 96 Nm |
| Rotation Speed | 12 / 24 / 36 / 48 / 60 rpm | |
| Boot Up time | 40 seconds | |
| Standy to Transmit | Less than 5 seconds | |
| Power Connection | 1x Power connector | |
| Data Connection | 1x RayNet connector | |
| Transmitter Frequency | 9370, 9400, 9430 MHz (User Selectable) | |
| Receiver Characteristic | Linear | |
| Receiver Noise | Less than 5 dB | |
| Peak Power Output | 55 w | 110 w |
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc |
Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc |
| Power Consumption (Typical) | 70 W | 95 W |
| Power Consumption (Max) | 170 W | 195 W |
| Power Consumption (Standby) | 30 W | 30 W |
| Antenna | 3 Ft | 4 Ft | 6 Ft |
| Beamwidth (vertical) | 25° | 25° | 25° |
| Beamwidth (horizontal) | 2.83° | 1.99° | 1.32° |
| Polarization | Horizontal | ||
| Length | 1031 mm / 40.59 in | 1336 mm / 52.59 in | 1945 mm / 76.57 in |
| Weight | 7 Kg / 15.4 lb | 9 Kg / 19.84 lb | 12 Kg / 26.45 lb |
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Waterproof Rating | IPX6 |
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum Wind Speed | 100 Kts |
