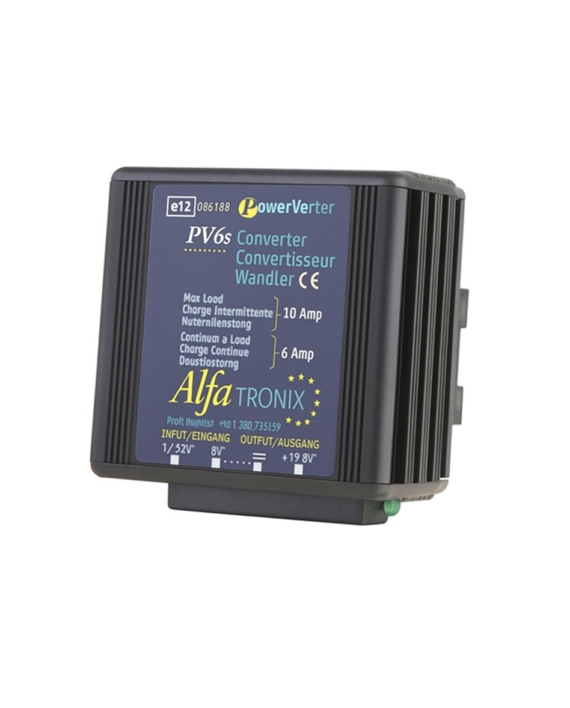

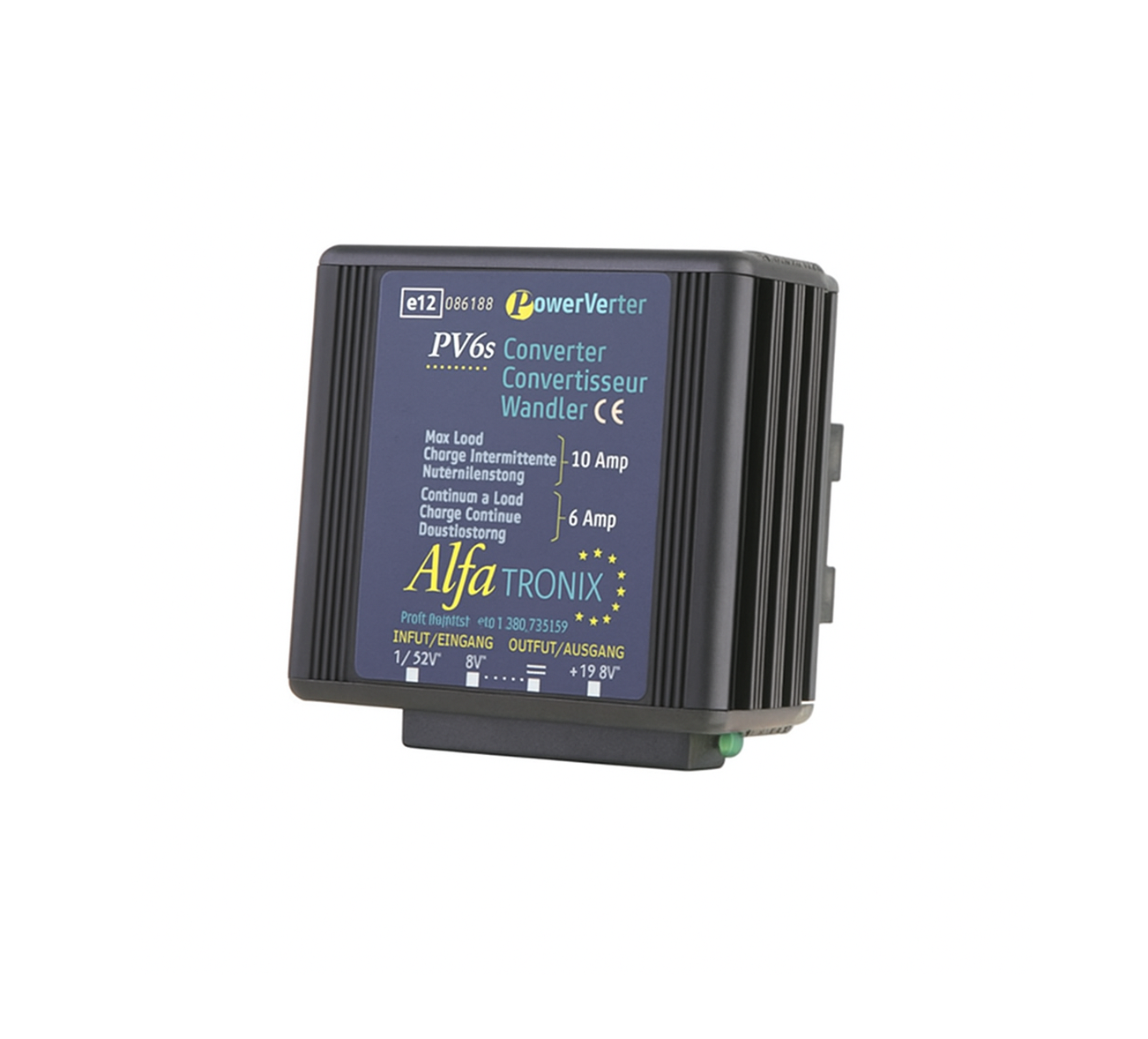

24v-12v 6/10 amp, Switch mode Power Voltage Converter
€61.64 ex. VAT 19%
Features
o Cool running
o Power conversion efficiency typically 93 percent
o Low-mass, Surface Mount Technology components for small size and resistance to vibration
o Tamper proof, marine grade aluminum case sealed with nylon caps
o Low off load current – less than 10mA
o Quick fit installation clip, fixed in three points to allow mounting on uneven surfaces
o True power conversion, not just a voltage dropper
Ordering Information
24v-12v 6/10 amp, Switch mode Power Voltage Converter
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| PV6s | 24v-12v 6/10 amp, Switch mode Power Voltage Converter | € 61.64 |
Specifications
| General specifications | |
|---|---|
| Model | PV6s |
| Max Load Current Continuous/Intermittent | 6A/10A |
| Case Dimensions | 89 x 87 x 50 mm |
| Weight | 270 g |
| Normal Input Voltage | 17-32 VDC |
| Output Voltage | Half of input, never to exceed 14.4 VDC |
| Off Load Current | < 10mA |
| Mean Time Between Failures | 162 years (HRD4) |
| Normal Operating Temps | -25°C to +30°C |
| Connections | 4 push-on 6.5mm connectors |
| Environmental protection | Dust, water and impact to IPS33 |
