€102.00–€155.50 ex. VAT 19%

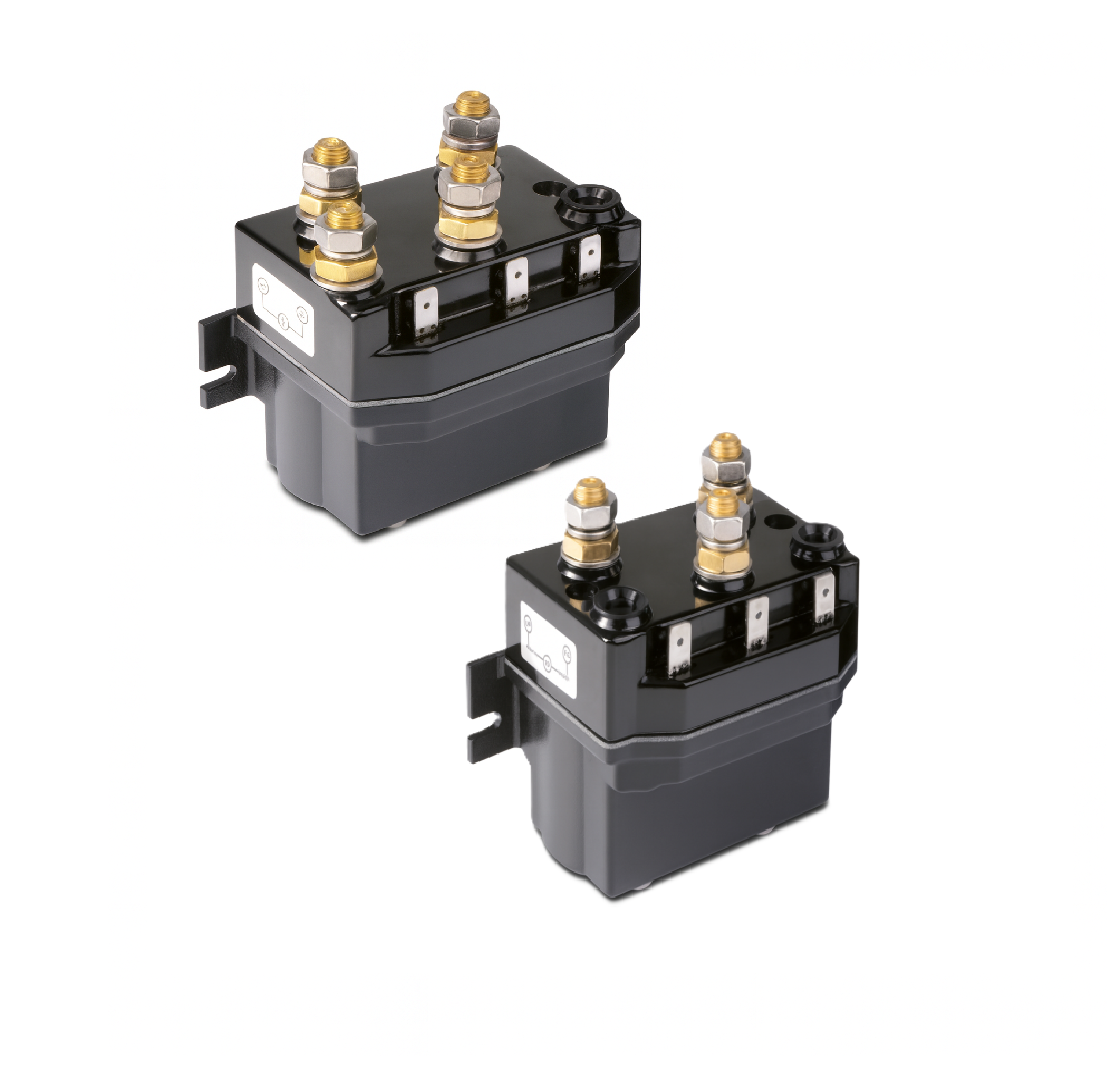

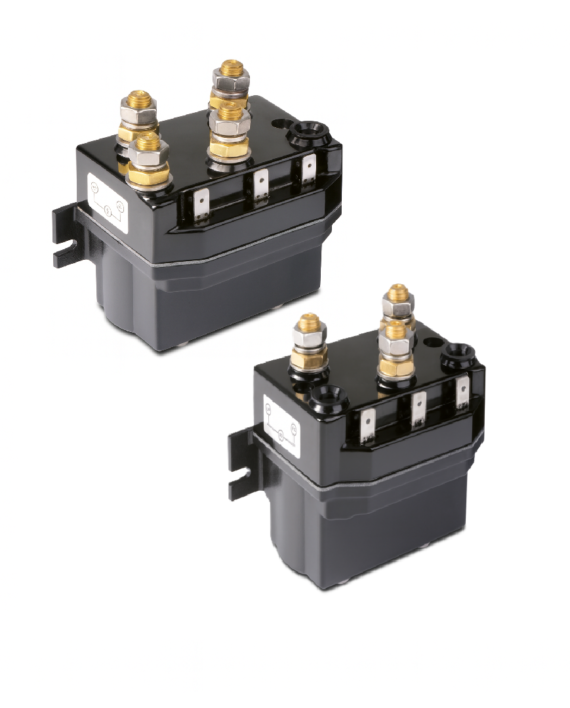

Contactor units and Reversing contactor units
T6315-12 • T6315-24
T6415-12 • T6415-24
T6315 and T6415 are able to operate electric motors for windlasses and capstans.
Thanks to their external connections, they are very easy to install.
Degree of protection IP66 (Excluding terminals)
| Part No. | Description | Price ex. VAT 19% |
|---|---|---|
| T6315-12 | Solenoids unit – 150A – 12V – IP66 (replaces T501 – T510) | € 102.00 |
| T6315-24 | Solenoids unit – 150A – 24V – IP66 (replaces T502 – T520) | € 102.00 |
| T6411-12 | Reversing solenoid unit – 115A – 12V – IP66 | € 102.00 |
| T6415-12 | Reversing solenoids unit – 150A – 12V – IP66 (replaces T503-T530) | € 155.50 |
| T6415-24 | Reversing solenoids unit – 150A – 24V – IP66 (replaces T504-T540) | € 129.00 |
| General specifications | ||||
|---|---|---|---|---|
| Models | T6315-12 | T6315-24 | T6415-12 | T6415-24 |
| Maximum power of the windlass/capstan motor | 2500 W | 3500 W | 2500 W | 3500 W |
| Max contact voltage | 48 Vdc | 48 Vdc | 48 Vdc | 48 Vdc |
| Interruption capacity | 800 A at 48 Vdc | 800 A at 48 Vdc | 800 A at 48 Vdc | 800 A at 48 Vdc |
| Working intermittent current (50% of work cycle) (Ie) |
150 A | 150 A | 150 A | 150 A |
| Coil rated voltage | 12 Vdc | 24 Vdc | 12 Vdc | 24 Vdc |
| Recommended fuse | 2,5 A Fast | 1,6 A Fast | 2,5 A Fast | 1,6 A Fast |
| Degree of protection | IP66 | IP66 | IP66 | IP66 |
| Weight | 850 g 1,87 lb |
850 g 1,87 lb |
980 g 2,16 lb |
980 g 2,16 lb |
