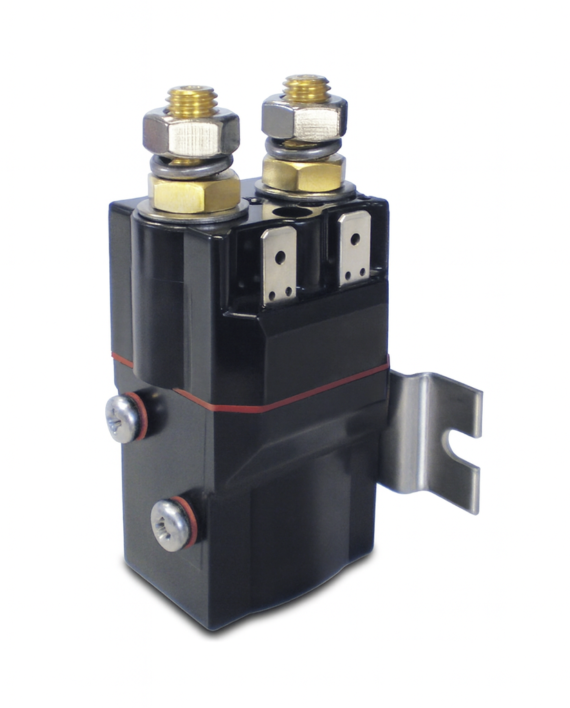

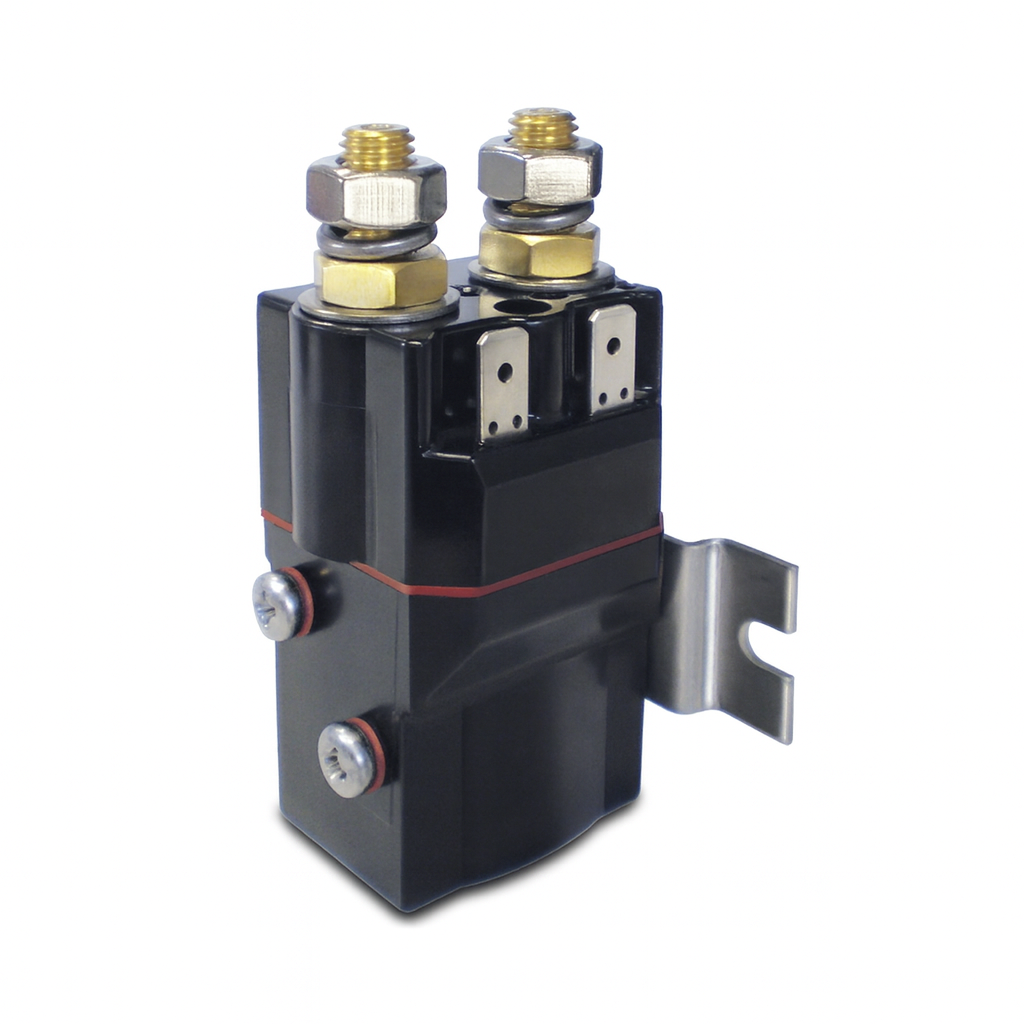

Contactor
T6215-12 • T6215-24
The contactor T6215 is able to operate electric motors for windlasses and capstans.
Thanks to its external connections, it is very easy to install.
Degree of protection IP66 (excluding terminals)
Contactor
T6215-12 • T6215-24
The contactor T6215 is able to operate electric motors for windlasses and capstans.
Thanks to its external connections, it is very easy to install.
Degree of protection IP66 (excluding terminals)
Part No. | Description | Price ex. VAT 19% |
---|---|---|
T6215-12 | Solenoids unit – 150A – 12V – IP66 | € 54.00 |
T6215-24 | Solenoids unit – 150A – 24V – IP66 | € 61.00 |
General specifications | ||
---|---|---|
Model Contactor | T6215-12 | T6215-24 |
Max Contact Voltage | 48 Vdc | 48 Vdc |
Interruption Capacity | 500 A at 48 Vdc | 500 A at 48 Vdc |
Working intermittent current (50% of work cycle) (Ie) |
150 A | 150 A |
Coil rated voltage | 12 Vdc | 24 Vdc |
Degree of protection | IP66 | IP66 |
Weight | 240 g / 0,53 lb | 240 g / 0,53 lb |
